Hybrid Solar Inverter 6.2 kW 48 V Output 220/230 V AC Charging 120 A and PV Array 6500 W 60-500 V DC Parallel 12 Units White with WiFi Module
You already have the maximum available quantity in your cart.
The Hybrid Solar Inverter ISolar SMG III 6.2KP WIFI offers a power output of 6.2 kW for 48 V battery systems with an output voltage of 220 or 230 V AC. The maximum solar charging current reaches 120 A, and the photovoltaic array can have a power of up to 6500 W. The MPPT voltage range covers 60 V DC to 500 V DC, allowing you to connect panels in longer series. The system can be expanded with parallel operation of up to 12 units in single or three-phase configurations. The white casing with an orange stripe features a circular panel with an LCD display, and the package includes a WiFi module with a cable.
Features:
- Power 6.2 kW — solution for 48 V battery system in a home setup.
- Output Voltage 220/230 V AC — powering standard appliances.
- Solar Charging Current 120 A — maximum current for charging batteries from the sun.
- PV Array Power 6500 W — maximum power of connected panels.
- MPPT Range 60-500 V DC — voltage window for photovoltaic array.
- Parallel Operation — up to 12 units in single-phase and three-phase configurations.
- WiFi Module — dongle with connecting cable included in the package.

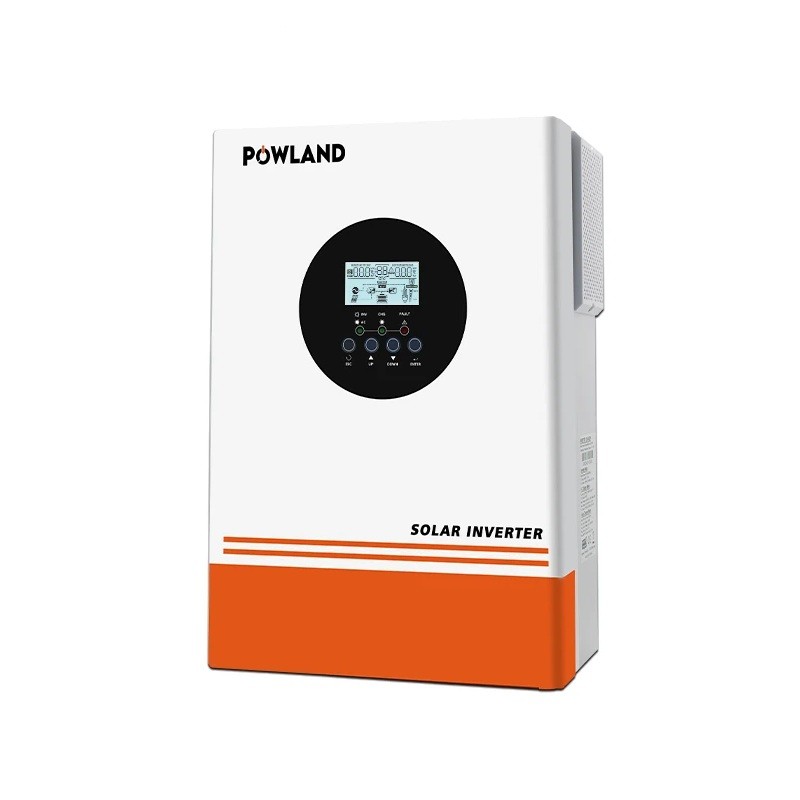

- LCD Display — graphical representation of system status on the circular panel.
- Control Buttons — ESC, UP, DOWN and ENTER below the display for settings.
- LED Indicators — PV, CHG and FAULT lights above the buttons.

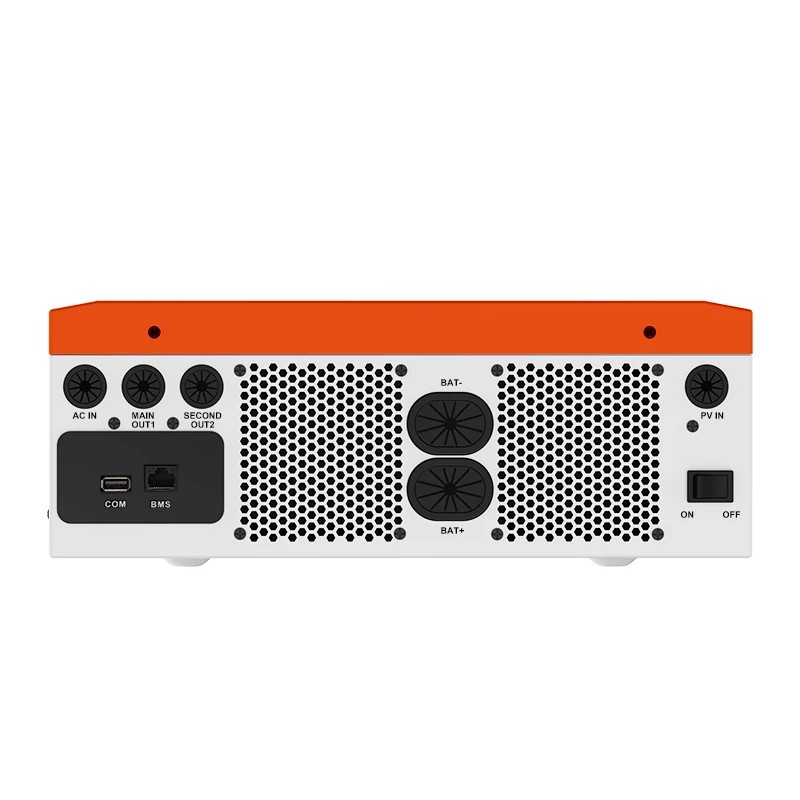

- Cooling Grille — ventilation openings on the side of the casing.
- White Colour — wall-mounted design with an orange stripe at the bottom.
Package Contents:
- 1x hybrid solar inverter
- 1x WiFi module
- 1x connecting cable
The inverter can be used in a home photovoltaic setup, at a cottage, in a workshop, or in a business where higher consumption needs to be covered. Parallel operation of up to 12 units means that the system can be built gradually, and performance can be increased by adding another unit instead of replacing the entire inverter. The possibility of three-phase connection opens the way to power equipment that requires more than one phase. Solar charging current of up to 120 A along with a PV array of up to 6500 W provides a buffer when expanding the number of panels. The included WiFi module with a cable allows for remote monitoring of production and consumption.
