Hybrid Solar Inverter 2.2 kW 12 V Charging 80 A and PV Array 2000 W and 450 V DC with WiFi Module White-Blue for Photovoltaics and Cabins
You already have the maximum available quantity in your cart.

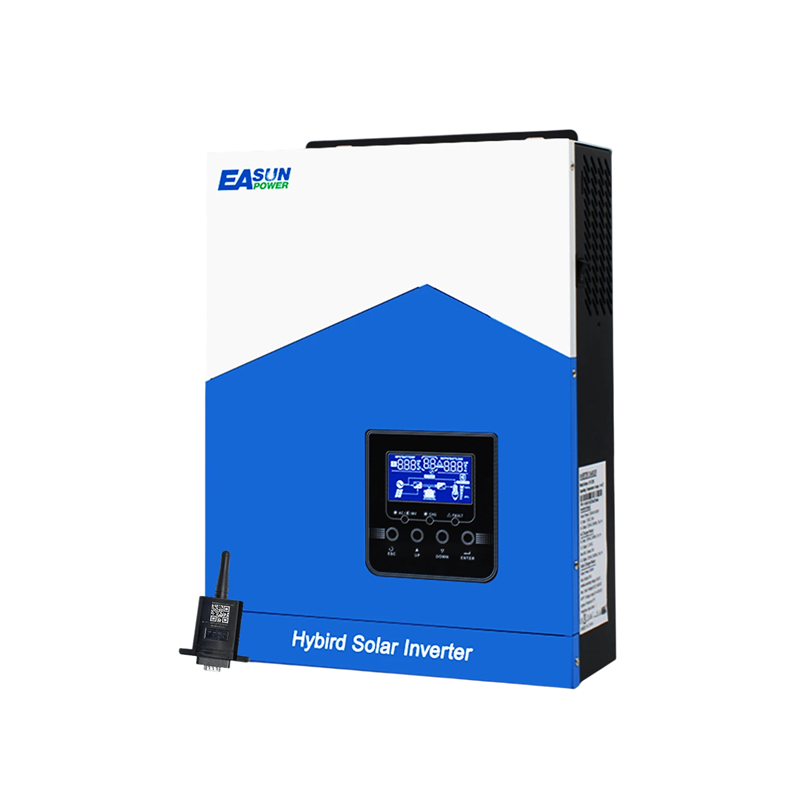

The hybrid solar inverter with a power of 2.2 kW is designed for 12 V battery systems. The maximum charging current reaches 80 A, allowing the batteries to replenish energy even during shorter sunny days. The photovoltaic array can have a power of up to 2000 W and a voltage of up to 450 V DC, providing the flexibility to connect panels in longer series. The SMH-II-2.2KW-WIFI model comes with a WiFi module with an antenna for monitoring operation. The white-blue casing features an LCD display with a graphical representation of energy flow, buttons, and status indicators.
Features:
- Power 2.2 kW — solution for 12 V battery system in a smaller assembly.
- Charging current 80 A — maximum current for charging batteries.
- PV array power 2000 W — maximum power of connected photovoltaic panels.
- PV array voltage 450 V DC — maximum voltage of the photovoltaic array.
- WiFi module with antenna — standalone dongle for monitoring operation according to the model designation.
- LCD display — graphical representation of energy flow between panels, batteries, and appliances.
- Control buttons — ESC, UP, DOWN, and ENTER below the display for settings.
- LED indicators — AC/INV, CHG, and FAULT indicators for a quick overview of status.
- Label with parameters — technical specifications on the side of the inverter.
- Cooling grille — ventilation openings on the side of the casing.
- Wall-mounted design — construction for installation on the wall in a technical room.
- White-blue colour — design with a dark panel around the display.
Contents of the package:
- 1x hybrid solar inverter
- 1x WiFi module with antenna
The inverter is suitable for use in a smaller photovoltaic assembly, at a cabin, in a workshop, in a caravan, or anywhere you want to combine energy from the sun with batteries. Charging current up to 80 A along with a PV array of up to 2000 W corresponds to a smaller assembly of panels that can be gradually supplemented. The array voltage of up to 450 V DC simplifies the design of the connection and eases the cabling on the roof. The WiFi module with antenna along with the LCD display means you have an overview of the system directly at the inverter as well as remotely. The AC/INV, CHG, and FAULT indicators provide immediate information about the status without navigating through the menu.
