Hybrid Solar Inverter 11 kW 48 V MPPT Charging 160 A and PV Array 2x 5500 W up to 500 V DC with WiFi White-Blue On-Grid and Off-Grid
You already have the maximum available quantity in your cart.

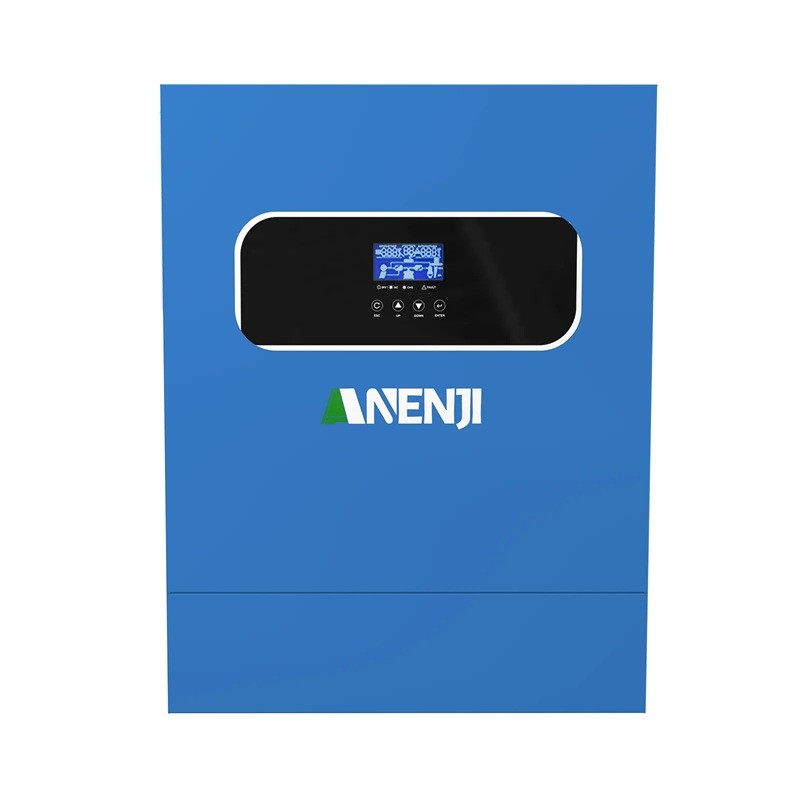

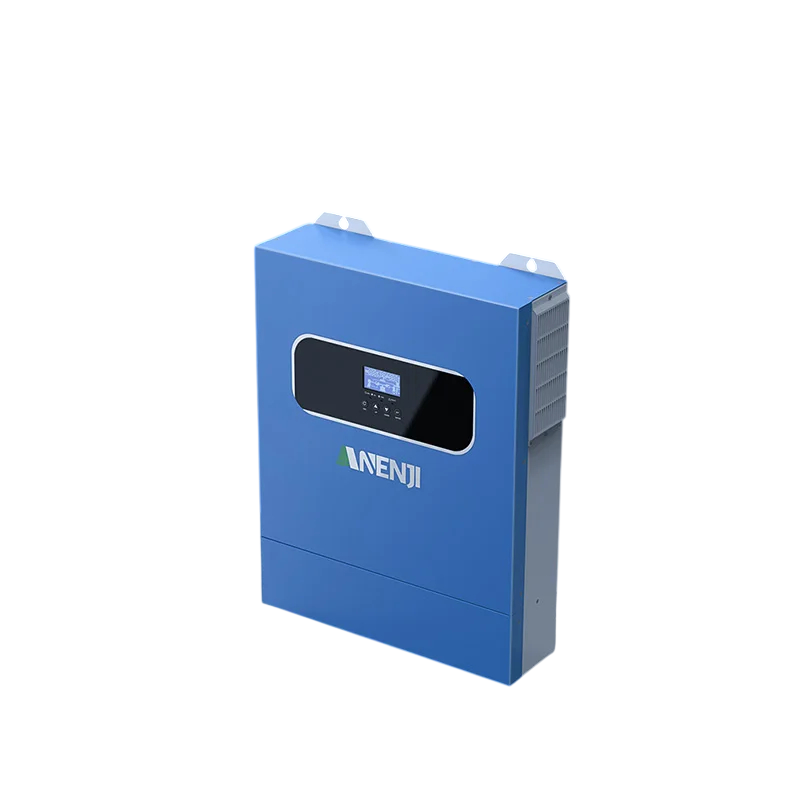

The hybrid solar inverter with rated power of 11,000 W is designed for 48 V battery systems and can operate in both off-grid and on-grid modes. The maximum MPPT charging current reaches 160 A, allowing the batteries to recharge even during a shorter sunny day. The photovoltaic arrays can have a power output of 5500 W each and an open circuit voltage of up to 500 V DC, providing the flexibility to split the panels into two branches with different orientations. The device can also operate without a connected battery. The model ANJ-HHS-11000W-48V-WIFI features an LCD display with buttons and a white-blue casing.
Features:
- Rated power 11,000 W — solution for 48 V battery systems in larger households.
- MPPT technology — maximum power point tracking for the photovoltaic array.
- MPPT charging current 160 A — maximum current for charging batteries from sunlight.
- PV array power 2x 5500 W — two separate branches of panels with their own output.
- Open circuit voltage 500 V DC — maximum voltage of the photovoltaic circuit.
- Operation without battery — capability to operate even in a setup without a connected accumulator.
- Off-grid and on-grid modes — operation outside the grid as well as in conjunction with the distribution network.
- WiFi connection — monitoring operation according to model designation ANJ-HHS-11000W-48V-WIFI.
- LCD display — graphical display of system status directly on the front panel.
- Control buttons — a quartet of elements below the display for navigating settings.
- Cooling grille — ventilation openings on both the top and side of the casing.
- White-blue colour — design with a black panel around the display.
Contents of the package:
- 1x hybrid solar inverter
The inverter can be used in a home photovoltaic setup, at a cottage, in a workshop, or in a business where higher consumption needs to be covered. Two photovoltaic arrays of 5500 W each allow for splitting the panels across two roofs or different cardinal directions, ensuring more even production throughout the day. The combination of off-grid and on-grid modes provides flexibility in system design and later modifications. Operation without a battery along with a charging current of 160 A means that the setup can be built gradually, with the accumulator added later. The WiFi connection keeps track of the system even remotely.
