HiFi Valve Amplifier Single-Ended Class A 2× 10 W, EL34C and 6SN7GT Valves, Steel Chassis, RCA Input, Black, for Home Stereo
You already have the maximum available quantity in your cart.
The HiFi valve amplifier in single-ended Class A configuration is designed for home stereo systems and listening in medium-sized rooms. The circuit operates with five valves – two power EL34C, two preamplifier 6SN7GT, and a rectifier valve 5Z3P/5U4G. In ultralinear configuration, it delivers a rated output power of 10 W per channel, with a maximum of 20 W per channel. The self-regulating design with classic five valves is tuned for a clean and natural sound, which is particularly effective for vocal music and acoustic recordings. The analogue RCA input allows connection of a CD player, DAC, streamer, or phono preamplifier, while the speaker terminals with taps at 0, 4, and 8 Ω enable connection of speakers with an impedance of 4 Ω or 8 Ω. The steel chassis in black finish with hand-soldered connections on the circuit board is complemented by pure copper RCA connectors and copper speaker terminals.

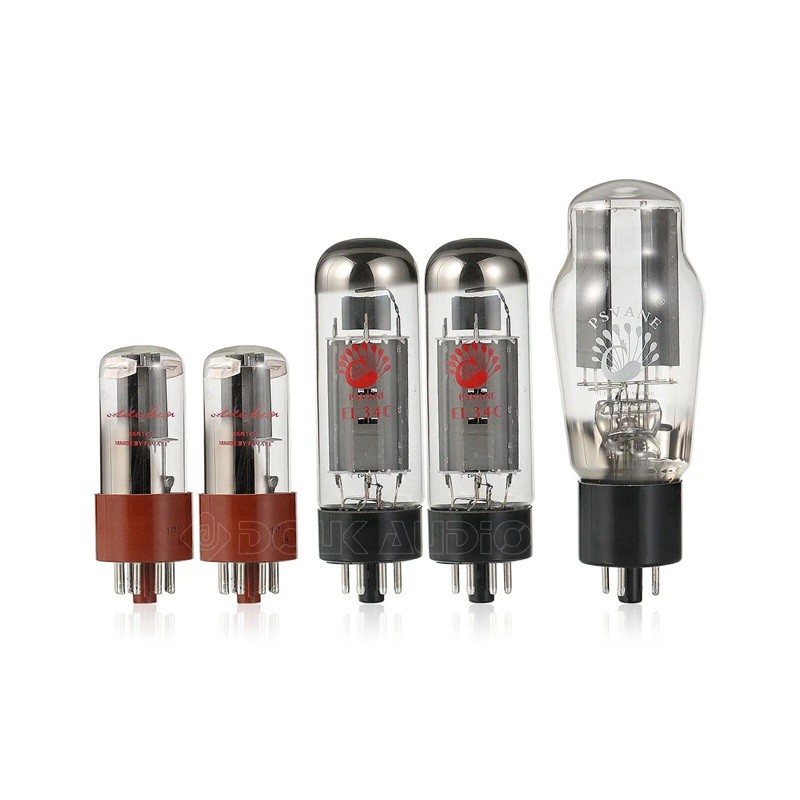

- Configuration: single-ended Class A amplifier in 2.0 channel configuration with five valves – 2× EL34C, 2× 6SN7GT and 1× 5Z3P/5U4G
- Output Power: rated 10 W per channel in ultralinear configuration, maximum 20 W per channel
- Frequency Response: 20 Hz – 25 kHz, THD 1 % (1 kHz), signal-to-noise ratio 88 dB
- Input: analogue RCA (AUX IN), input sensitivity 500–2000 mV, input impedance 100 kΩ

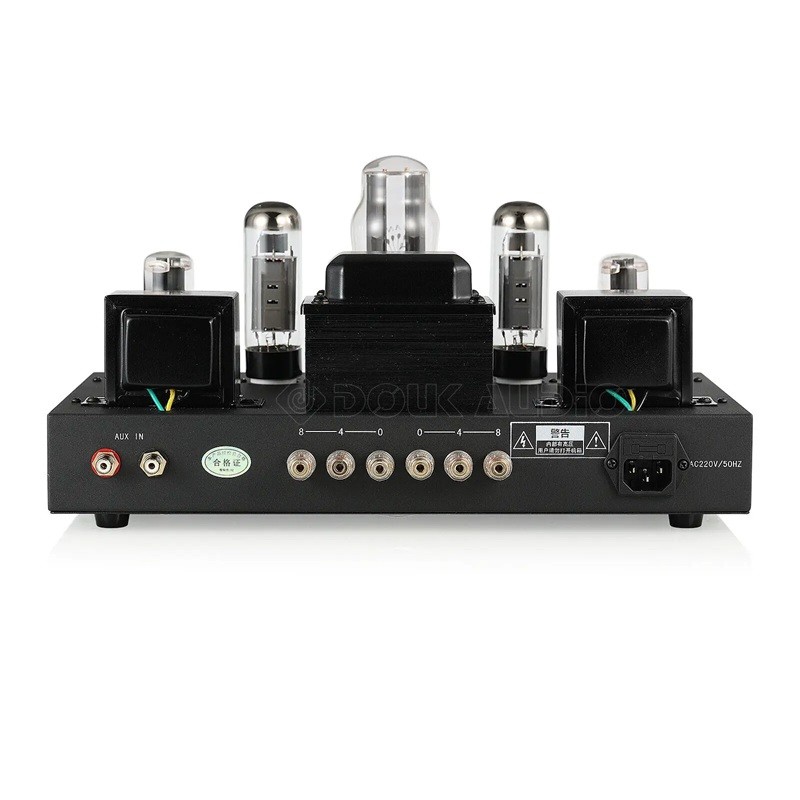

- Output: speaker terminals with taps 0, 4 and 8 Ω, recommended speakers 10–100 W

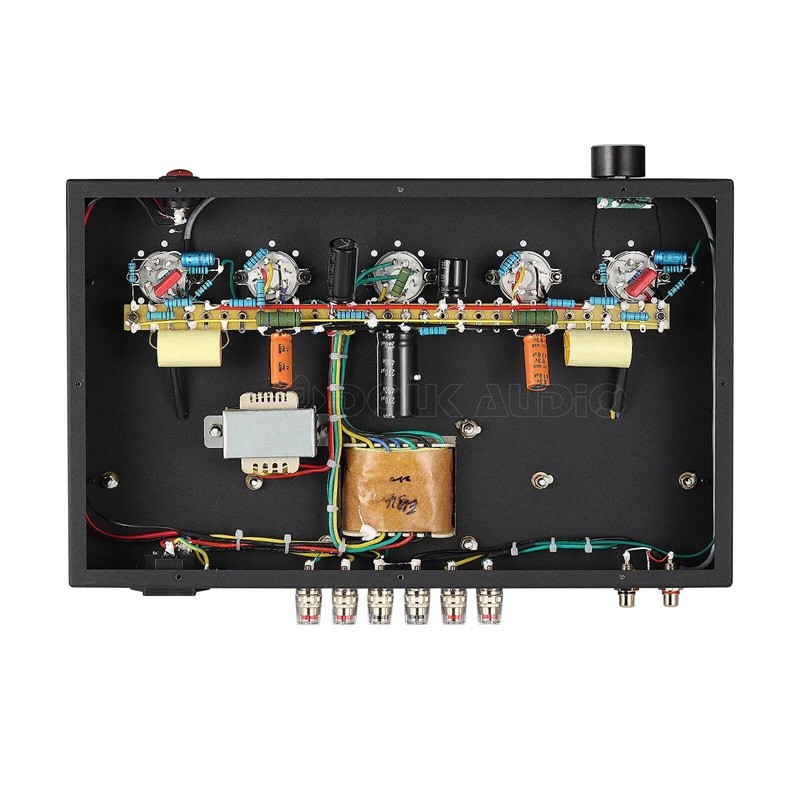

- Construction: steel chassis, circuit board, pure copper RCA inputs and copper terminals, resistors made of high-precision metal film
- Control: rotary volume potentiometer and switch on the front panel
- Power Supply: 110–120 V / 220–240 V, 50–60 Hz, power consumption 105 W

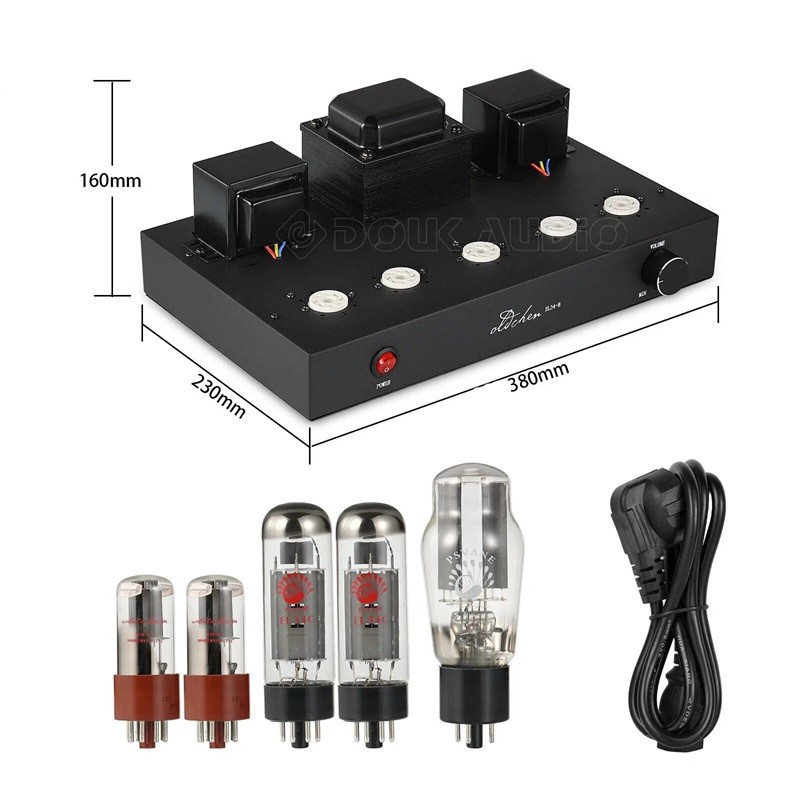

- Dimensions and Weight: 380 × 160 × 230 mm (W × H × D), net weight 8.5 kg
- Colour: black
- Packaging: 49 × 35 × 24 cm, weight 10 kg
Contents of the Package
- 1× valve amplifier
- 5× valves
- 1× power cable
The amplifier is suitable for systems with speakers rated 10–100 W and an impedance of 4 or 8 Ω. Control is limited to a volume potentiometer and switch on the front panel, with all signal source and speaker connections made from the rear of the unit. Dimensions of 380 × 160 × 230 mm and a net weight of 8.5 kg are suitable for placement on a standard HiFi shelf or table. The power supply of 220–240 V / 50–60 Hz allows operation in a typical domestic electrical network, with a consumption of 105 W. The amplifier is supplied in packaging measuring 49 × 35 × 24 cm, including a complete set of five valves and a power cable.
