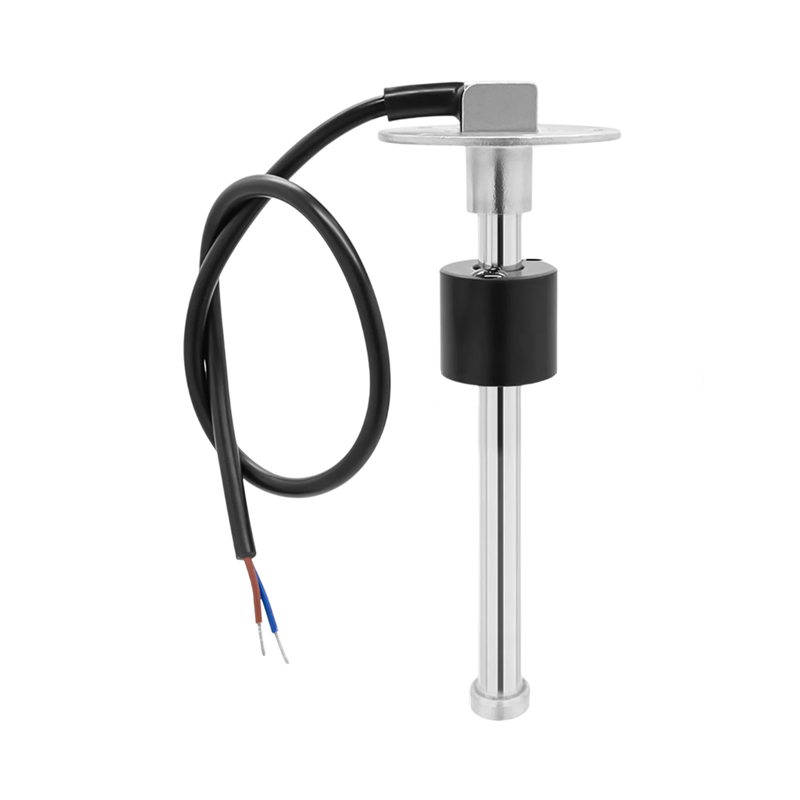

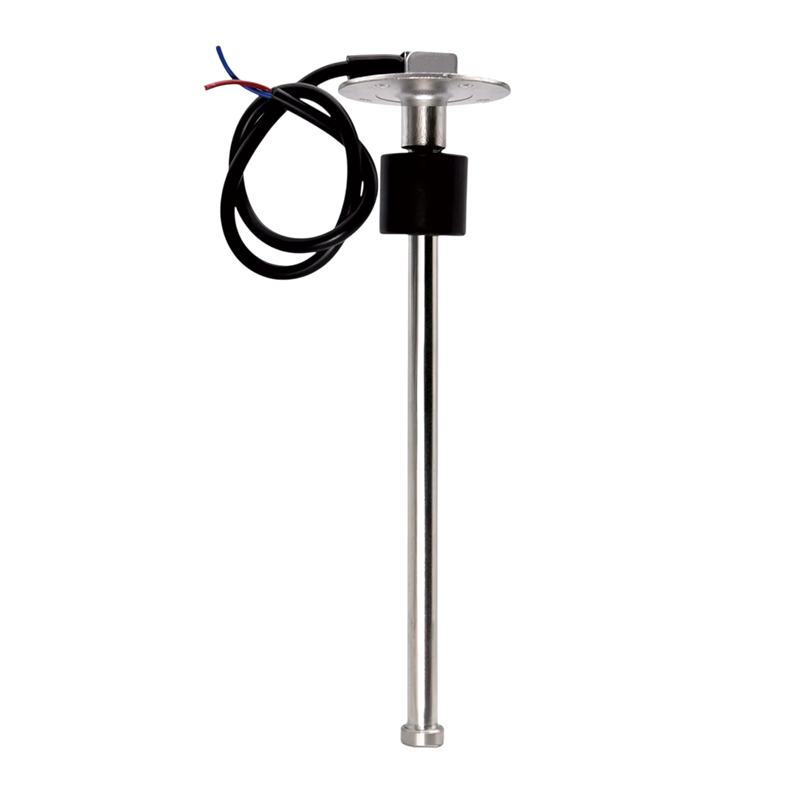

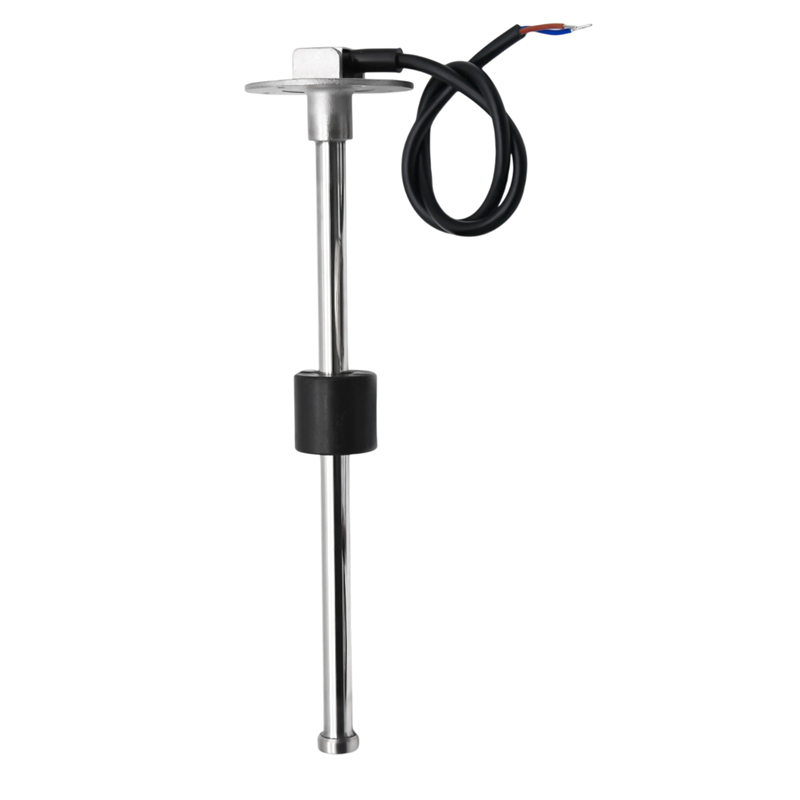

Fuel Level Sensor 0–190 Ω 300 mm 12" Electric Sensor IP67 for Measuring Fuel and Liquid Levels in Tanks of Boats, Vehicles and Machines
The fuel level sensor is used for continuous monitoring of the liquid quantity in tanks used in transport or technical systems. This type of sensor utilises a standard resistance output of 0–190 Ω, which is commonly used in fuel level indicators in various vehicles and technical devices. This allows the sensor to be connected to various measuring instruments designed for monitoring fuel or other liquid levels.
The measuring rod of the sensor has a length of 300 mm (12"), which corresponds to the recommended tank height of approximately 310 to 325 mm. This length makes the sensor suitable for tanks with a higher structural height, where it is necessary to monitor the amount of fuel, oil or other liquids.
The device operates within a voltage range of 9–32 V DC and its maximum operating current does not exceed ≤60 mA. This allows the sensor to be integrated into standard electrical systems used in transport or industrial technology.

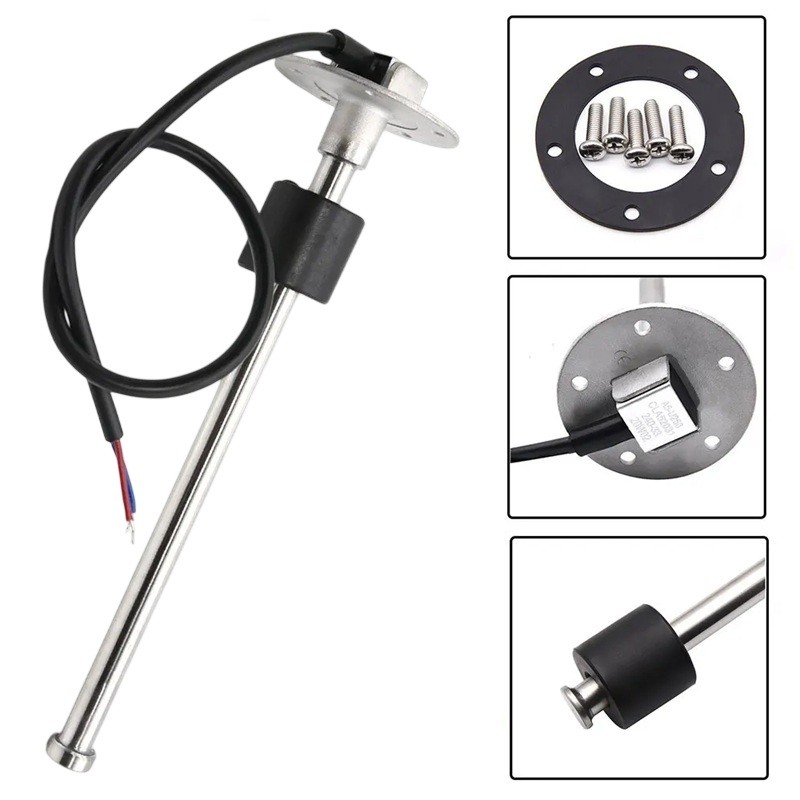

The sensor's design is intended for mounting using a flange with five holes. Installation is carried out using the supplied M5 screws and a 2 mm thick gasket. The gasket helps ensure a seal between the sensor and the tank and reduces the possibility of liquid leakage.
The sensor is protected with an IP67 rating, which provides protection against dust and temporary immersion in water. This means the device can be used in environments with higher humidity or when in contact with water. The measurement resolution of 21 mm allows for monitoring changes in liquid levels within the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Measuring rod length: 300 mm (12")
- Operating voltage: 9–32 V DC
- Ingress protection rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 310–325 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil and liquid tanks
- Used in marine, boating or cargo systems

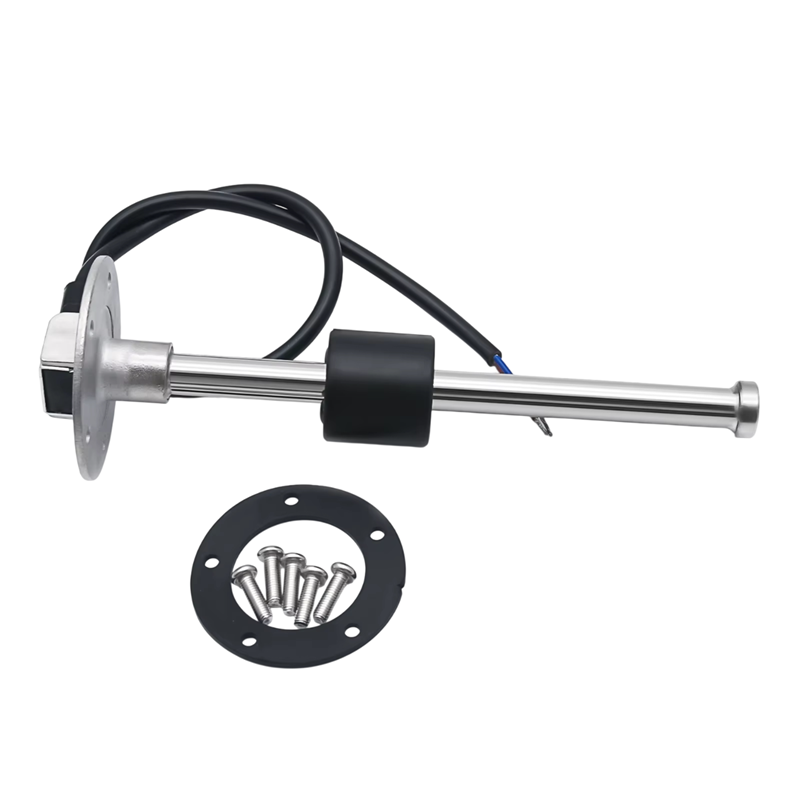

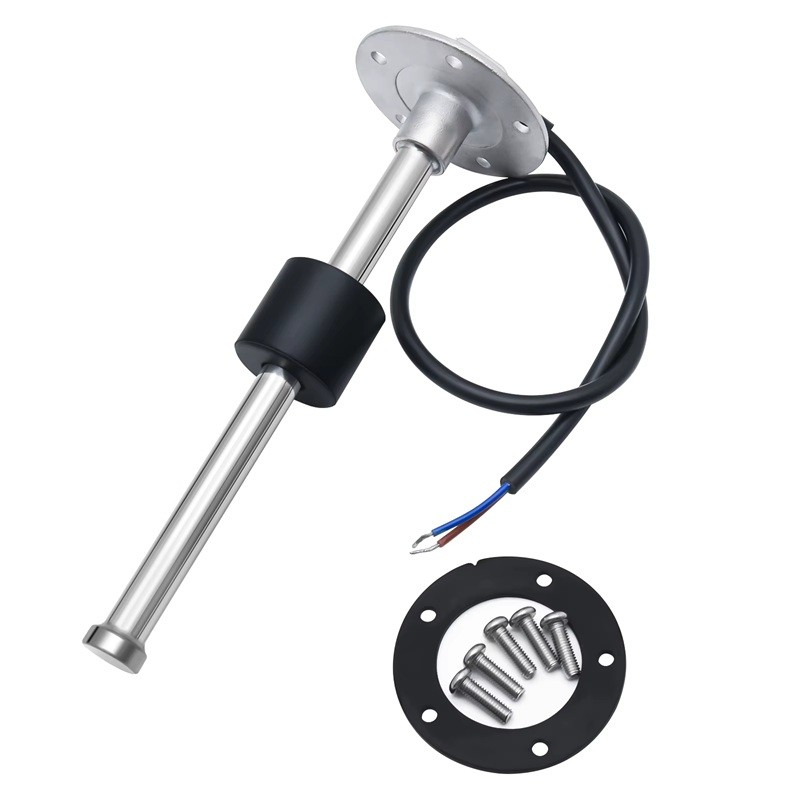

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows for monitoring the amount of liquid in the tank using a resistance output compatible with standard level indicators. With a length of 300 mm, it is suitable for tanks with greater structural height. The mounting flange allows for secure attachment of the sensor using five screws. The package includes mounting screws and a gasket to seal the connection between the sensor and the tank. The IP67 rating allows for the use of the device in environments with higher humidity or in contact with water.
