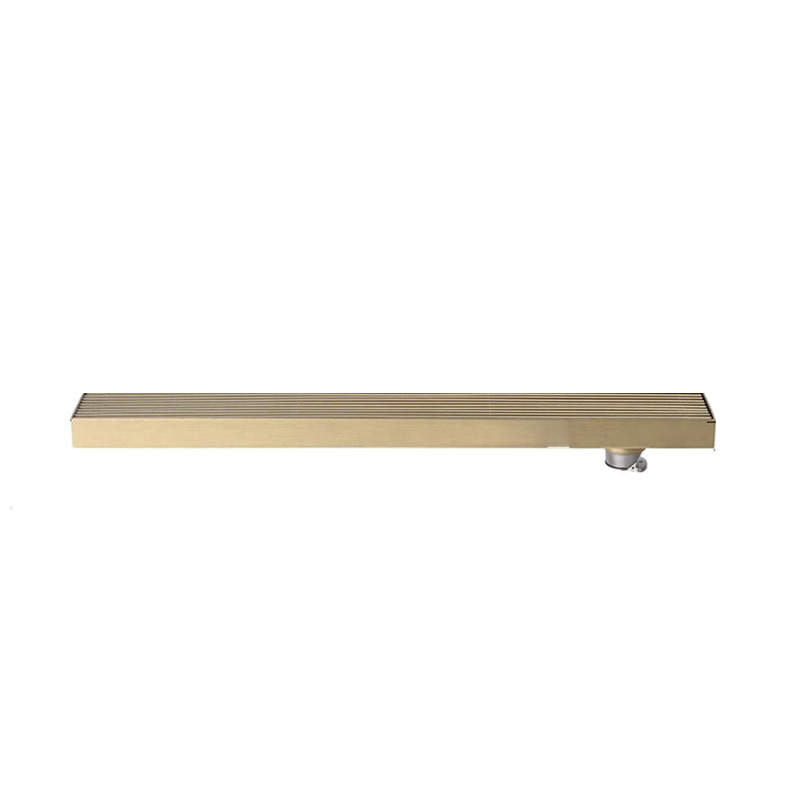

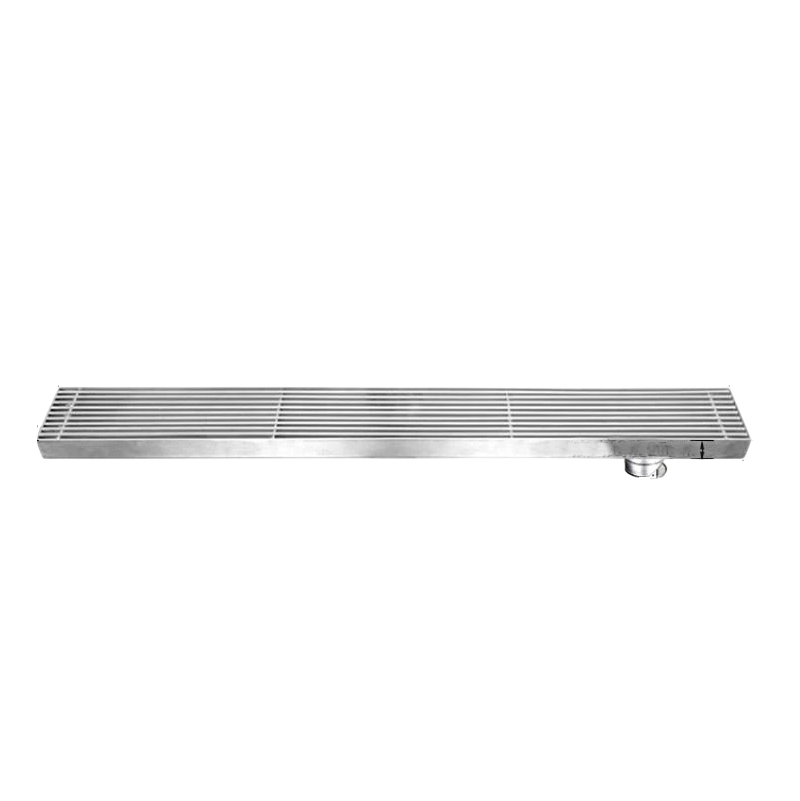

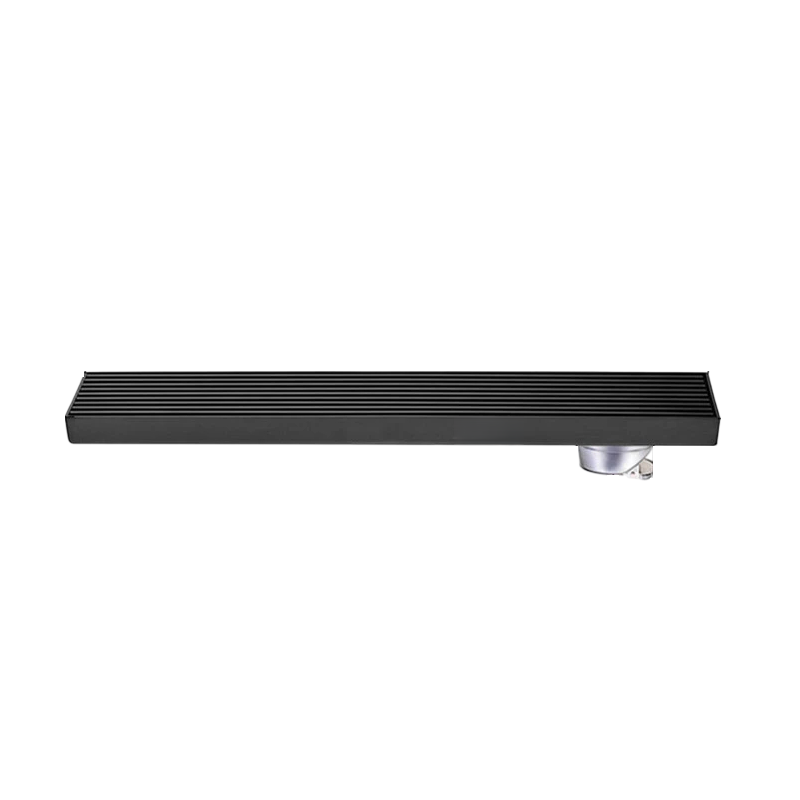

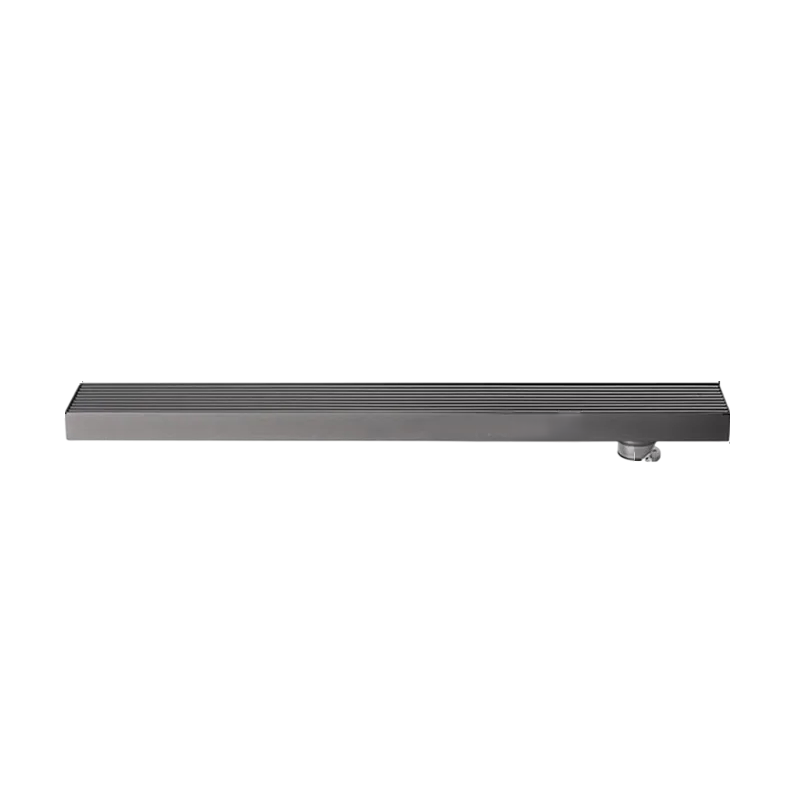

Floor Drain for Shower with Edge Outlet and Removable Grate 40 x 6.8 x 5.6 cm with Outlet Neck 4.5 cm and Dirt Strainer
| Colour:
|
You already have the maximum available quantity in your cart.
The placement of the outlet at the end of the drain is ideal for corners where the waste pipe exits close to the wall and cannot be moved without interfering with the floor. The drain measures 40 x 6.8 x 5.6 cm and fits beneath the tiles, leaving only the grate with longitudinal bars flush with the floor. The material is stainless steel, which does not corrode in the shower and withstands hot water, steam, and soap without losing its appearance even after years of use. The neck, with a diameter of 4.5 cm, is positioned 7.5 cm from the end, so there is enough space at the edge of the shower cubicle for connecting the waste without needing to extend the pipe further. The grate can be lifted from the bath by hand to reveal the strainer that captures hair and coarse debris before it enters the waste, making it easy to clean the bottom.
- Edge Outlet – the neck with a diameter of 4.5 cm sits 7.5 cm from the end of the drain, facilitating connection to pipes running along the wall or in the corner of the shower cubicle.

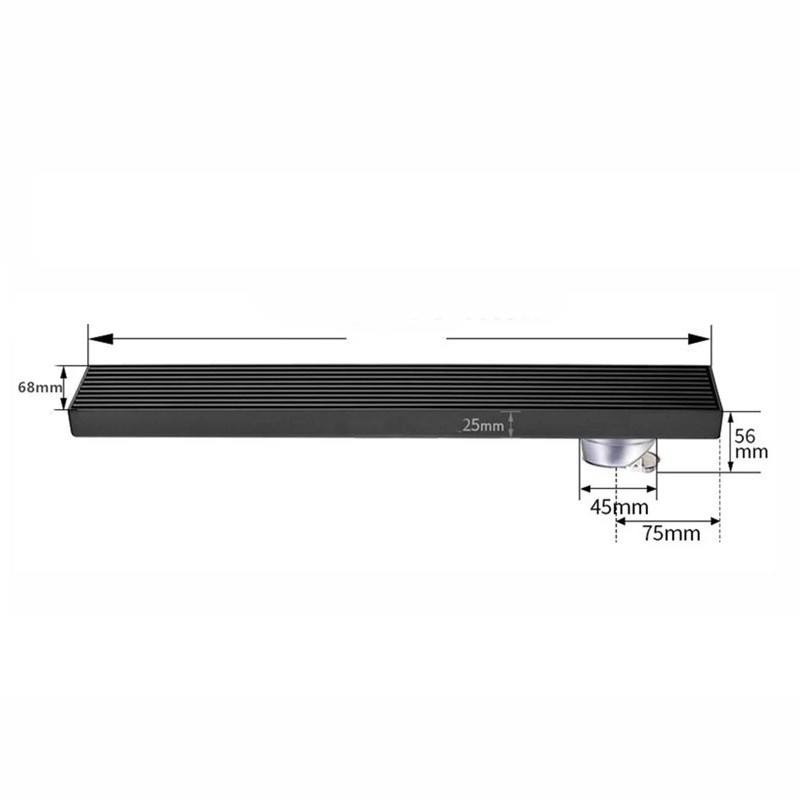

- Dimensions – length 40 cm, width 6.8 cm, and height 5.6 cm determine the size of the cut-out in the tiles and the required floor structure above the waste pipe.
- Shallow Bath – internal depth of 2.5 cm keeps the overall height low, so the drain does not require deep space beneath the tiles or a thick layer of screed.

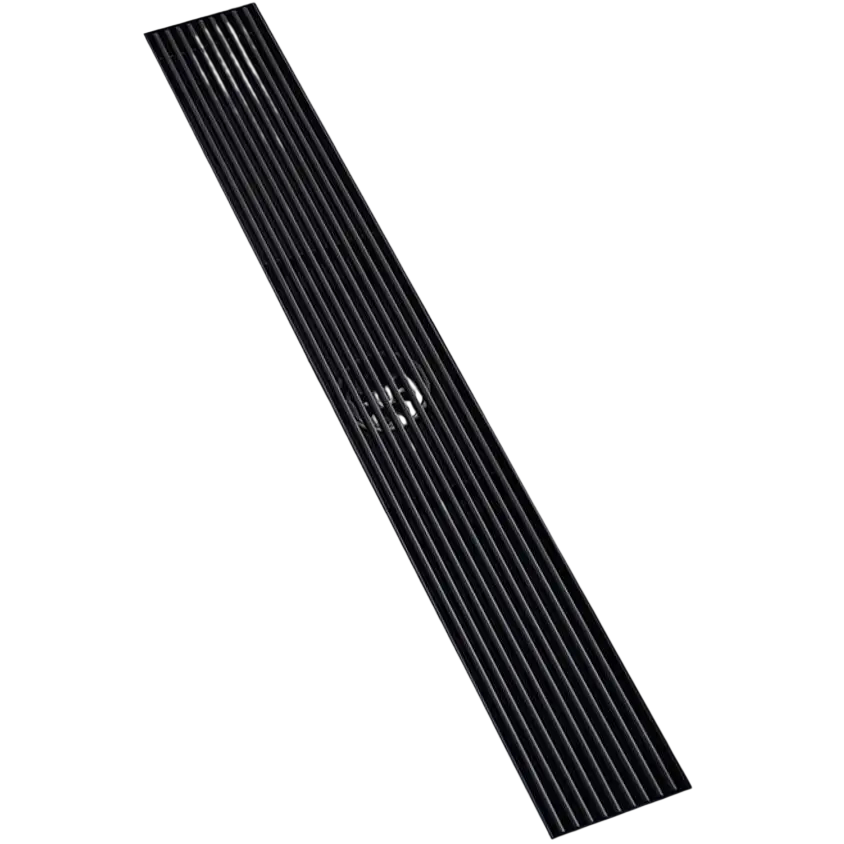

- Grate without Screws – the grid can be removed entirely, rinsed under running water, and replaced without tools, adjustments, or further modifications on-site.
- Dirt Strainer – the circular insert above the neck catches hair and soap residues before they end up in the waste and settle in its bend.
- Stainless Steel Surface – the smooth surface can be wiped with a sponge or cloth, withstands common bathroom cleaning agents, and does not require abrasives or scouring pads.
Contents of the Package:
- 1x shower channel with outlet neck
- 1x removable grate
The drain with an edge outlet is used in shower cubicles without a tray and in bathrooms where water drains directly from the tiled surface into the floor. The grate flush with the floor creates only a thin line in the surface and allows the tiling and grout of large-format tiles to stand out. Regularly removing the grate and rinsing the strainer keeps the drain clear, and water then flows smoothly even after prolonged daily showering. Before purchasing, it is advisable to check the position of the waste, its diameter, and the height of the floor structure to ensure compatibility between the drain and the existing installation. Installation is addressed during the sloping of the floor and laying of the tiles, as the grate must align with the surrounding surface, and the joints around it are sealed.
