Ethernet DMX 512 Box with 4 Ports and DC 5-12 V Power Direction Switch in Gold for Stage Lighting, Clubs and Stages
Ethernet DMX 512 Box with 4 Ports and DC 5-12 V Power Direction Switch in Gold for Stage Lighting, Clubs and Stages 1
Ethernet DMX 512 Box with 4 Ports and DC 5-12 V Power Direction Switch in Gold for Stage Lighting, Clubs and Stages 1
Ethernet DMX 512 Box with 4 Ports and DC 5-12 V Power Direction Switch in Gold for Stage Lighting, Clubs and Stages 2
Ethernet DMX 512 Box with 4 Ports and DC 5-12 V Power Direction Switch in Gold for Stage Lighting, Clubs and Stages 3

Ethernet DMX 512 Box with 4 Ports and DC 5-12 V Power Direction Switch in Gold for Stage Lighting, Clubs and Stages

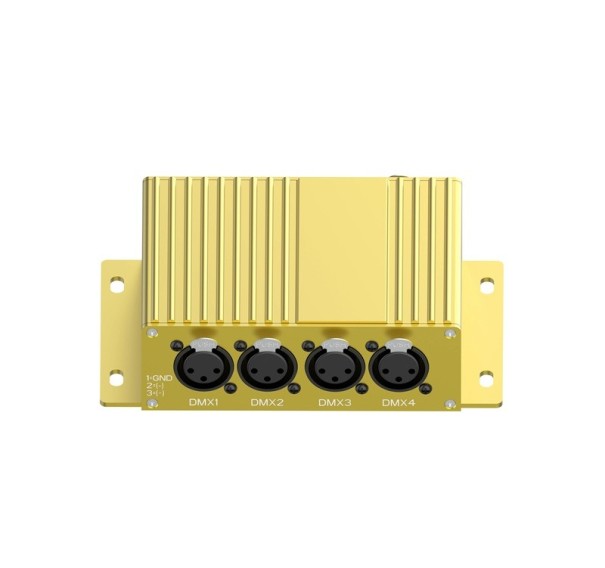

Art-Net to DMX converter with four 3-pin XLR outputs and RJ45 connector. IN and OUT switch, PWR, STA and Link indicators, and side mounting brackets. Full description
In stock
€165.90
Safe shopping Safe shopping
Overview
Ethernet DMX 512 Box with 4 Ports and DC 5-12 V Power Direction Switch in Gold for Stage Lighting, Clubs and Stages

The Ethernet box converts signals from a computer network to control stage lighting according to the DMX 512 standard. The device offers four 3-pin DMX1 to DMX4 ports in XLR format and an Ethernet connector in the form of a RJ45 socket with a PUSH lock. The signal direction is set using a two-position switch with four combinations: all ports as input, all as output, or combinations of 1 and 2 in and 3 and 4 out, or vice versa. The device status is indicated by the PWR, STA, and Link LEDs located next to the network socket. Power is supplied via a coaxial connector DC 5-12 V.

Features:

  • Ethernet to DMX 512 — conversion of control signals from a standard computer network to DMX standard.
  • Four ports — individual DMX1, DMX2, DMX3, and DMX4 connectors for system distribution.
  • 3-pin wiring — pin descriptions directly on the panel: 1 = GND, 2 = (-) and 3 = (+).
  • Direction switch — choice between All In, All Out modes and combinations 1,2 IN / 3,4 Out and vice versa.
  • Ethernet connector — RJ45 socket with PUSH button for secure cable attachment.
  • Indicators — LED indications for PWR, STA, and Link for monitoring power, status, and connection.
  • DC 5-12 V power — coaxial connector for connecting a standard adapter.
  • Mounting brackets — side flanges with elongated holes for screwing to the structure.
  • Ribbed body — profile with cooling ribs along the entire length of the cover.
  • Gold colour — finish that is easy to locate in racks and trusses.

Package contents:

  • 1x Ethernet DMX 512 Box

This box is ideal for lighting stages, clubs, bars, concerts, and smaller events where lights are controlled from a computer. Four ports allow the system to be divided into several lines, for example, separately for front lights, truss, and effects. The direction switch provides flexibility in wiring design, as the ports can be used as inputs or outputs as needed. PWR, STA, and Link indicators provide a quick overview of whether the device is running and if the connection is established. Side brackets allow the box to be screwed directly to the structure and left permanently in place.

Price incl. VAT €165.90
