Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving
Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving 1
Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving 1
Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving 2
Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving 3
Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving 4
Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving 5

Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving

Three-flute pyramid end mills made of sintered carbide with a 45° angle and a tip of 0.1 mm. 1/8 inch shank for fine engraving of inscriptions and logos on CNC milling machines. Full description
In stock
€30.52
Safe shopping Safe shopping
Overview
Engraving V-Bits 45° x 0.1 mm 10 pcs Shank 3.175 mm Length 30 mm Three-Flute Carbide Silver For CNC Milling and Engraving

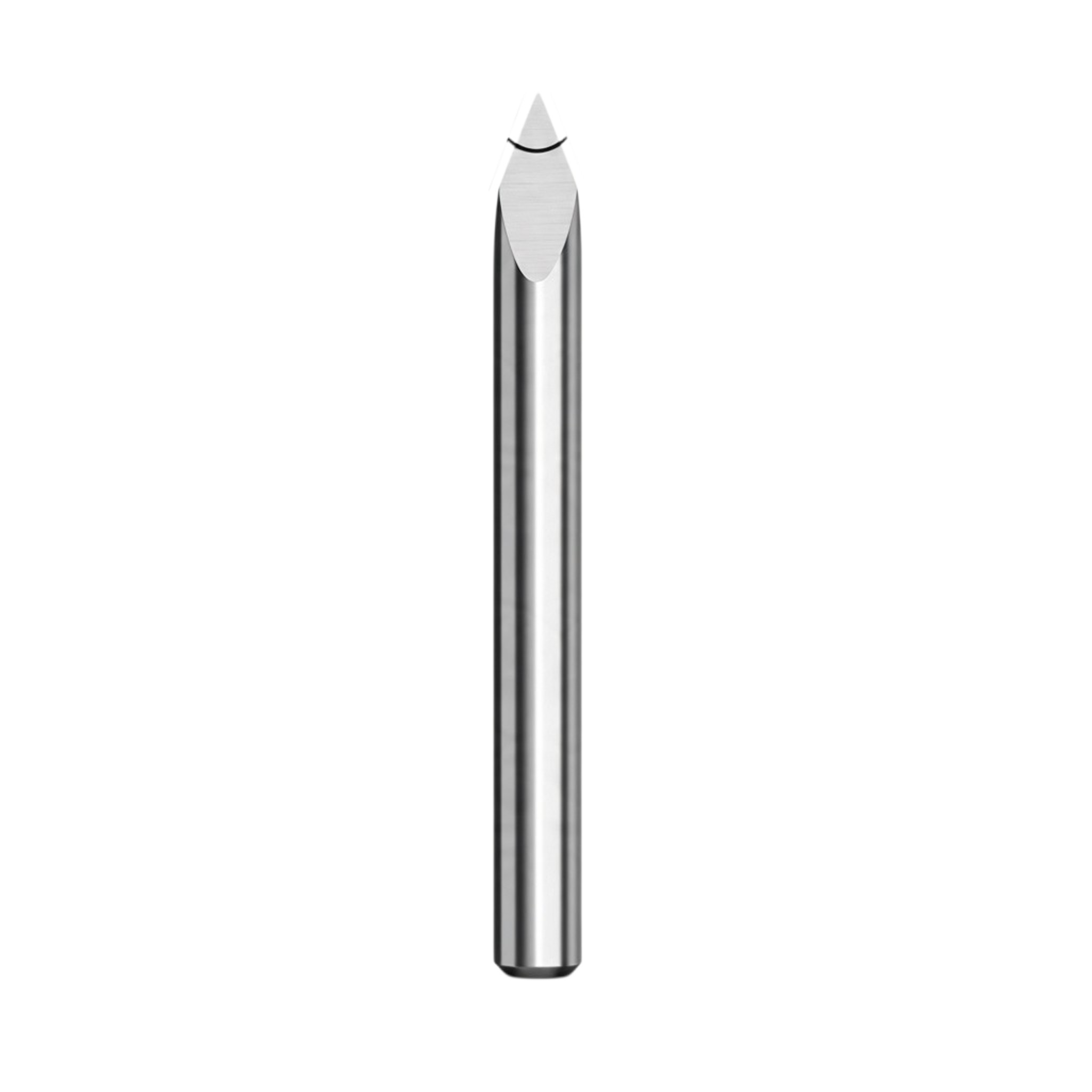

Engraving V-Bits with a tip angle and width of 45° x 0.1 mm are designed for fine engraving on CNC milling machines. The package contains 10 pcs of the same bits, so you have a supply for longer work and replacements when the tip wears out. The bits are three-flute, pyramid-shaped, and made of sintered carbide. They have a shank diameter of 3.175 mm and an overall length of 30 mm. The surface of the bits is silver.

  • Angle 45° — the tip angle of 45° creates a V-shaped groove that is narrow enough for detailed motifs while remaining legible. It is suitable for inscriptions, logos, and medium-sized ornaments.
  • Tip 0.1 mm — the very narrow area at the end of the tip allows for engraving thin lines and small letters. A shallow cut produces a fine, almost hairline line.
  • Three-Flute Pyramid Shape — the cutting part has three flutes arranged in a pyramid, which alternate during rotation in the cut. This shape is typical for engraving bits used for fine lines and small motifs.
  • Sintered Carbide — the material commonly used for CNC bits is hard and wear-resistant. Therefore, carbide is very commonly used for engraving bits.
  • Shank 1/8 inch — the bits have a shank of 3.175 mm, which fits into the collet of a CNC milling machine or engraving machine. Before purchasing, ensure that the collet matches this diameter and not 3 mm.
  • Length 30 mm — the short bit is designed for engraving with a shallow cut, where the work is mainly done with the tip. The width of the resulting groove varies depending on how deep the bit penetrates the material.
  • Ten pieces in the package — the fine tip of 0.1 mm is sensitive to impact or excessive feed. With a package of ten pieces, you always have a spare bit on hand and do not need to interrupt your work.
  • Usage — engraving of inscriptions, logos, numbers, and ornaments on CNC milling machines. The bits are suitable for making plaques, labels, name tags, decorations, and promotional items.
  • Tip for use — with such a fine tip, start with a shallower cut and lower feed. Adjust the settings gradually according to the material and desired line width.
  • Package contents — 10x engraving V-bit 45° x 0.1 mm.

Engraving V-Bits 45° x 0.1 mm are consumables for anyone working with a CNC milling machine or engraving machine. The 45° angle and 0.1 mm tip are suitable for fine inscriptions, logos, and detailed ornaments. The bits made of sintered carbide have a shank of 3.175 mm and a length of 30 mm. The package contains ten identical pieces, so you have a supply for a longer time. The bits will be useful in the workshop, for making promotional items, and for home projects.

Price incl. VAT €30.52
