Cylindrical Cutter 6 x 25 mm Three Flutes TCT Shank 12.7 mm 1/2 Inch Tungsten Carbide Straight Grooving CNC Cutter Silver Wood and Laminated Boards
You already have the maximum available quantity in your cart.

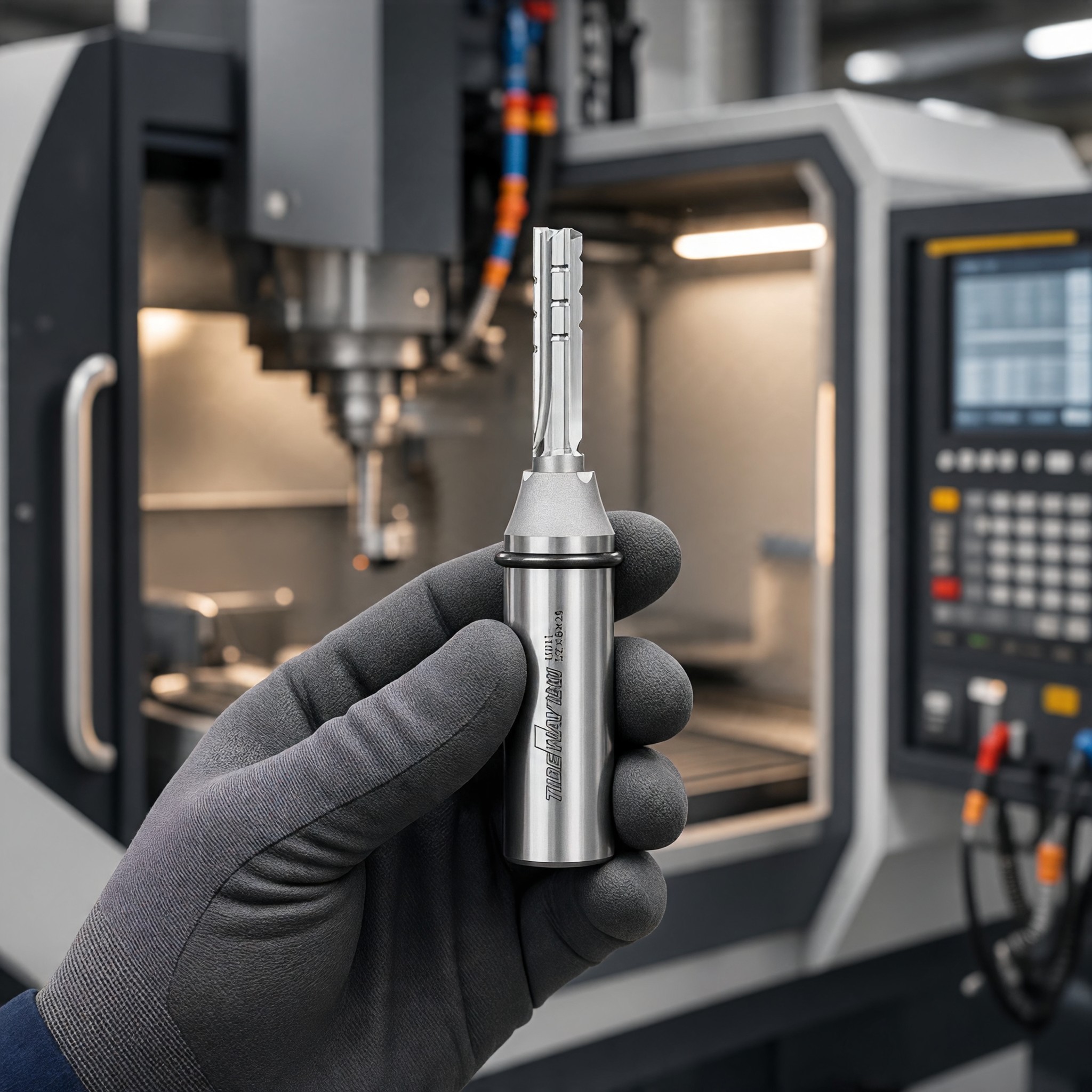

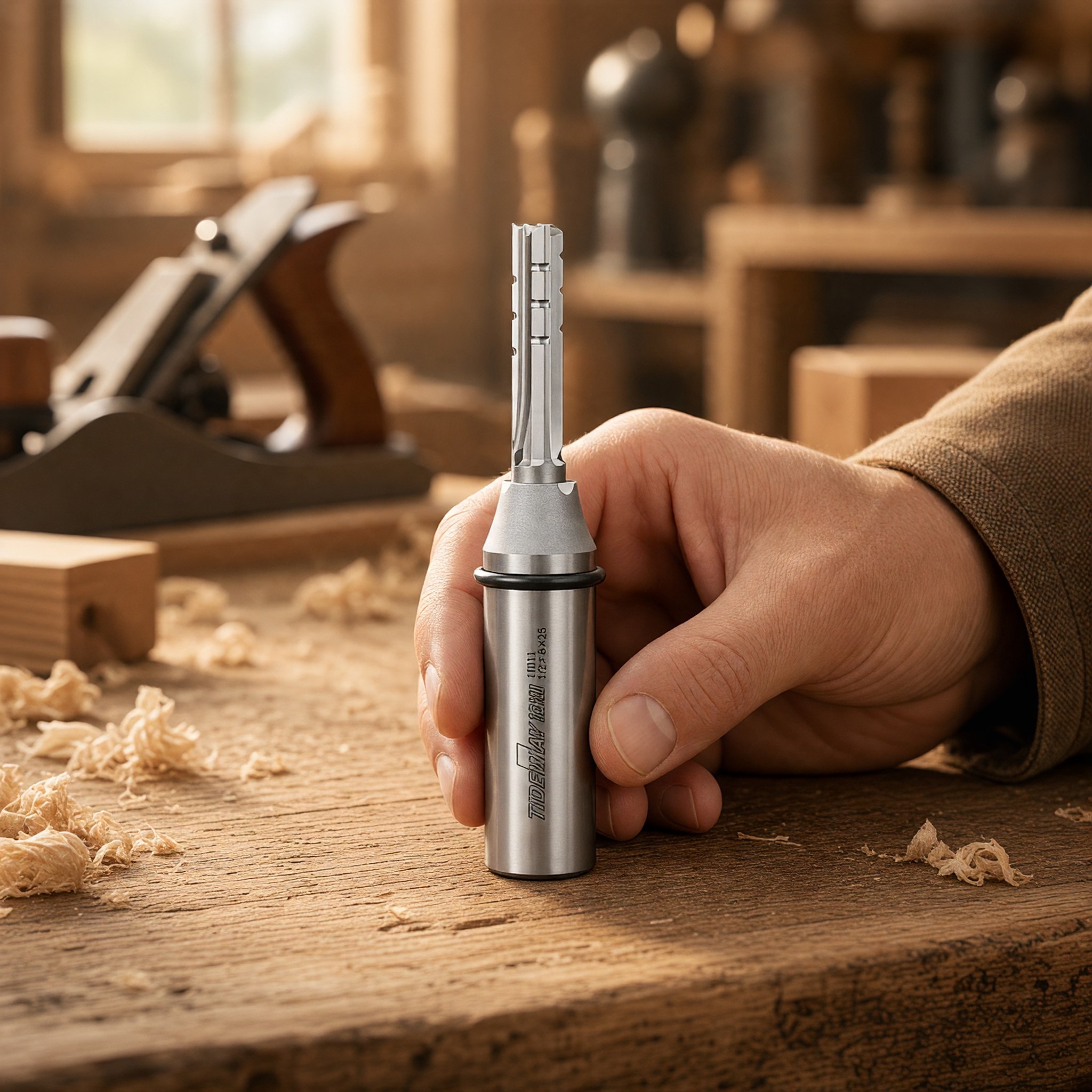

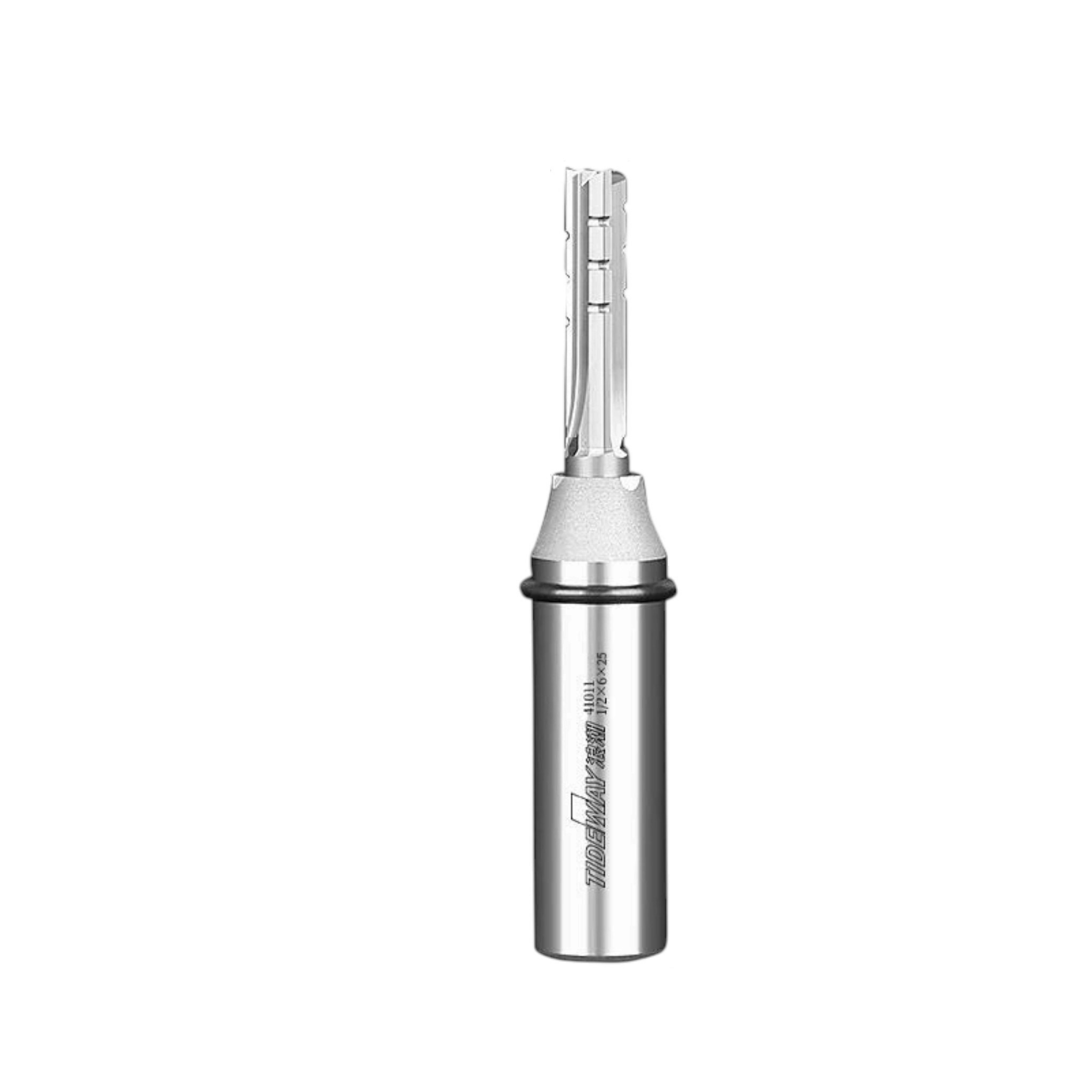

The cylindrical cutter measuring 6 x 25 mm is a straight grooving cutter designed for working with wood and laminated chipboards. The three flutes are made of tungsten carbide (TCT) and the working part measures 25 mm. The cutter creates grooves, rebates, and cut-outs with a flat bottom and vertical walls. It is secured with a 1/2 inch shank with a diameter of 12.7 mm into a router, CNC milling machine, or engraving machine. The cutter is silver and features a black ring at the top of the shank.
- Cylindrical Shape 6 mm — the cutting part has a diameter of 6 mm along its entire length, ensuring the groove has the same width from the bottom to the top edge. It is suitable for precise joints and recessing parts.
- Working Depth 25 mm — the flutes allow for milling to a depth of up to 25 mm. For deeper grooves, mill gradually in multiple passes to avoid overloading the tool.
- Number of Flutes — the cutter has three flutes that alternate engagement during rotation. Each removes a smaller chip, resulting in a smoother cut than with single or double flute cutters.
- Cutting Material — the cutting edge is made of tungsten carbide, which is harder than tool steel. Tungsten carbide is commonly used for wood and chipboard cutters as it retains its sharpness for a long time.
- Diameter 1/2 Inch — the shank measures 12.7 mm and fits into a collet of the same diameter. A 12 mm collet is not suitable, so please check what collet your machine has before purchasing.
- Overall Length — the cutter is 73 mm long. The robust shank provides good rigidity for the tool in the collet. Adjust the depth of shank insertion according to your machine's manual.
- Where to Use the Cutter — in a handheld router, on a milling table, in a CNC milling machine, or in an engraving machine, provided they have a collet for a 1/2 inch shank.
- Wooden Structures — the cutter is intended for wood and laminated chipboards. It is useful for furniture making, cabinets, shelves, frames, and other wooden structures.
- Operating Principles — securely tighten the cutter in the collet, firmly clamp the workpiece, and choose an appropriate feed rate. Always wear protective eyewear when milling.
- Package Contents — 1x cylindrical cutter 6 x 25 mm with a 1/2 inch shank.
The cylindrical cutter 6 x 25 mm is suitable for making straight grooves and cut-outs in both wood and laminated chipboards. The working depth of 25 mm is sufficient for standard and deeper grooves, provided the depth is added gradually. The three flutes made of tungsten carbide remove material smoothly and create a groove with a consistent width throughout its depth. The 1/2 inch shank fits into a router, CNC milling machine, or engraving machine. You will find this cutter useful in the workshop for furniture making and other wooden products.
