Compact Grooving Cutter 8 x 20 mm Shank 1/2 inch 12.7 mm Triple Blade TCT Tungsten Carbide Straight CNC Cutter Silver Wood and Chipboard
You already have the maximum available quantity in your cart.

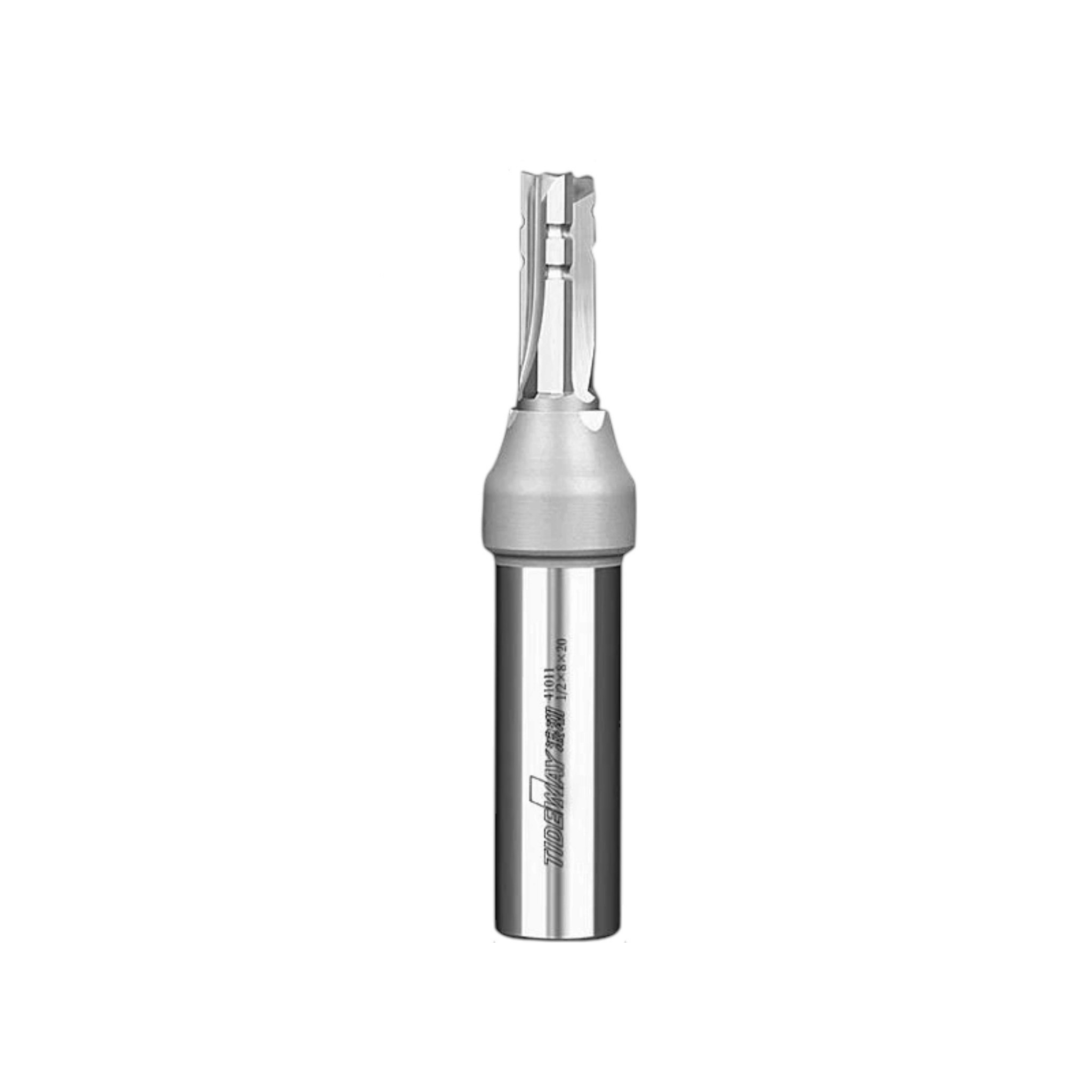

The compact grooving cutter with dimensions 8 x 20 mm is a straight cutter for milling wider grooves, half-grooves, and cutouts in wood. The cutting diameter is 8 mm and the blade length is 20 mm, making it suitable for shallow and medium-depth grooves. The three blades are made of tungsten carbide (TCT) and the cutter is fitted with a 1/2 inch shank with a diameter of 12.7 mm. It can be used in a router, CNC machine, or engraving machine. The cutter is silver with a grey transition between the shank and the blades.
- Groove width of 8 mm — the cutter creates a groove 8 mm wide with a flat bottom and vertical walls. It is suitable for joints and recessing thicker boards and strips.
- Shorter blades of 20 mm — the working part allows milling to a depth of up to 20 mm. The shorter cutting length means less tool overhang, providing stability in the collet.
- Three engaging blades — during rotation, the three blades gradually engage in the cut, each removing a smaller chip. The cut is therefore smoother than with cutters that have fewer blades.
- Tungsten carbide in the cutting part — the blades are made of tungsten carbide, abbreviated as TCT. It is harder than tool steel and is commonly used for wood and board cutters.
- Fitting 12.7 mm — the 1/2 inch diameter shank fits into a 12.7 mm collet. A 12 mm collet is not suitable, so please check your machine's equipment before purchasing.
- Total length — the cutter measures 75 mm. The thick shank provides good rigidity in the collet, and the depth of insertion should be chosen according to the machine's manual.
- Machines and clamping — the cutter can be used in a handheld router, router table, CNC machine, or engraving machine, provided they have a collet for 1/2 inch.
- Wider shallow grooves — the cutter is designed for wood and multilayer chipboard. It is suitable for wider grooves in commonly thick boards when making furniture, shelves, drawers, and frames.
- Safety recommendations — securely tighten the cutter in the collet, securely clamp the workpiece, and use appropriate feed rates. Mill deeper grooves gradually and wear safety glasses.
- Package contents — 1x grooving cutter 8 x 20 mm with a 1/2 inch shank.
The compact grooving cutter 8 x 20 mm is suitable for wider straight grooves and cutouts in wood and multilayer chipboard. The blade length of 20 mm is sufficient for shallow and medium-depth grooves, and the shorter tool holds firmly in the collet. The three blades made of tungsten carbide remove material smoothly and create a groove with a flat bottom. The 1/2 inch shank fits into a router, CNC machine, or engraving machine. The cutter is useful for making furniture and smaller wooden products.
