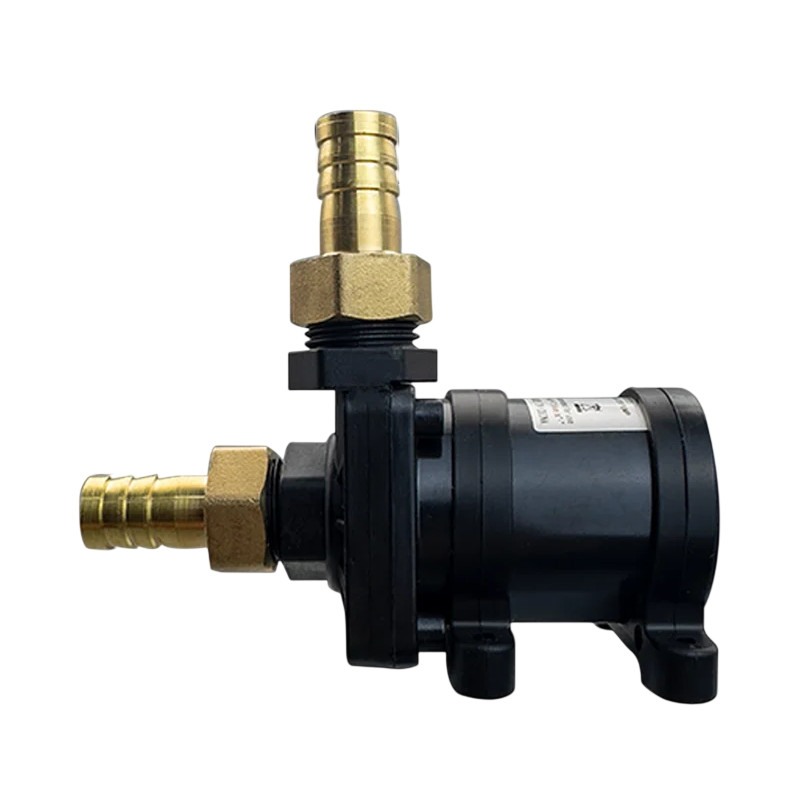

Brushless Submersible Pump 24 V and 26 W with Hose Outputs 14 mm and DC Connector for Flow 800 l/h and Lift 7 m with Black Body
You already have the maximum available quantity in your cart.
The brushless submersible pump operates on 24 V DC circuits and moves up to 800 litres per hour. The motor draws 26 W at full load, which corresponds to a current of 1.1 A at 24 V. The power cable is equipped with a DC connector and both outlets feature brass fittings for a hose size of 14 mm. The liquid can be lifted up to seven metres above the pump, with the flow gradually decreasing as the lift height increases. The black body has side feet with holes, and thanks to the IP68 rating, it can operate submerged.
- Flow reaches 800 l/h at a DC voltage of 24 V
- Liquid lift up to seven metres above the pump level
- Current draw of 1.1 A corresponds to a power consumption of 26 W
- The cable is fitted with a DC connector for connection to the power source
- Brass hose fittings are present on both outlets

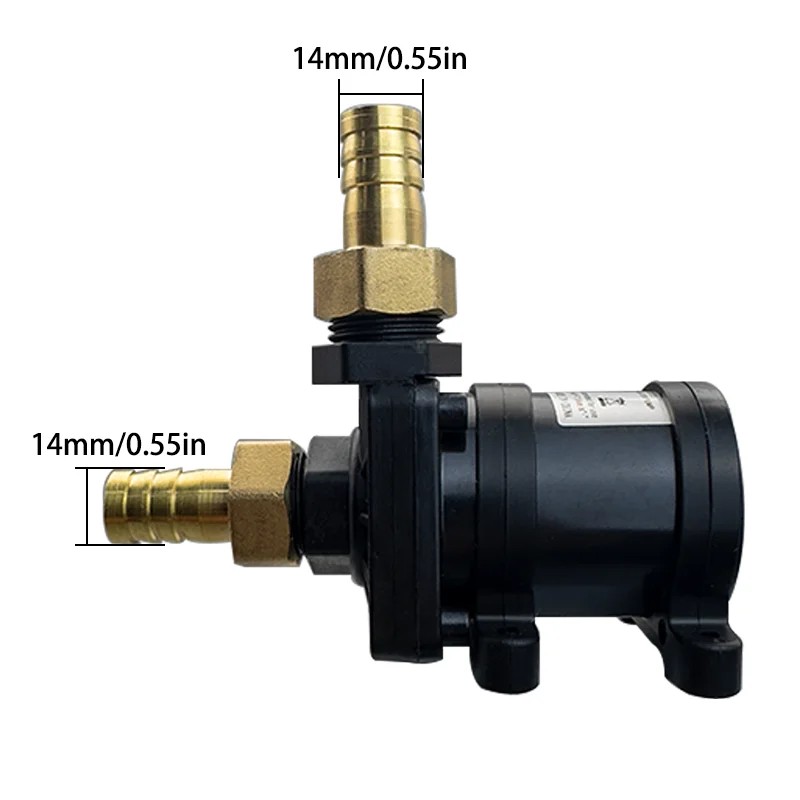

- Outlet size of 14 mm corresponds to 0.55 inches
- Each outlet is secured to the body with a nut
- The brushless motor is housed inside the body
- IP68 rating for operation of the entire body underwater
- Operating sound remains up to 35 dB
- Centrifugal pumping method with a closed impeller
- 316 stainless steel shaft operates in the pumping chamber
- Ambient and media temperature from -20 to 100 °C
- Permissible humidity up to 90 % around the operating pump
- Insulation has been tested at 1500 V for 60 seconds
- Water, alcohol, and diesel are among suitable pumped media
- Acidic and alkaline solutions must not be pumped with this pump
- Particles larger than 0.35 mm must be flushed from the chamber
- Motor lifespan exceeds 30,000 hours of continuous operation
- Side feet with holes are used for mounting with screws
- Power supply exclusively from a DC source within the specified range
- The pump must be fully submerged in liquid during operation
- Dry running is prohibited for this pump
- Both the body and mounting feet are black
- Outlets lead to two different sides of the body
- The power cable exits from the rear of the motor
- The connector allows the pump to be disconnected without dismantling wires
- The outlets point outwards from the body for easy hose routing
Contents of the package:
1x brushless pump
2x brass hose outlet 14 mm
The combination of the connector and push-fit outlets shortens installation time, as there is no need to connect individual wires or seal threaded joints. The 316 stainless steel shaft withstands prolonged contact with water, allowing the pump to endure long-term use in a tank. The 24 V voltage is suitable for setups with larger batteries or a compatible DC power supply. It is applicable for water heating, in ponds, in shower circuits, and for transferring between containers. Before switching on, it is essential to flood the chamber, and in clean liquid without coarse particles, the pump will last for hours of operation.
