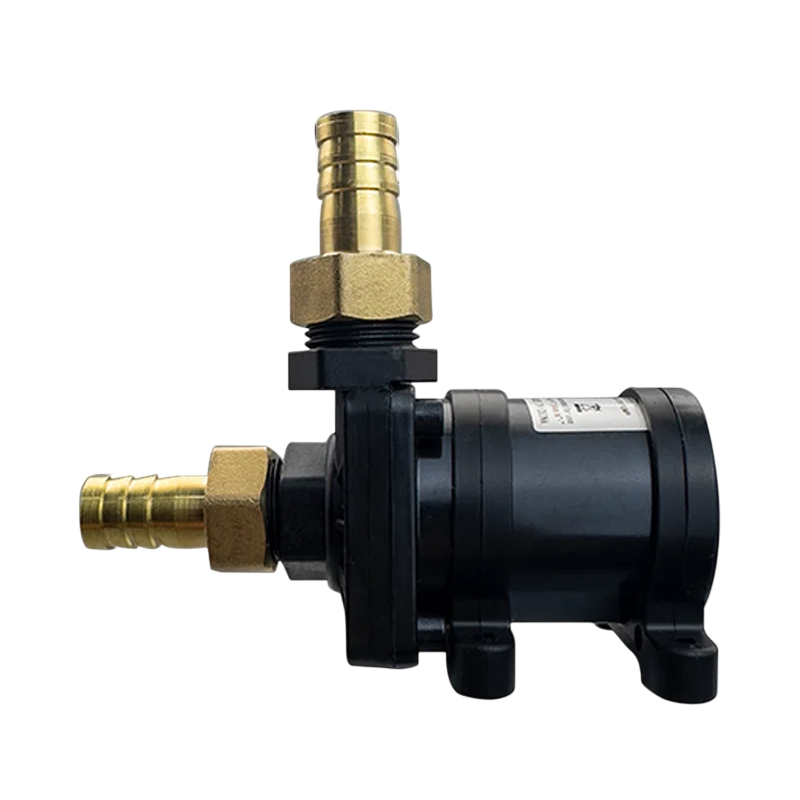

12 V Submersible Pump with Brushless Motor and 14 mm Hose Connectors for a Flow Rate of 700 l/h and a Lift of 5 m with IP68 Rating in Black
You already have the maximum available quantity in your cart.
The pump with a brushless motor is ready for circuits powered by 12 V and has brass connectors with a diameter of 14 mm fitted on both ends. A hose with the corresponding internal diameter can be attached, and the connection can be made without a threaded reducer. Power is supplied via loose wires, which can be connected directly to a battery or another DC source. The centrifugal impeller can pump up to 700 l/h and lift liquid to a height of 5 m with a power consumption of 14 W. The black body with side feet can withstand continuous operation underwater, as it has an IP68 rating.
- Flow rate reaches 700 litres per hour at a 12 V DC power supply
- Liquid can be lifted to a height of up to 5 m above the pump
- Power consumption of 14 W corresponds to a current draw of 1.4 A from the source
- Both the suction and discharge ports are fitted with brass hose connectors
- Connectors are held by lock nuts, allowing them to be unscrewed

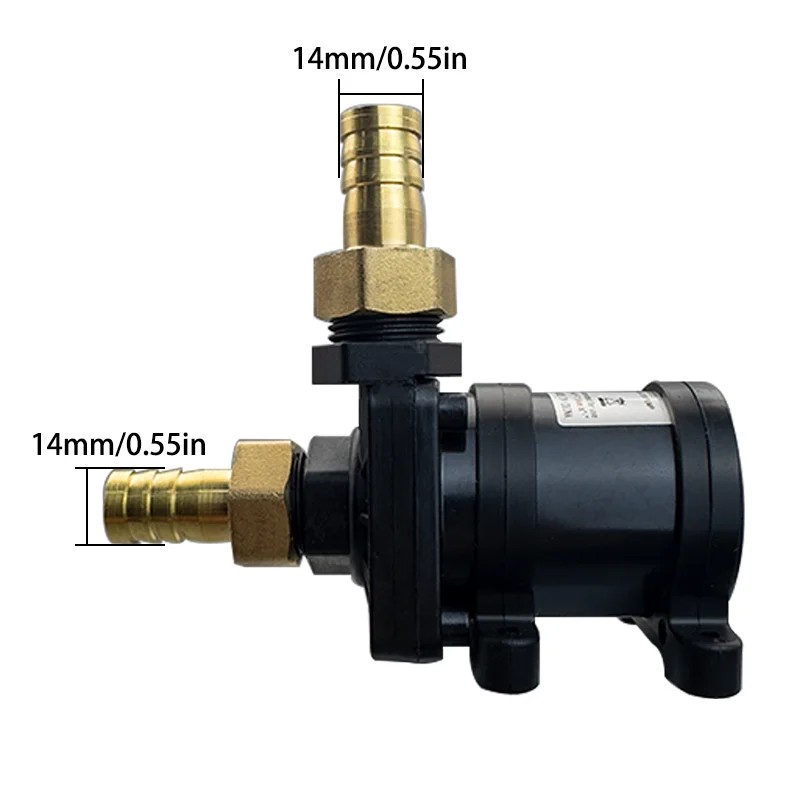

- Diameter of the connectors is 14 mm, which corresponds to 0.55 inches
- Power cable ends with loose wires without a connector
- Brushless motor has no carbon brushes that need to be replaced
- IP68 rating for operation of the entire body underwater
- Noise level during operation remains up to 35 dB
- Shaft is made of stainless steel 316 and is resistant to water
- Centrifugal design, where flow decreases with increasing lift height
- Ambient temperature and pumped liquid temperature from -20 to 100 °C
- Surrounding environment may have humidity up to 90 %
- Insulation has passed a voltage test of 1500 V lasting 60 seconds
- Suitable media include water, alcohol, and diesel
- Acidic and alkaline solutions must not be pumped
- Particles and impurities larger than 0.35 mm must be regularly cleaned from the chamber
- Service life exceeds 30,000 hours of operation
- Side feet with holes are used for fastening with screws to a base
- Connection exclusively to a DC source within the specified voltage range
- The pump is not self-priming and must be submerged
- Dry operation is prohibited for this pump
- Body and feet are in black finish
- Ports are oriented in different directions, facilitating hose routing
- Cable exits from the rear of the motor body
Contents of the package:
1x brushless pump
2x brass hose connector 14 mm
The combination of low consumption and a flow rate of 700 litres per hour makes sense where only a battery or a smaller DC source is available. The hose connection speeds up installation, as it is simply a matter of sliding the hose onto the connector without needing to address thread sealing. It can be used in circuits for water heating, in small fountains, for cooling electronics, and for transferring between containers. Loose wires facilitate connection through a switch, fuse, or regulation that the assembly requires. Before switching on, it is essential to fill the chamber with liquid, and with clean water free of coarse impurities, the pump can withstand long hours of continuous operation.
