12 V Pressure Membrane Pump with Filter, 216 W Power, 70 PSI Pressure and 18.93 l/min Flow Rate in Black and Orange
You already have the maximum available quantity in your cart.

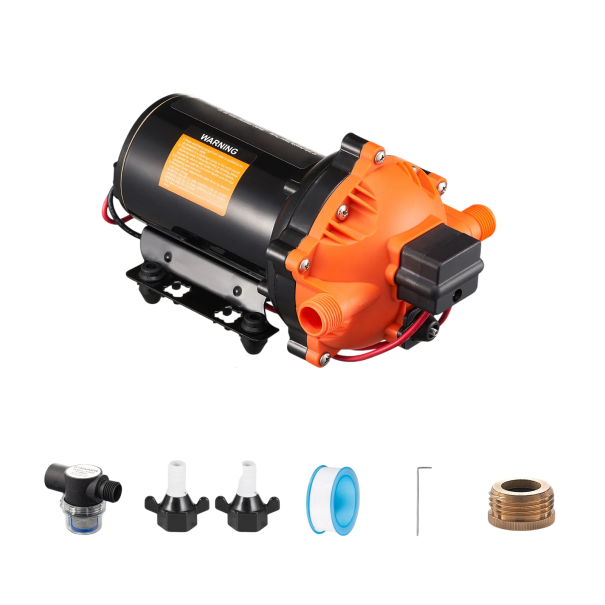

Where there is a need to move a large volume of water while maintaining pressure in the distribution, small twelve-volt pumps are insufficient. This membrane pump operates at 12 V with a power of 216 W and achieves a pressure of 70 PSI, approximately 4.8 bar. The maximum flow rate is 18.93 litres per minute, which is 5 gallons per minute or approximately 1136 litres per hour. The assembly measures 222 x 148 x 129 mm, has an orange pumping head and a black motor on a mounting plate. Both the inlet and outlet have a 1/2 inch external thread and the package also includes a mesh filter for the suction side.
Key Features:
- Flow rate of 18.93 l/min — approximately 1136 litres of water per hour of continuous operation
- Pressure of 70 PSI — equivalent to about 4.8 bar and maintains pressure even in larger household systems
- Power of 216 W — the strongest motor among twelve-volt models in this range
- 12 V Power Supply — operates from a battery, inverter, or DC source
- 1/2 inch Thread — external MNPT thread with an external diameter of 20.955 mm
- Ports on the Head — inlet and outlet emerge from the orange pumping head opposite each other
- Mesh Filter — a transparent container with a mesh screws onto the suction port of the pump
- Two Hose Adapters — transition from thread to hose barb with a black wing nut
- Copper Hose Adapter — metal reducer for connecting a standard garden hose
- Sealing Tape — roll of white tape for sealing threaded connections on the ports
- Dimensions 222 x 148 x 129 mm — the assembly takes up some shelf space or the bottom of a technical cabinet
- Mounting Plate — metal plate under the motor with holes and rubber silent blocks
- Power Leads — red and black wires coming from the top of the motor body
- Membrane Construction — the pumping part is designed as a closed membrane head
- Off-grid Operation at 230 V — the pump runs on low DC voltage from the source
- Black and Orange Design — orange pumping head and black motor casing
Package Contents:
- 1x membrane pump
- 1x filter
- 2x hose adapter
- 1x copper hose adapter
- 1x sealing tape
The pump targets more demanding systems where both volume and pressure are required, and only a twelve-volt power source is available. The flow rate of 18.93 l/min is the main difference compared to weaker models, as it can serve more outlets. The mesh filter included protects the pump from the first connection and does not need to be purchased separately. Two hose adapters and a copper reducer cover common ways of connecting hoses along with the sealing tape. Once the filter, hoses, and power leads are connected to the source, the assembly is ready for immediate operation.
