12 V Pressure Membrane Pump with 60 W Power and 60 PSI Pressure, 1/2 Inch Threads and 6.81 l/min Flow Rate in Black-Orange Colour
You already have the maximum available quantity in your cart.

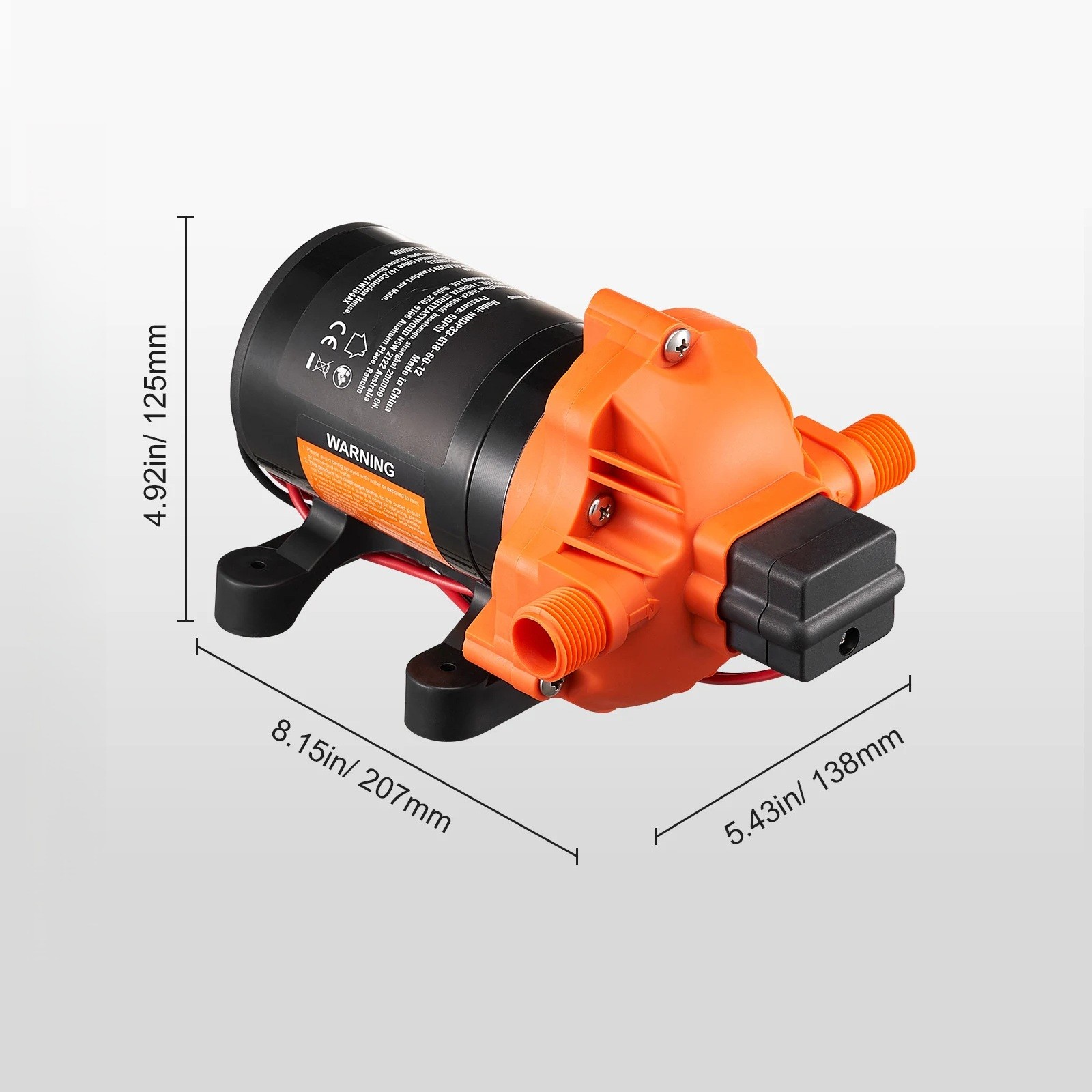

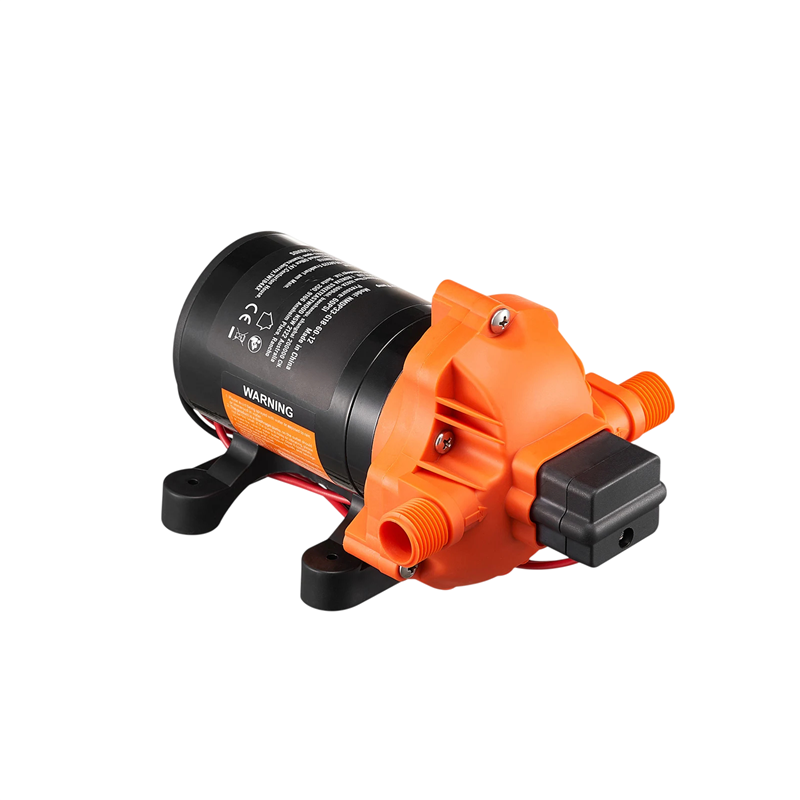

Water distribution outside of the public water supply relies on a pump that maintains constant pressure in the pipes even over longer distances. This membrane pump operates on 12 V with a power consumption of 60 W and generates a pressure of 60 PSI, which is approximately 4.1 bar. The maximum flow rate is 6.81 litres per minute, equivalent to 1.8 gallons per minute or approximately 409 litres per hour. The assembly measures 207 x 138 x 125 mm, features an orange pump head and a black motor body with four mounting feet. Both the inlet and outlet are finished with a 1/2 inch external thread with an outer diameter of 20.955 mm for standard fittings.
Key Features:
- Pressure 60 PSI — approximately 4.1 bar and maintains pressure even in longer pipe runs
- Flow Rate 6.81 l/min — approximately 409 litres of water per hour of continuous operation
- Unit Conversion — 1.8 gallons per minute corresponds to 6.81 litres of water per minute
- Power Consumption 60 W — consumption tailored for a twelve-volt DC power source
- Power Supply 12 V — operates from a battery, inverter or mains adapter
- 1/2 Inch Thread — external MNPT thread with outer diameter of 20.955 mm on both ports
- Inlet and Outlet with Thread — both ports are threaded and do not fit onto a hose barb
- Ports on the Head — both inlet and outlet emerge directly from the orange pump head
- Dimensions 207 x 138 x 125 mm — the assembly takes up only a small space on a shelf or the bottom of a technical cabinet
- Four Mounting Feet — black feet with holes on both sides of the motor body
- Position on Feet — the pump stands horizontally on four plastic feet
- Membrane Construction — the pumping section is designed as a closed membrane head
- Power Wires — red and black wires running along the black body of the pump
- Off-Grid Operation 230 V — the pump does not require mains voltage or a transformer
- Compact Assembly — the motor with the pump head forms a single solid unit
- Black-Orange Design — the orange pump head contrasts with the black motor
Package Contents:
- 1x membrane pump
The pump targets systems where constant pressure is needed and only a twelve-volt power source is available. 1/2 Inch Thread on both ports is practical as it is a standard size for plumbing fittings. The pressure of 60 PSI along with a flow rate of 6.81 l/min provides a reserve for longer runs and multiple outlets. Dimensions 207 x 138 x 125 mm allow the assembly to be installed in a cabinet or technical shaft. After screwing on hoses and connecting the two wires to the power source, the pump is ready for operation.
