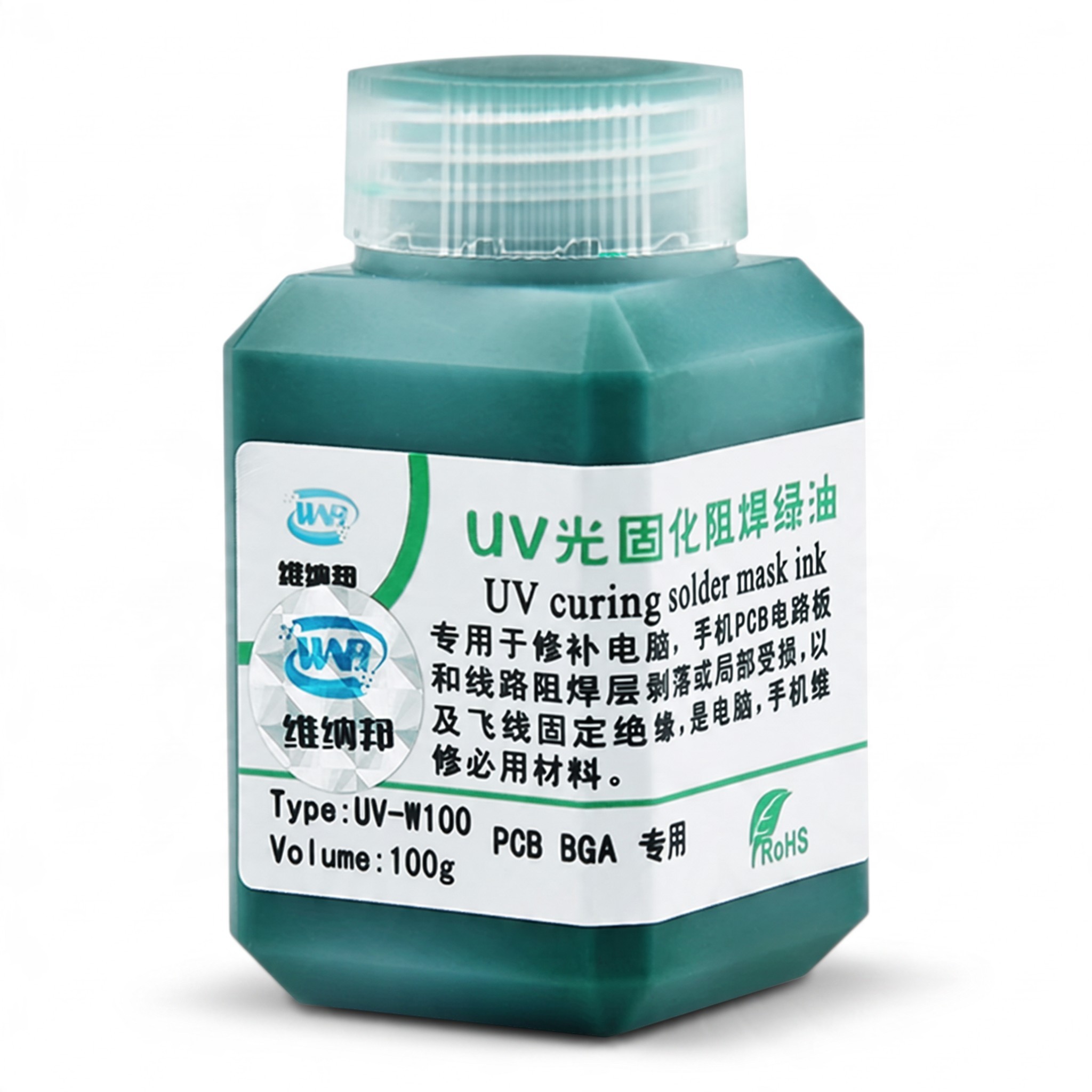

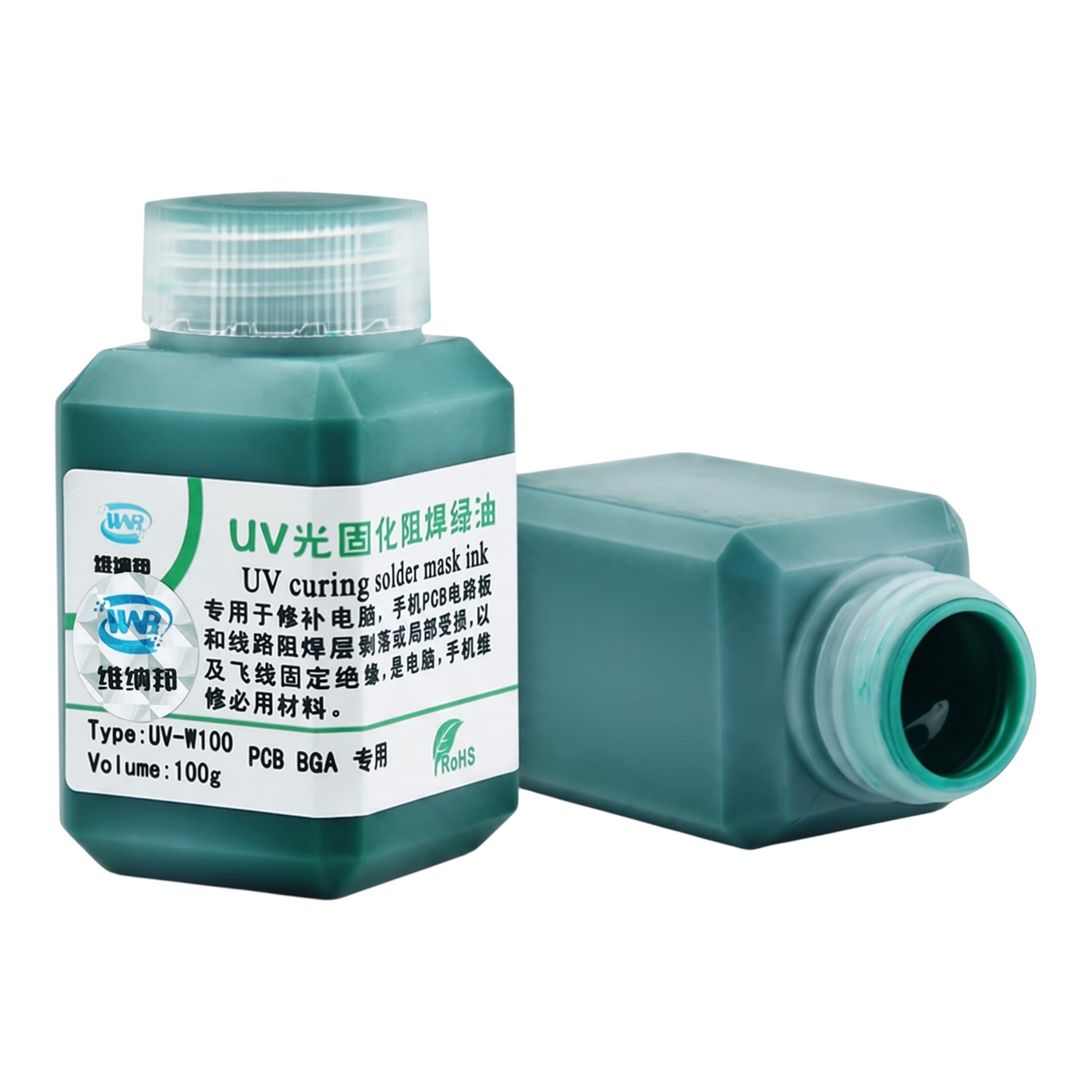

UV Non-Solder Mask UV-W100 100 g Green Coating for Printed Circuit Boards Bottle 7.3 x 4 cm UV Light Curing For Repairing PCB and BGA Boards
You already have the maximum available quantity in your cart.
The green coating is used to repair the non-solder mask on printed circuit boards, which is the protective layer that often gets scratched or peeled off during repairs. The bottle contains 100 g of coating, which is sufficient for a large number of repairs when applied with a brush or needle. The coating cures under ultraviolet light, so it remains liquid until exposed to a UV lamp, giving you ample time for precise application. Once cured, it forms a hard insulating layer that protects conductive paths from short circuits and moisture. The green shade matches the colour of standard printed circuit boards, making the repair inconspicuous.
- Repair of Non-Solder Mask — the coating restores the scratched or peeled protective layer in the area where damage occurred during component removal.
- Insulation of Wire Connections — secures and insulates wire connections, preventing them from loosening or shorting against adjacent paths.
- Quick Curing — a brief exposure to a UV lamp is sufficient for the coating to harden; there is no need to wait for drying.
- Working with BGA — it is useful for repairing boards with BGA packages, where the space between pads is very small.
- Hard Layer — the cured coating withstands mechanical abrasion and subsequent heating during soldering nearby.

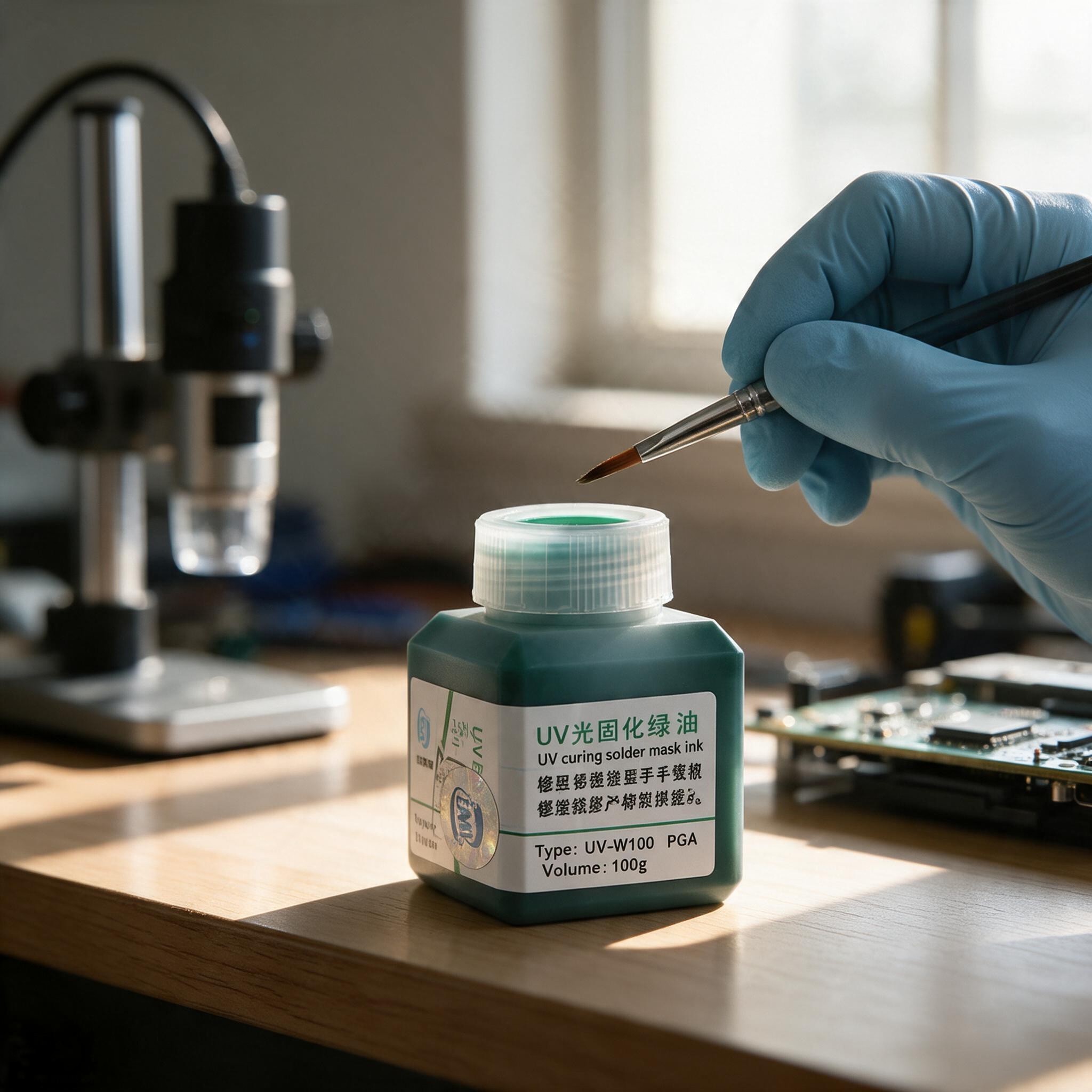

- Precise Application — the coating can be applied with a brush, needle, or pointed tool only to the area being repaired.

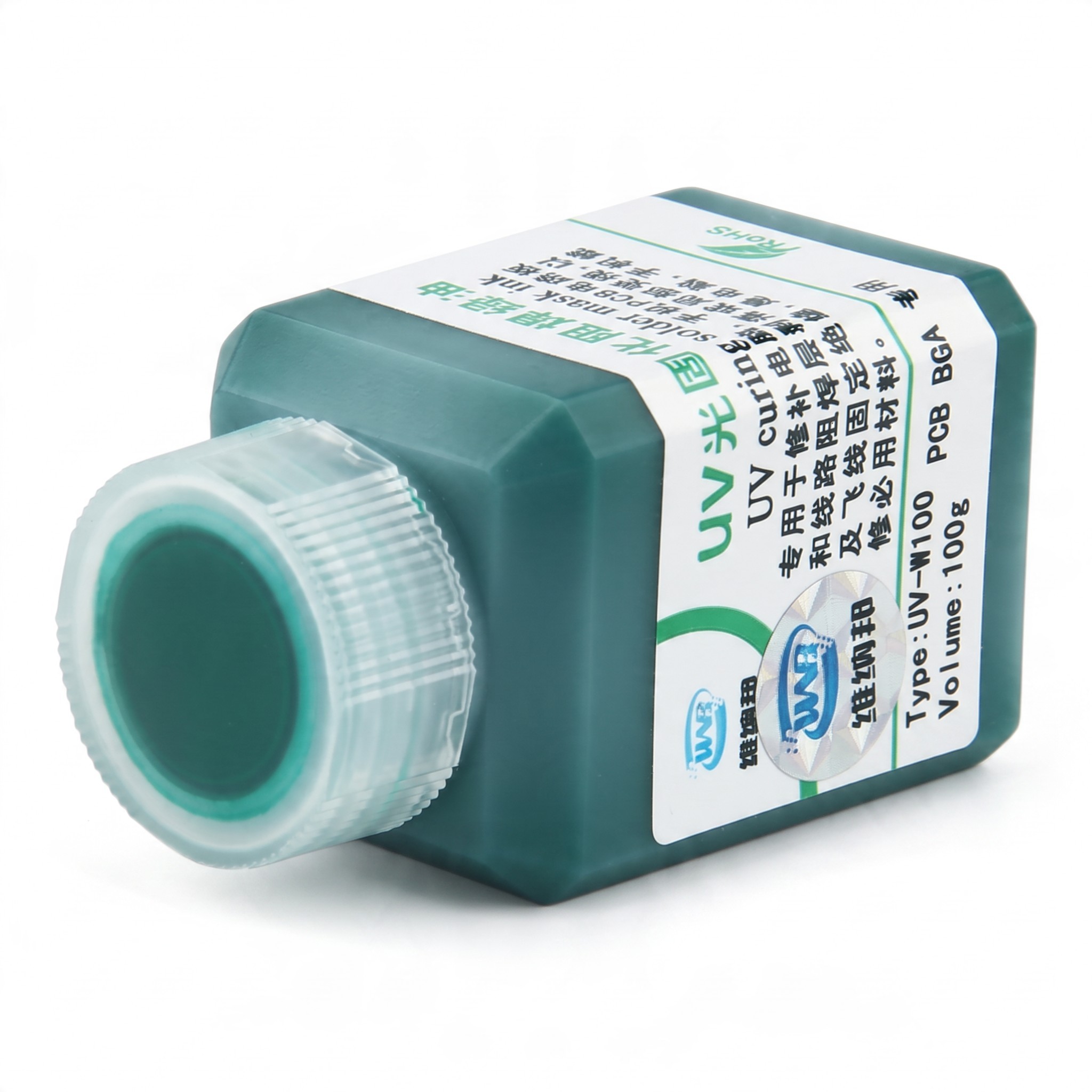

- Dimensions of the Bottle — the bottle measures 7.3 x 4 cm and is sealed with a screw cap.
- Contents of the Package — 1x bottle of UV non-solder mask 100 g
The coating is useful for repair technicians of mobile phones, laptops, and service technicians working with printed circuit boards. The surface must be cleaned of flux and grease before application; otherwise, the coating will not adhere and will peel off after curing. It is better to apply a thinner layer and expose it multiple times than to apply one thick layer, as UV light may not penetrate thick coating all the way to the bottom. The bottle measuring 7.3 x 4 cm fits into a service bag and does not take up much space on the table. Store the bottle closed and away from direct light to prevent premature curing of the contents.
