Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics
Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics 1
Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics 1
Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics 2
Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics 3
Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics 4
Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics 5

Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics

Probe sondes with hook measure voltage directly on the wire without stripping. They fit onto 4 mm banana plugs of multimeter test leads. Set of 2 pcs. Full description
In stock
€18.73
Safe shopping Safe shopping
Overview
Probe Sondes for Automotive Multimeter 2 pcs 30 V with Hook and Needle for 4 mm Banana Plugs Red and Black Diagnostic Tool for Automotive Electronics

Probe sondes for automotive multimeters are diagnostic tools for measuring voltage and continuity directly on wires in vehicles. The wire is caught in the hook at the end of the probe, and the thin needle penetrates the insulation to the core of the cable, so you do not need to strip the wire or disconnect it. The sondes fit onto the banana plugs of multimeter test leads, extending its measuring tips. They are designed for voltages up to 30 V, which corresponds to low-voltage circuits, such as a car's electrical system. The set includes two sondes in red and black for easy polarity differentiation.

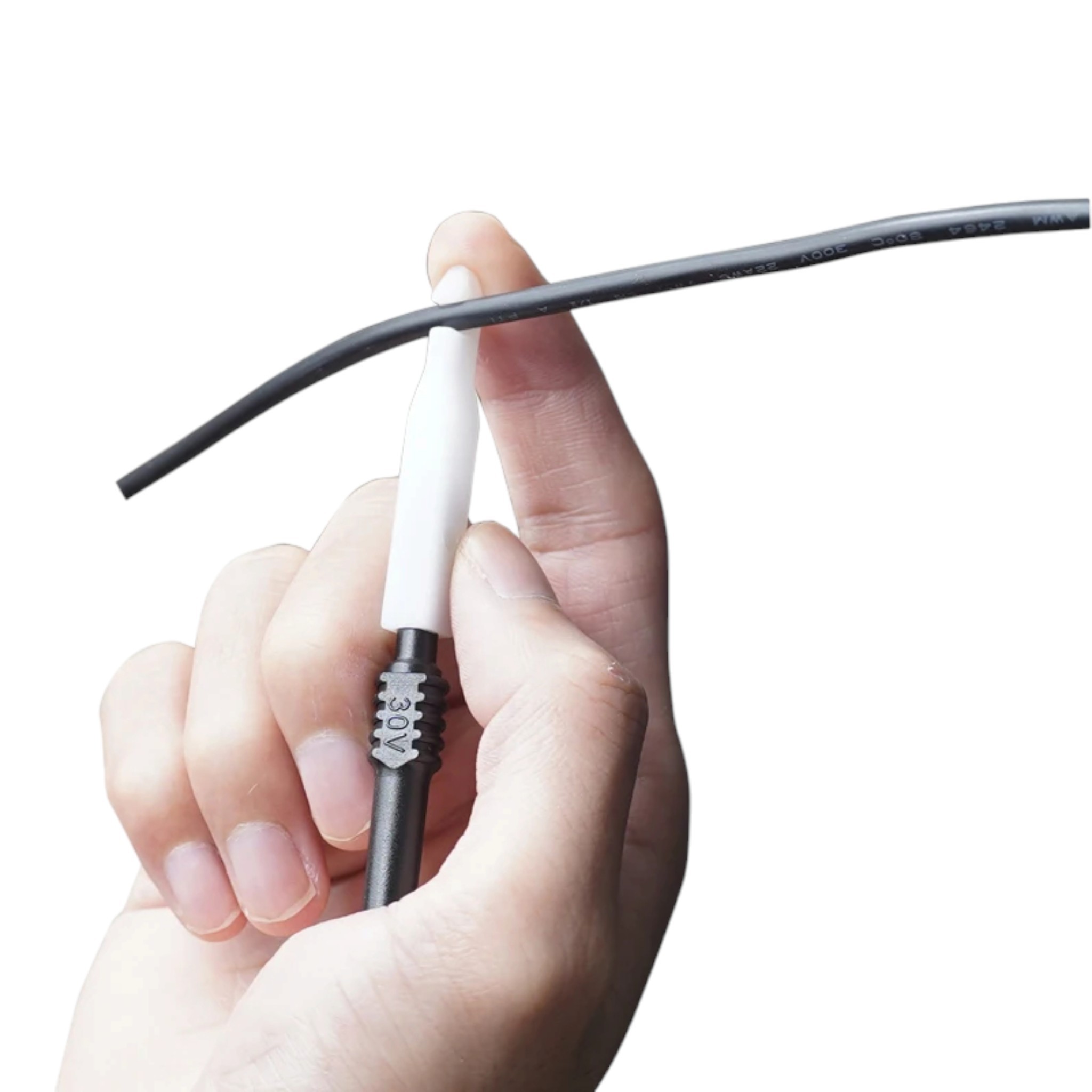

  • Probe Hook with Needle — The wire is inserted into the hook at the end of the probe, and the fine metal needle punctures the insulation to the core. After removal, only a small hole remains in the insulation, and the wire does not need to be re-insulated.
  • Voltage 30 V — Each probe is marked with the value 30 V on its body. Therefore, the sondes are suitable for measurements in low-voltage circuits, such as the electrical installation of a car or motorcycle.
  • Connection to 4 mm Banana Plugs — The lower part of the probe consists of a socket with a diameter of 4 mm, into which you can insert both covered and uncovered banana plugs of the test lead. The wire cannot be directly soldered or screwed to the probe.

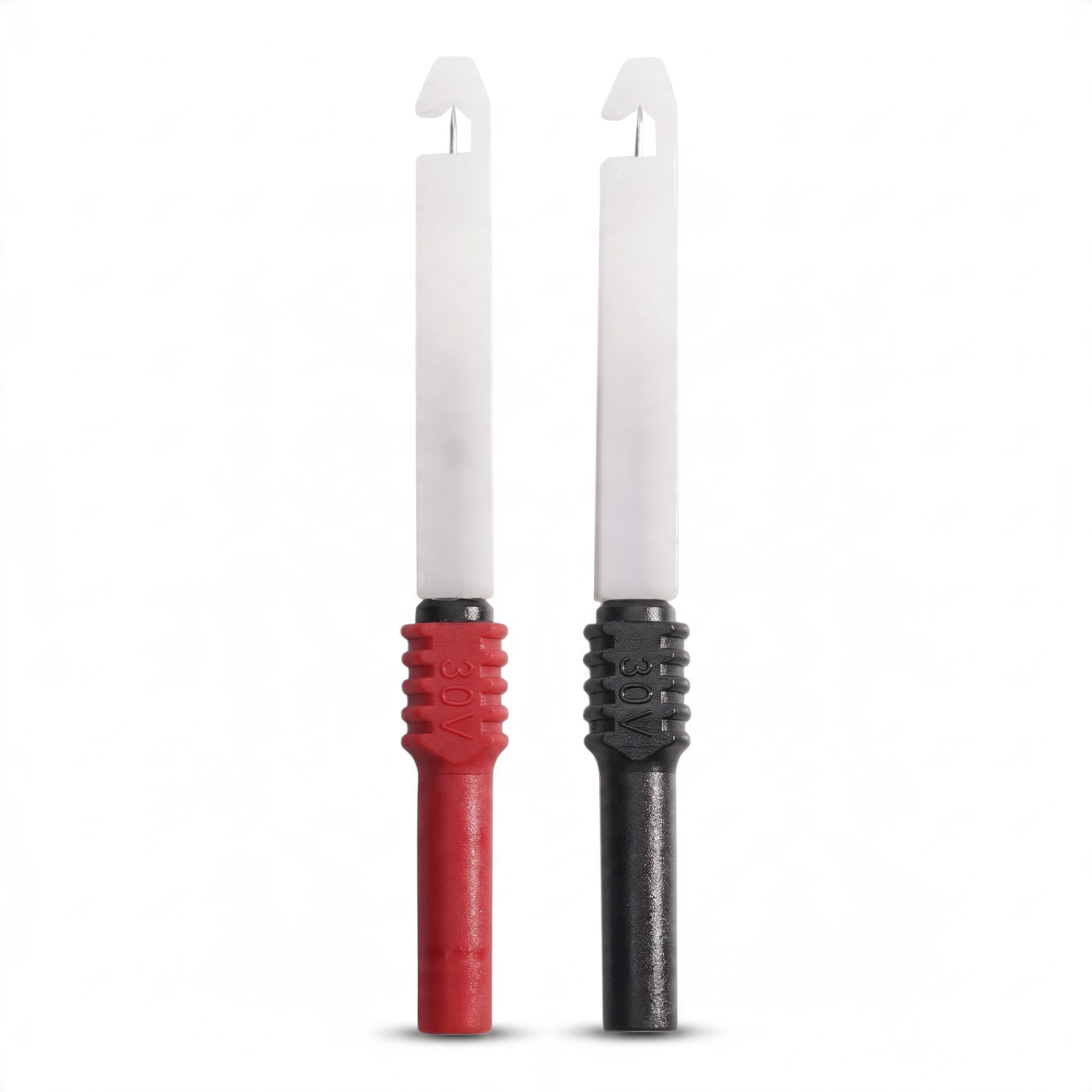

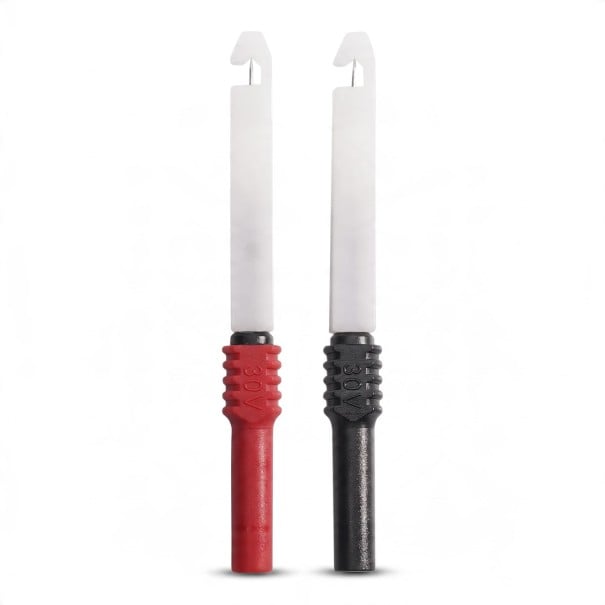

  • Red and Black Colour — The set includes one red and one black probe. This easily distinguishes the positive and negative terminals when connecting to the multimeter test leads.
  • Insulated Body — The white plastic cover protects the needle along its entire length and safeguards fingers when working with the wire. The ribbed grip is comfortable to hold, and the probe does not slip in your hand.
  • Accurate Measurement — The needle touches the core of the wire directly, allowing the multimeter to measure the actual value in the circuit. You can use the sondes for measuring voltage, resistance, and continuity.
  • Easy to Use — Attach the sondes to the multimeter test leads, red to the positive and black to the negative lead. Then, catch the wire in the hook, gently press to allow the needle to penetrate the insulation, and read the value on the display.
  • Compact Size — The sondes are short and slim, making it easy to access wires in the engine compartment and behind the dashboard. They fit into the bag with the multimeter or into your pocket.

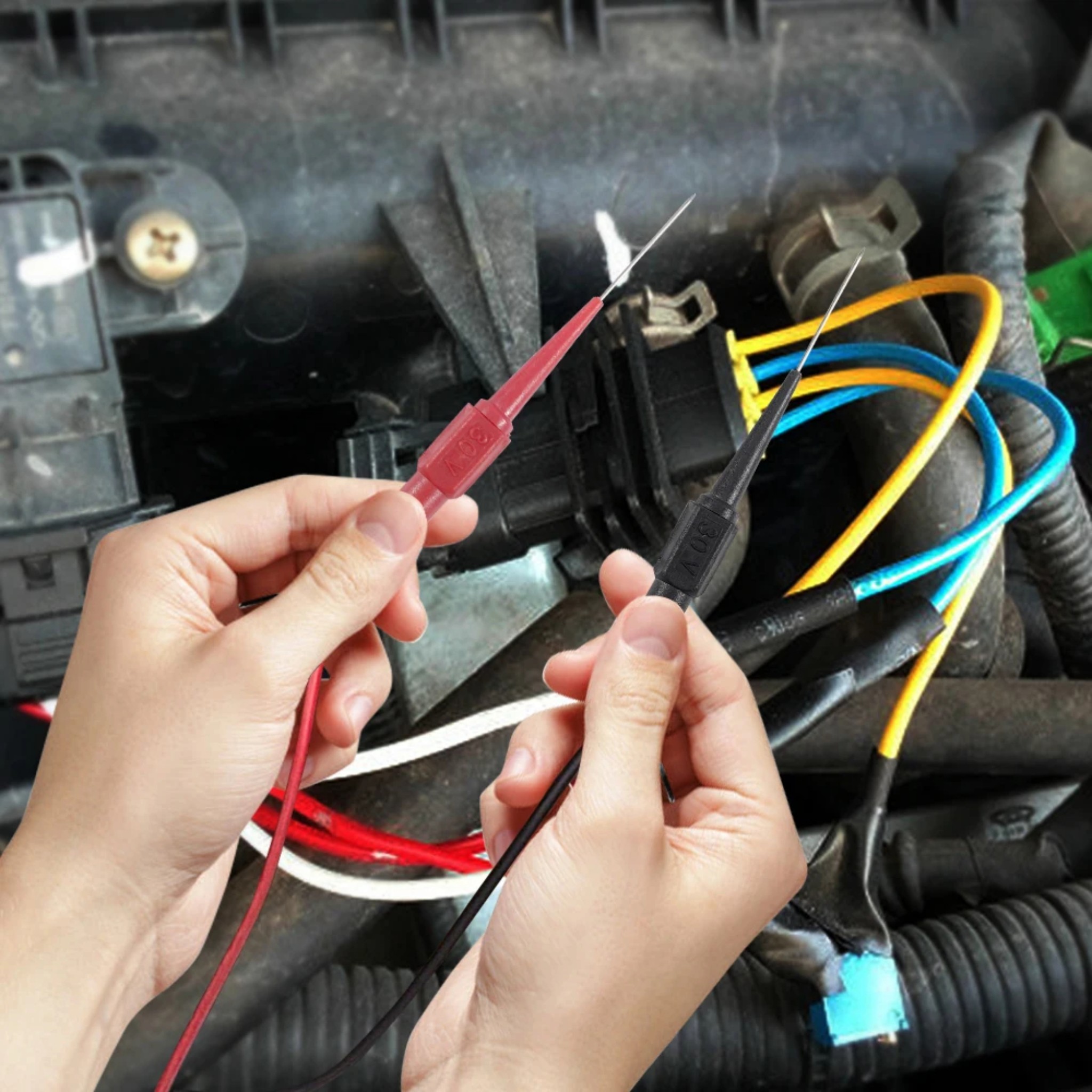

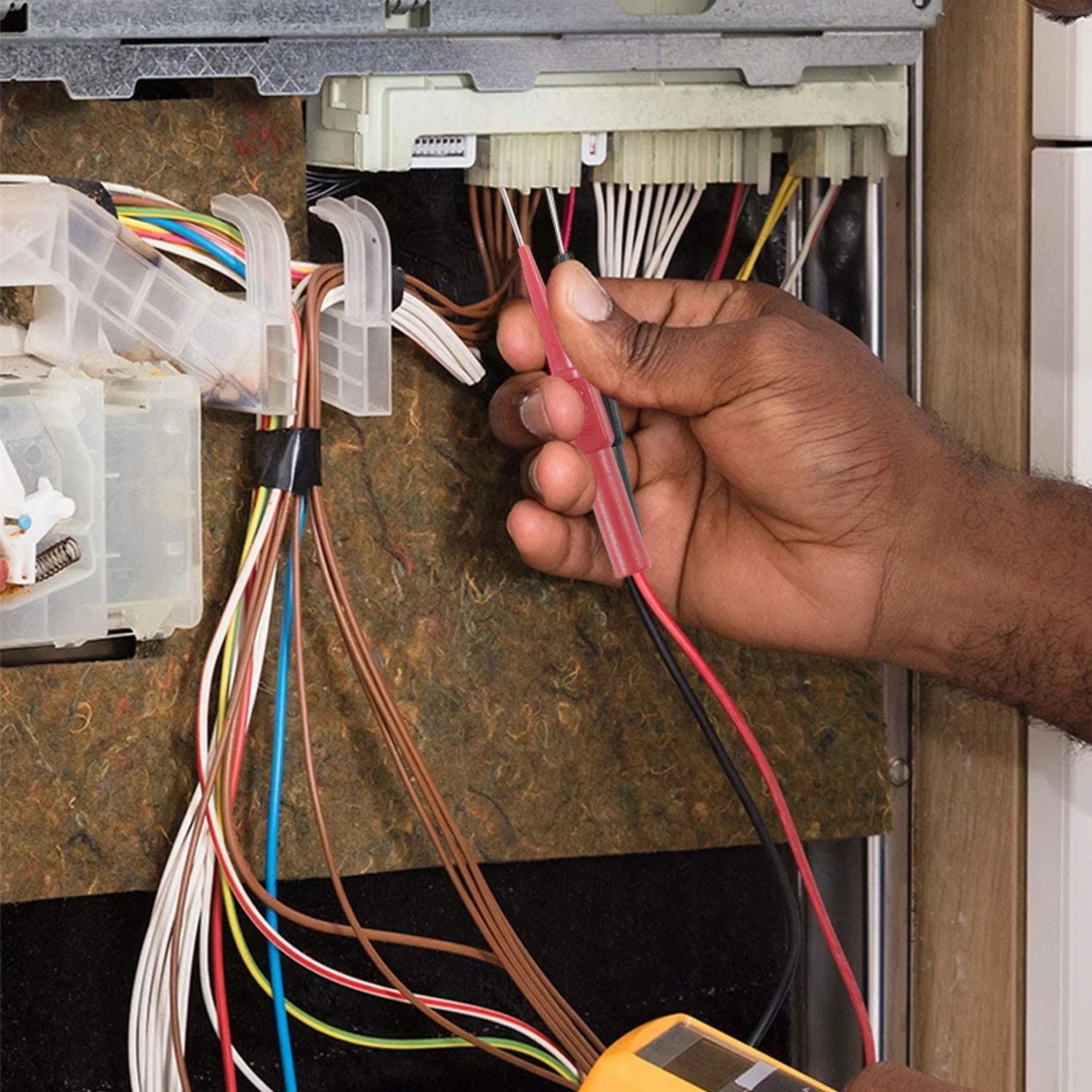

  • Usage — The sondes are useful for diagnosing automotive electronics, locating faults in wiring harnesses, checking power to sensors and lights, and for repairing electronics in household appliances.
  • Package Contents — 1x probe sonde with hook red, 1x probe sonde with hook black

Probe sondes with hooks are a practical addition to any automotive multimeter. They allow you to measure voltage and continuity directly on the wire without stripping and without disconnecting the wiring harness. The red and black colours facilitate correct connection to the test leads. The sondes are designed for low-voltage circuits up to 30 V, such as a car's electrical installation. They are suitable for mechanics, auto electricians, and DIY enthusiasts who want to troubleshoot electrical issues themselves.
