Hot Water Circulation Pump 220 V Flow 56 l/min Head 6 m Three Speeds Power 46 to 93 W IP44 Red for Heating and Water
You already have the maximum available quantity in your cart.

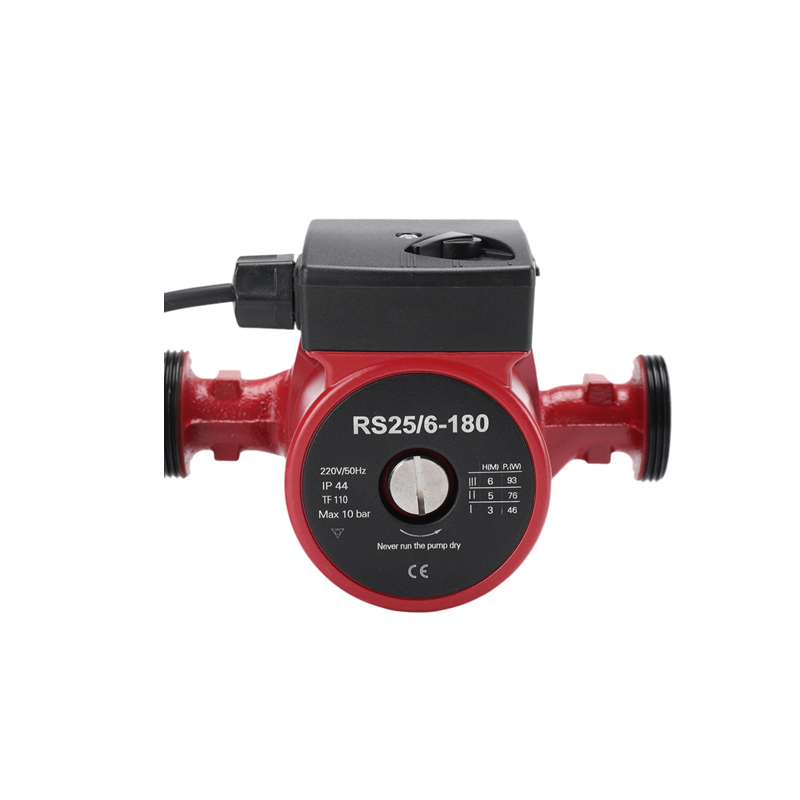

The circulation pump ensures the circulation of water in the heating circuit as well as in the hot water distribution. It is powered from the mains 220 V at 50 Hz and the maximum flow rate reaches 56 l/min with a maximum head of 6 m. A rotary switch allows you to select three speed settings with a power consumption of 46, 76 or 93 W. The maximum operating pressure is 10 bar, the protection rating is IP44, and the temperature class is TF 110. The pump body is red with a black terminal box and a power cable with a plug.
Features:
- Maximum flow rate 56 l/min — water circulation in the distribution.
- Maximum head 6 m — head at the highest setting.
- Power supply 220 V and 50 Hz — connection to a standard mains supply.
- Three speed settings — 6 m at 93 W, 5 m at 76 W and 3 m at 46 W.
- Switch on the terminal box — selection of speed setting via a rotary control.
- Built-in electronic sensor — part of the pump control.
- Maximum pressure 10 bar — operating pressure in the system.
- Protection rating IP44 — protection against splashing water.
- Temperature class TF 110 — range for heating and hot water.
- Air vent screw — located in the centre of the motor face.
- Power cable with plug — connection without additional installation.
- Red colour — body with black terminal box.
Contents of the package:
- 1x circulation pump with power cable
The pump can be used in a family house, flat or cottage, both in the heating circuit, near the boiler and in the hot water distribution. Three speed settings allow you to adjust the performance according to the length of the circuit and the number of heating bodies, so the pump operates more economically on shorter circuits. Maximum pressure 10 bar provides a reserve even in systems with higher operating pressure. The power cable with plug shortens the installation time, as there is no need for a separate connection to the distribution board. The air vent screw on the motor face facilitates commissioning after filling the system.
