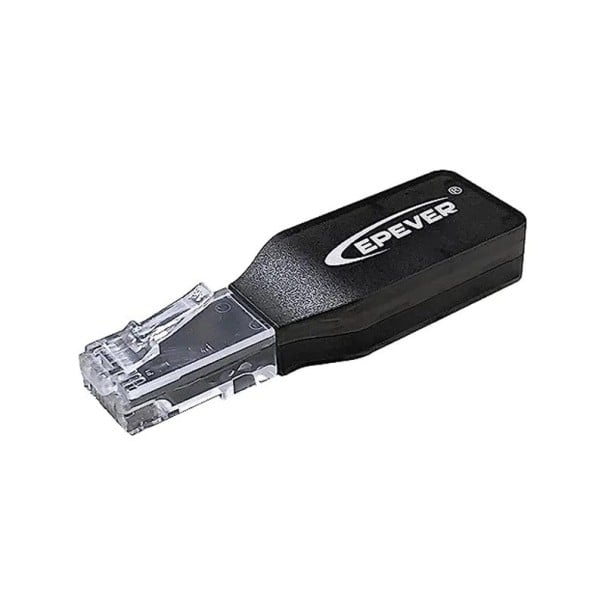

2.4 GHz WiFi Adapter for Solar Regulator RJ45 Connector Range 20 m Powered from Port 63 x 19 x 10 mm Black for Photovoltaics and Monitoring
You already have the maximum available quantity in your cart.
The WiFi adapter expands the solar charging regulator with wireless monitoring of operation. It plugs into the RJ45 connector and is powered directly from the communication port, so it does not require a separate power source. It operates in the 2.4 to 2.4835 GHz band and the communication range reaches up to 20 m. There are two operating modes — offline monitoring and data uploading to the cloud. Communication occurs via RS485 at a speed of 115200 Bps in 8N1 format. The body is black, compact, and weighs only 7.7 g.
Features:
- 2.4 to 2.4835 GHz Band — wireless communication in a standard network.
- RJ45 Connector — connection to the regulator with this interface.
- Powered from Communication Port — operating voltage 5 V ±0.5 V.
- 150 mA Peak Consumption — standby consumption 310 µA.
- Range up to 20 m — communication distance of the adapter.
- Two Operating Modes — offline monitoring and data uploading to the cloud.
- RS485 Communication — speed 115200 Bps in 8N1 format.
- IP30 Rating — design for indoor installation.
- Operating Temperature -40 to 85 °C — wide temperature range.
- Dimensions 63 x 19 x 10 mm — compact body.
- Weight 7.7 g — net weight of the adapter.
- Compatibility with XTRA, TRIRON and Tracer-AN Series — regulators supported in the mobile application.
- Black Colour — plastic body with a transparent connector.
Package Contents:
- 1x WiFi Adapter
The adapter can be used in a home photovoltaic system, at a cottage, in a caravan, or in a business where you want to monitor battery charging without physical inspection of the regulator. Powered directly from the communication port means that installation can be done without a socket or additional cable. The operating temperature of -40 to 85 °C allows installation even in an unheated technical room. Dimensions of 63 x 19 x 10 mm and a weight of 7.7 g do not obstruct even in a cramped distribution board. Before purchasing, ensure that your regulator has an RJ45 interface and meets the power supply requirements.
