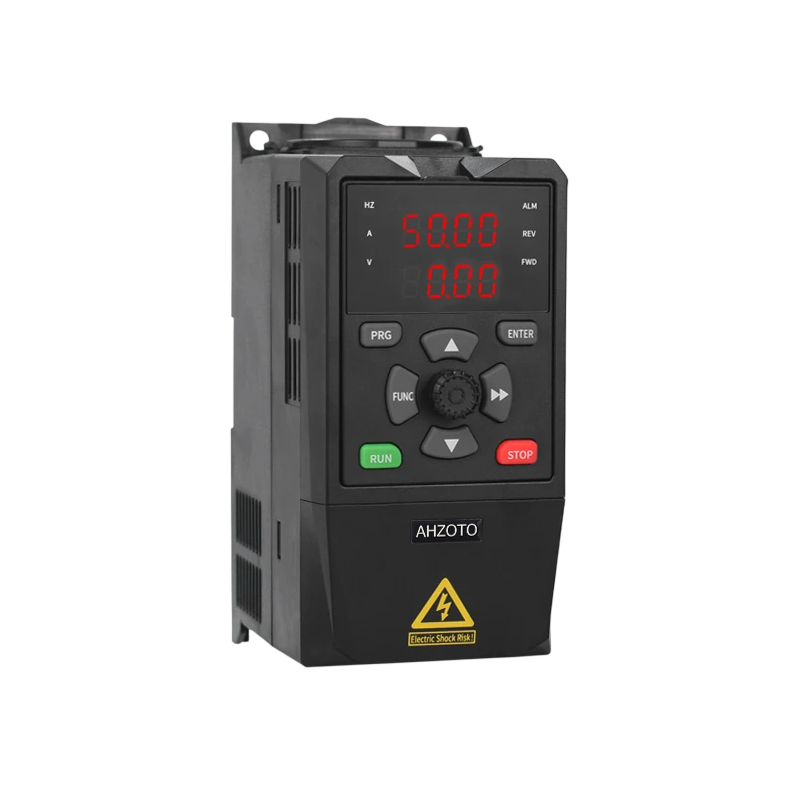

Frequency Inverter 0.75 kW Three-Phase Input 220 V Three-Phase Output 220 V Multi-Speed Control and Forward and Reverse Operation Black for Motor
You already have the maximum available quantity in your cart.
The frequency inverter with power of 0.75 kW is used for smooth regulation of the speed of a three-phase motor. It is powered from a three-phase 220 V network and delivers three-phase voltage of 220 V for the motor at the output. Inputs X1 to X5 can be set for forward and reverse operation, multi-speed mode, and stepping. The front panel features a dual-line display with buttons and a rotary knob, and the body is black. The inverter is suitable for drives where it is necessary to change the motor speed according to the load.
Features:
- Power 0.75 kW — speed control for smaller three-phase motors.
- Input Voltage 220 V — three-phase network.
- Three-Phase Output 220 V — powering the motor at terminals U, V, and W.
- Programmable Inputs X1 to X5 — up, down, forward, reverse, and other functions.
- Multi-Speed Mode — switching between preset speeds.
- Forward and Reverse Operation — changing the direction of motor rotation.
- Stepping Mode — fine rotation of the motor for adjustment.
- Dual-Line Display — showing frequency, current, and voltage.
- Rotary Knob — quick frequency setting directly on the panel.
- Control Buttons — PRG, ENTER, FUNC, RUN, and STOP.
- Status Indicators — ALM, REV, and FWD above the display.
- No Brake Resistor — brake resistor cannot be connected.
- Cooling Fan — heat dissipation at the top of the body.
- Black Colour — body with mounting elements.
Package Contents:
- 1x frequency inverter
The inverter can be used with pumps, fans, conveyors, machine tools, and other equipment with a three-phase motor where you need to smoothly regulate the speed. Three-Phase Input and Output 220 V makes the device suitable for operations with a three-phase 220 V network. Programmable Inputs X1 to X5 allow for controlling forward and reverse operation, switching between preset speeds, and stepping the motor. The rotary knob and buttons on the front panel facilitate setting and operation. The dual-line display shows frequency, current, and voltage directly on the device.
