Frequency Converter 1.5 kW Three-Phase Input 380 V Three-Phase Output 380 V Multi-Speed Control and Forward and Reverse Operation Black for Motor
You already have the maximum available quantity in your cart.
The frequency converter with power of 1.5 kW is used for smooth speed regulation of a three-phase motor. It is powered from a three-phase 380 V network and provides three-phase voltage of 380 V for the motor at the output. Inputs X1 to X5 can be set for forward and reverse operation, multi-speed mode, and stepping. The front panel features a two-line display with buttons and a rotary control, and the body is black. The converter is suitable for drives where it is necessary to change the motor speed according to the load.
Features:
- Power 1.5 kW — speed control for smaller three-phase motors.
- Input Voltage 380 V — three-phase network.
- Three-Phase Output 380 V — powering the motor at terminals U, V, and W.
- Programmable Inputs X1 to X5 — up, down, forward, reverse, and other functions.
- Multi-Speed Mode — switching between preset speeds.
- Forward and Reverse Operation — changing the direction of motor rotation.
- Stepping Mode — fine rotation of the motor for adjustment.

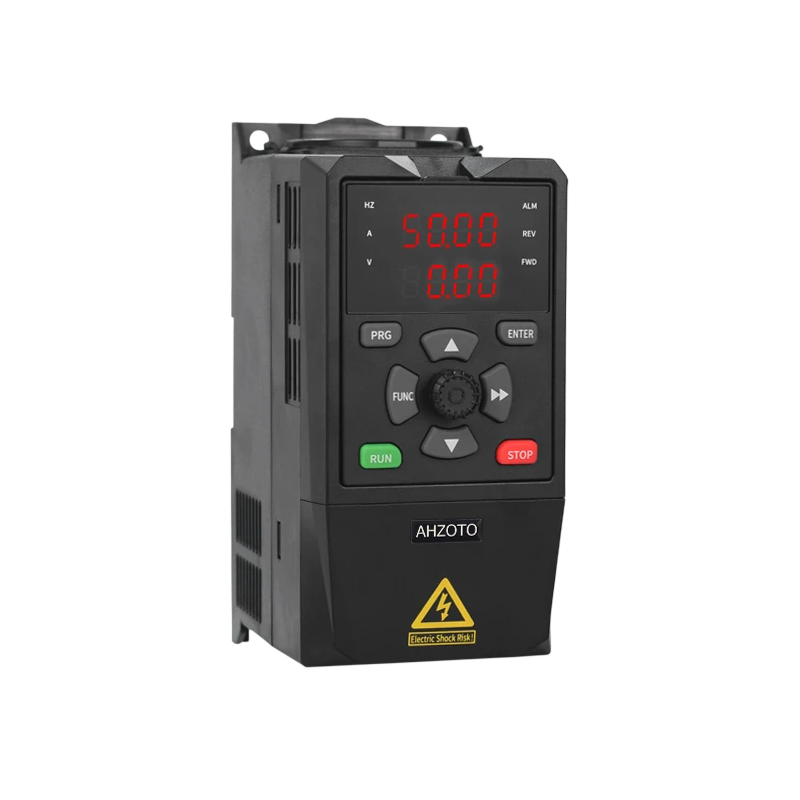

- Two-Line Display — displaying frequency, current, and voltage.
- Rotary Control — quick frequency setting directly on the panel.
- Control Buttons — PRG, ENTER, FUNC, RUN, and STOP.
- Status Indicators — ALM, REV, and FWD above the display.
- No Brake Resistor — brake resistor cannot be connected.
- Cooling Fan — heat dissipation at the top of the body.
- Black Colour — body with mounting elements.
Package Contents:
- 1x frequency converter
The converter can be used with pumps, fans, conveyors, machining machines, and other equipment with a three-phase motor, where you need to smoothly regulate the speed. Three-Phase Input and Output 380 V makes the device suitable for standard industrial distributions of 380 V. Programmable Inputs X1 to X5 allow control of forward and reverse operation, switching between preset speeds, and stepping the motor. The rotary control and buttons on the front panel facilitate setting and operation. The two-line display shows frequency, current, and voltage directly on the device.
