Frequency Converter 0.75 kW Single-Phase Input 220 V Three-Phase Output 220 V RS485 Interface and Brake Resistor Black for Motor and Pump
You already have the maximum available quantity in your cart.

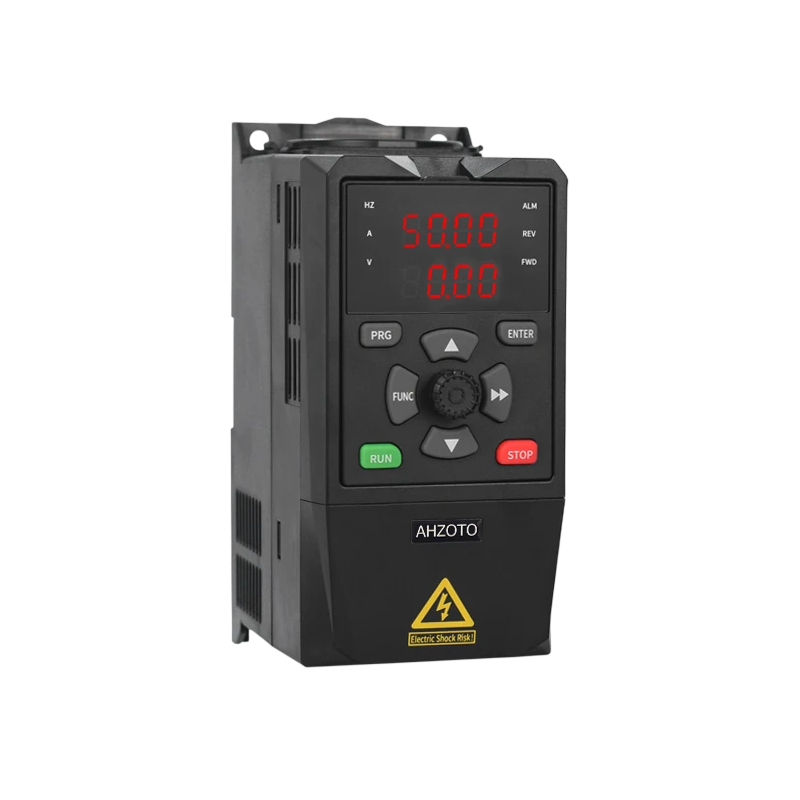

The frequency converter with power of 0.75 kW is used for smooth regulation of the speed of a three-phase motor. It is powered from a single-phase network of 220 V and delivers three-phase voltage of 220 V for the motor, allowing you to start a three-phase machine even where only a standard phase is available. A brake resistor can be connected to terminals PB and P+ for faster load stoppage. There is also an RS485 communication interface with terminals 485+ and 485-. The front panel features a two-line display with buttons and a rotary control, and the body is black.
Features:
- Power 0.75 kW — speed control for smaller three-phase motors.
- Input Voltage 220 V — connection to a single-phase network.
- Three-Phase Output 220 V — powering the motor at terminals U, V, and W.
- Terminals PB and P+ — connection for brake resistor.
- RS485 Interface — terminals 485+ and 485- for master control.
- Programmable Inputs X1 to X3 — up, down, forward, backward and other functions.
- Multi-Speed Mode — switching between preset speeds.
- Forward and Reverse Operation — changing the direction of motor rotation.
- Step Mode — fine rotation of the motor for adjustment.
- Two-Line Display — displaying frequency, current, and voltage.
- Rotary Control — quick frequency setting directly on the panel.
- Control Buttons — PRG, ENTER, FUNC, RUN and STOP.
- Status Indicators — ALM, REV and FWD above the display.
- Cooling Fan — heat dissipation at the top of the body.
- Black Colour — body with mounting elements.
Package Contents:
- 1x frequency converter
The converter can be used with pumps, fans, conveyors, machine tools, and other devices with a three-phase motor where you need to smoothly regulate the speed. Single-phase input of 220 V with three-phase output allows operation of a three-phase motor even in locations without a three-phase connection. The option to connect a brake resistor is useful for loads with high inertia that need to be stopped quickly. The RS485 interface allows the converter to be integrated into a master control system. The rotary control and buttons on the front panel facilitate setting and operation.
