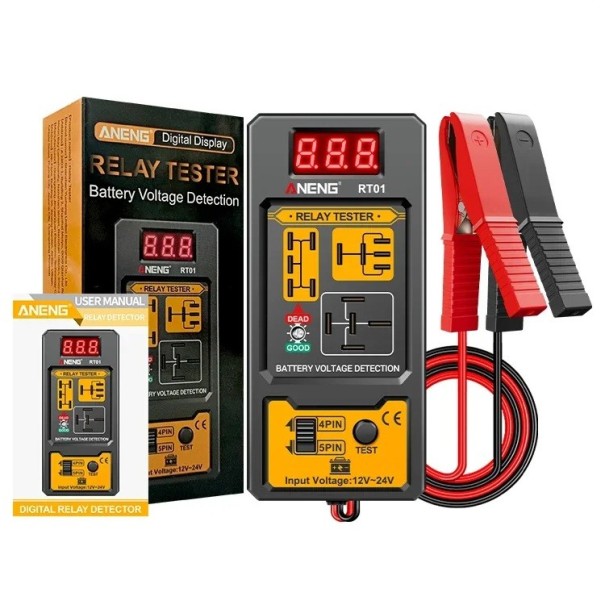

Digital Relay Detector with Display for 4PIN and 5PIN Relays Measuring Car Battery Voltage from 11 V to 25 V with 42 cm Yellow-Black Crocodile Clips
You already have the maximum available quantity in your cart.
When a pump, headlight, or air conditioning stops working in a vehicle, the relay is often one of the first components to check, but its condition cannot be determined by mere visual inspection. This digital relay detector combines two functions in one device, as it not only checks the relay but also measures the car battery voltage and displays the result numerically on the screen. The test evaluation is colour-coded, with green indicating a functioning relay and red indicating a faulty one, so the result can be recognised immediately without studying tables. The device works with relays that have four or five pins and draws power directly from the car battery, so it does not require any internal batteries. The voltage measurement range is from 11 V to 25 V, covering measurements on the battery during testing as well as the vehicle's idle state.
Switching between 4-pin and 5-pin configurations is managed by a sliding switch on the bottom of the panel, and the actual measurement is initiated by the TEST button next to it. Relays with coil resistance from 20 Ω can be tested, which corresponds to common components used in automotive wiring. The connection to the battery ends with a pair of crocodile clips with a length of 42 cm and a jaw opening of 2.1 cm, allowing easy access to both terminals even on batteries located deeper in the engine compartment. A 12V car battery is required for accurate measurement, with voltage within the specified range.
- Display with Numeric Data — instant display of the measured voltage value
- 4PIN and 5PIN Sliding Switch — setting according to the number of pins of the tested relay
- Colour Indication — green for acceptable relays and red for faulty ones
- Voltage Measurement from 11 V to 25 V — checking the status of the connected car battery
- Crocodile Clips with a Length of 42 cm — reach to battery terminals even in deeper positions
- No Internal Batteries — power drawn directly from the car battery
Package Contents:
1x digital relay detector with crocodile clips
The device is suitable for both the workshop and the car boot, as it saves time and costs in diagnosing faults by shortening the search for a problem that may not even be with the part. The combination of relay testing and voltage measurement provides a more comprehensive picture of whether the issue lies with the relay itself or rather with a weak battery. The yellow-black design with the display at the top is easy to find among tools, and the illuminated digits remain legible even in the dimness of the engine compartment. It will be appreciated by drivers of older vehicles, where relays are replaced more frequently, as well as anyone who performs minor repairs themselves and does not want to visit garages for a single component. The entire test requires only attaching the clips to the battery terminals and pressing a single button.
