Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding
Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding 1
Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding 1
Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding 2
Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding 3
Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding 4
Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding 5

Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding

The largest in the range can hold parts even when assembling heavier structures. The load capacity of 75 kg can handle square tubes and profiles without the need for hand support or additional clamps. Full description
In stock
€79.87
Safe shopping Safe shopping
Overview
Welding Magnet FM1-L Arrow Angles 45 and 90 Degrees Load Capacity 75 kg Dimensions 19.8 x 13.6 x 2.7 cm Blue For Welding

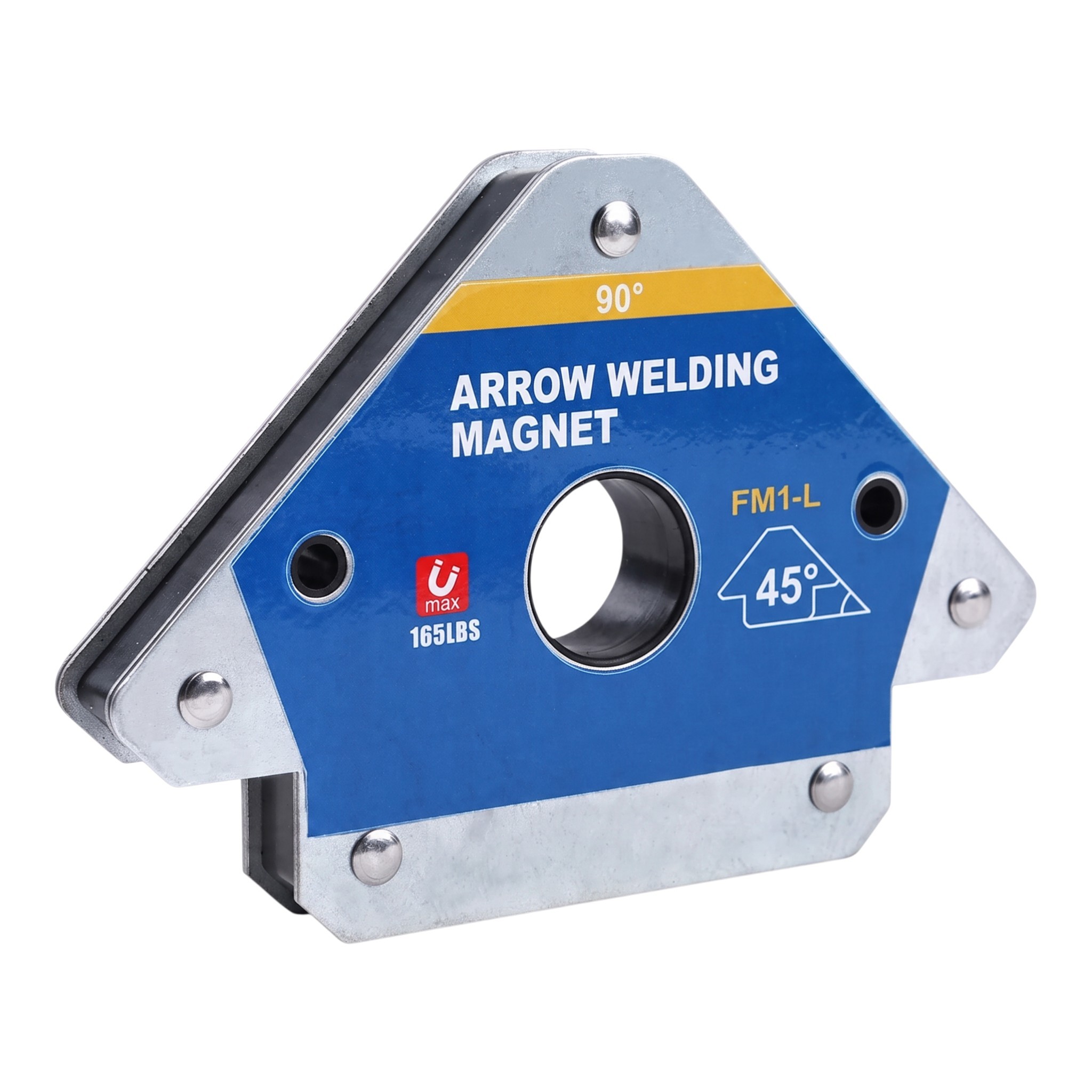

The largest arrow-shaped welding magnet in this range can hold even heavier parts when assembling structures, gates, and railings. The maximum holding force is 75 kg, so it can support thick-walled square tubes and profiles that a smaller magnet would struggle with. The magnet holds parts at angles of 45 and 90 degrees, which are the most common positions when welding frames. The blue body with a galvanised frame has recesses around the edge, allowing the edge of the profile to rest flat. The large central hole makes it easier to grip even with thick welding gloves.

  • Dimensions — the magnet measures 19.8 x 13.6 x 2.7 cm, so the longer arms better guide long profiles and reduce the risk of twisting.
  • Ferrite Magnet — the magnetic core is made of ferrite, which withstands normal temperatures around the weld better than neodymium magnets.
  • Contact Surfaces — the recesses on the edges ensure flat contact, so the part does not shift during welding.
  • Work Without Clamps — the magnet frees both hands for the torch and filler material even during larger assemblies.
  • Durable Body — the galvanised steel frame protects the core from impacts and splattering metal.
  • No Power Supply Required — the magnet does not need electricity or batteries and is always ready for use.
  • Combination of Pieces — a pair of magnets can hold even a long profile in a single plane along the entire length of the joint.
  • Package Contents — 1x welding magnet

Welders and locksmiths will find this magnet useful when producing gates, railings, structures, and frames from larger profiles. Holes in the body facilitate gripping and hanging, so you can comfortably remove and transport the heavier magnet. The holding force of 75 kg applies to clean and flat surfaces; it will be lower on rusty or painted sheets. After use, it is advisable to clean the magnet of slag and metal shavings, which can impair contact. For vertical and overhead assemblies, we recommend additionally securing the part with a clamp for safety.

Price incl. VAT €79.87
