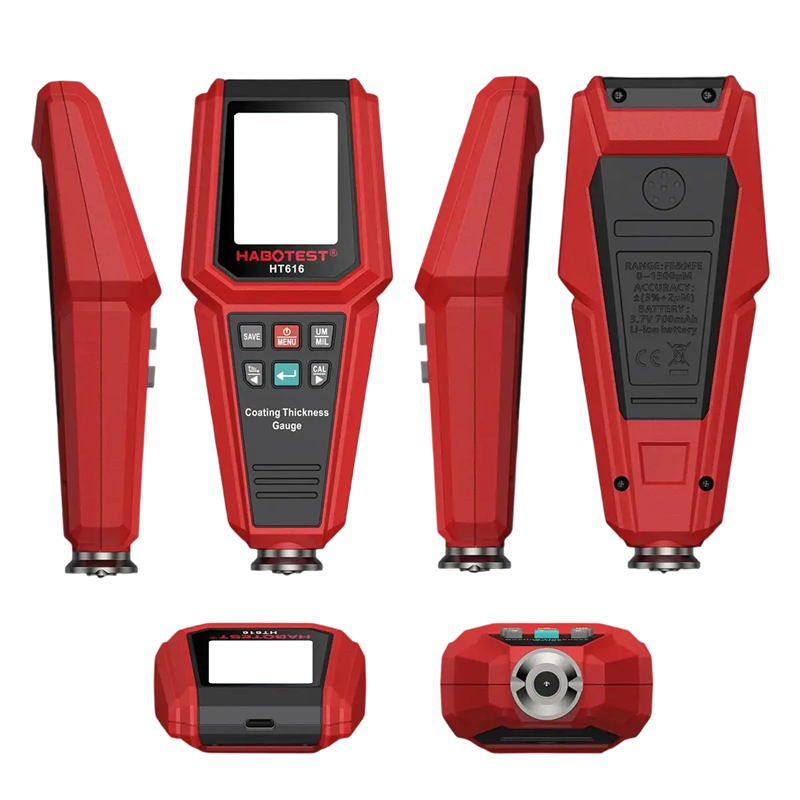

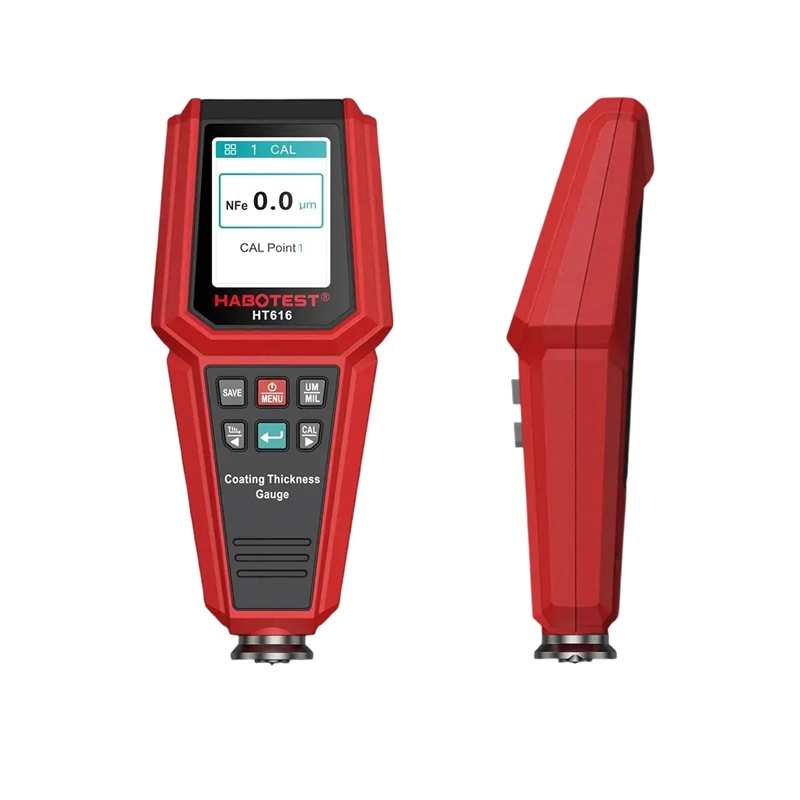

HABOTEST HT616 Car Paint Thickness Gauge Body Coating Tester Range 0-1500 μm for Iron and Aluminium with Colour Display Red
You already have the maximum available quantity in your cart.
The HABOTEST HT616 Car Paint Thickness Gauge is an accurate device for checking painted bodies, ideal when purchasing a used vehicle. It reliably detects repainted parts, filler, and uneven paint application after repairs. It measures in the range of 0 to 1500 μm and displays values in μm and mil on a colour display. It operates with accuracy ±(3 % + 2 μm) and fine resolution of 0.1 μm for trustworthy results. The rotating display automatically adjusts to the hand's position, allowing you to comfortably read values from any angle.
Main features:
- Measuring range 0 to 1500 μm for paint and other coatings
- Accuracy ±(3 % + 2 μm) and resolution 0.1 μm
- Automatic detection of substrate FE and NFE for ferrous and non-ferrous metals
- Measurement on steel, iron, and aluminium bodies
- Probe pressure 0.3 to 1.5 N for stable and rapid readings

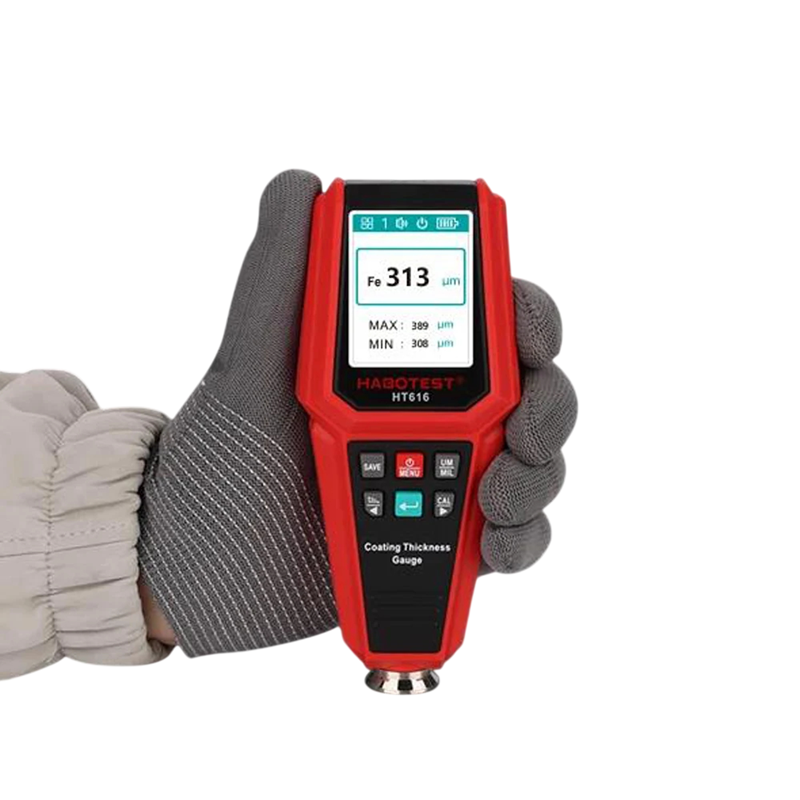

- Colour rotating display with maximum and minimum indicators

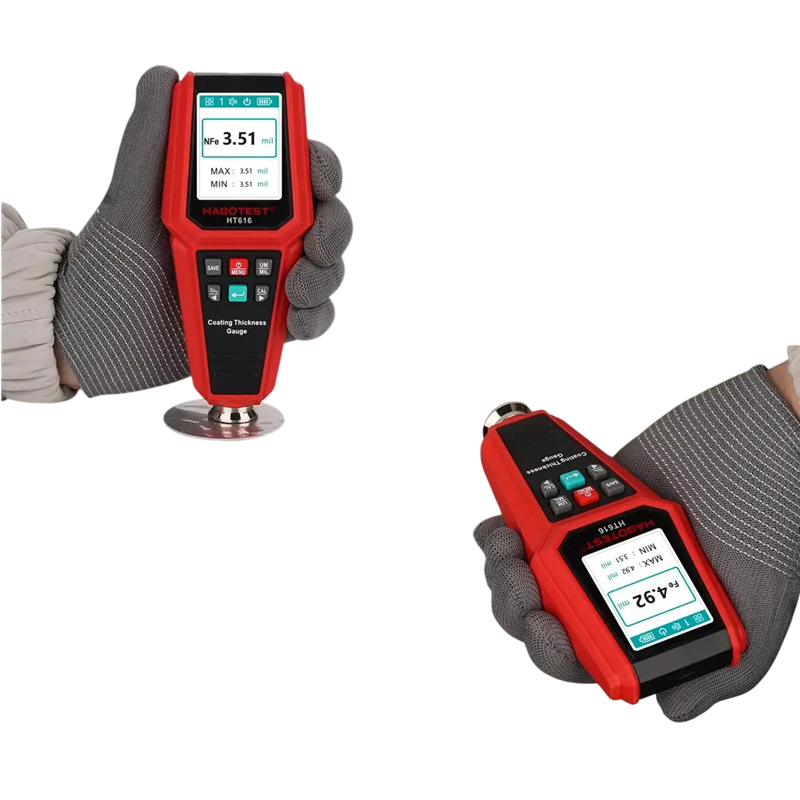

- Unit switching between μm and mil with one button
- Multiple measurement modes: single, continuous, and spot evaluation
- Memory for up to 256 measured values (8 sets of 32)
- Adjustable upper and lower thickness alarm limits
- Rechargeable Li-ion battery 3.7 V 700 mAh with USB-C charging
- Zero calibration and multi-point calibration for precise settings

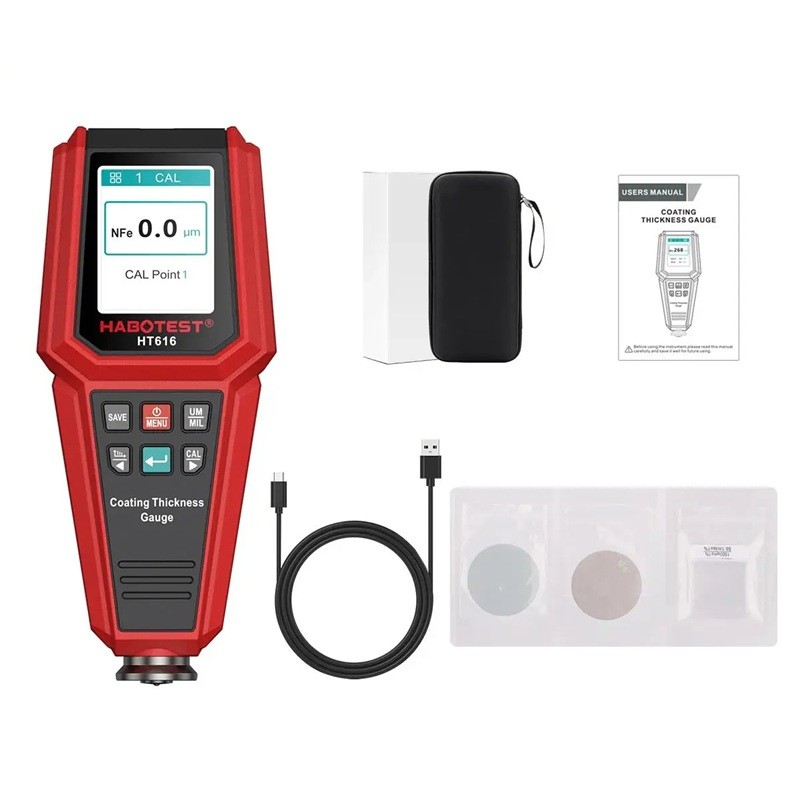

Contents of the package:
- 1x HABOTEST HT616 paint thickness gauge
- 1x USB-C charging cable
- 1x set of calibration substrates (iron and aluminium plate and calibration film)
- 1x protective case
- 1x user manual
The HABOTEST HT616 gauge is appreciated by used car buyers, vehicle sellers, auto detailers, and DIY enthusiasts who want to quickly keep track of paint condition. It helps uncover hidden repairs and negotiate a fairer price before purchase. With compact dimensions of 145 x 62 x 38 mm and a rubberised ABS body, it is comfortable to hold and durable in operation. Before the first measurement, we recommend calibrating the device to the measured substrate for the most accurate results. Simply place it against the body and you will read the paint thickness in no time.
