Home & Household Supplies Plumbing Traps, wastes and connections Tile Drain for Shower with Outlet at the Edge of the Body Length 50 cm and Width 10 cm Diameter of the Neck 4 cm Recessed Bed for Tile 7 cm

Tile Drain for Shower with Outlet at the Edge of the Body Length 50 cm and Width 10 cm Diameter of the Neck 4 cm Recessed Bed for Tile 7 cm

Half-metre drainage with an outlet shifted to the edge of the body. The tile is set into the bed, leaving only a thin frame of stainless steel 304 on the floor. Full description

In stock

Delivery €1.59

30-day return policy

Colour:

€74.19

Safe shopping

Overview

Tile Drain for Shower with Outlet at the Edge of the Body Length 50 cm and Width 10 cm Diameter of the Neck 4 cm Recessed Bed for Tile 7 cm Wide

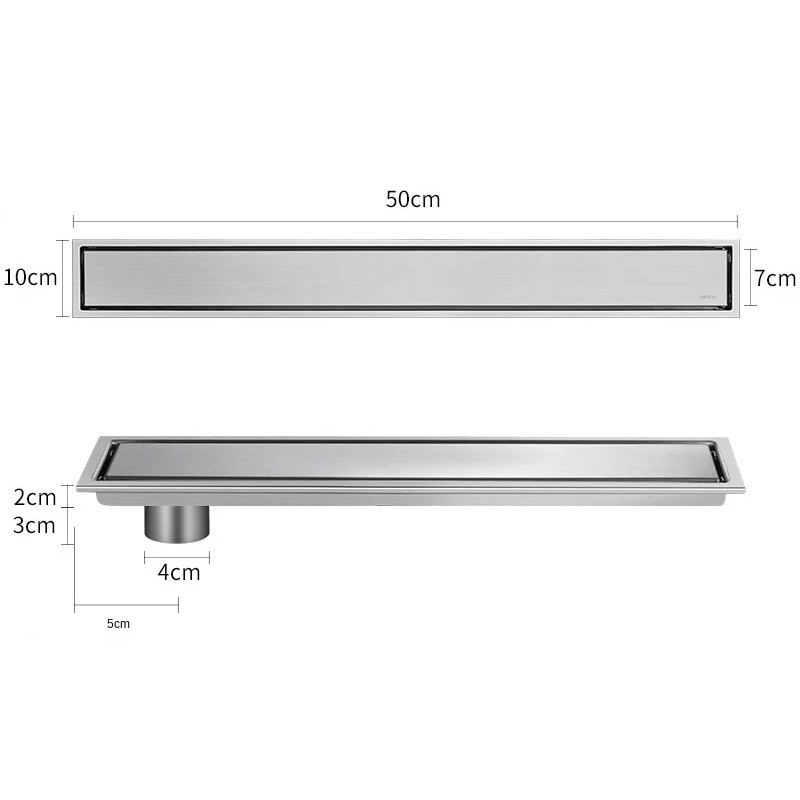

A half-metre drainage measuring 50 x 10 cm replaces the visible grille with a recessed bed, into which a piece of floor tile is set. The bed is 7 cm wide and 2 cm deep, allowing for the tile to fit in with a layer of adhesive. The outlet with a diameter of 4 cm is not located in the middle but at the edge of the body, with its axis 5 cm from the shorter side, and extends 3 cm below the base. The edge position of the outlet is suitable for layouts where the waste pipe ends close to the wall, and moving it to the centre would mean disturbing the floor. The drain is made from stainless steel 304, with a mounting depth specified from 60 mm, and suitable applications include bathroom, shower cubicle, WC, or balcony.

Outlet at the edge – the axis of the outlet is 5 cm from the shorter side, allowing the waste to run closely along the wall without needing to extend under the centre of the drained area. This arrangement saves work, especially where the position of the waste is fixed and cannot be moved.
Length 50 cm and Width 10 cm – the half-metre body drains a wide entrance to the shower or a longer strip of floor, while occupying only ten centimetres in width. The elongated shape can be run along the wall or across the shower space.
Recessed bed for tile – the top surface is formed by the set tile instead of a perforated cover, allowing the drain in the finished floor to blend with the cladding and showcase its pattern. It is applicable for large-format tiles as well as mosaics, where a metal grille would be disruptive.
Bed 7 cm wide and 2 cm deep – the depth accounts for the tile and adhesive, ensuring that the surface of the tile is flush with the surrounding floor and there is no edge at the transition. The border around the bed holds the tile in place and separates it from the surrounding tiles with a thin line.
Neck 4 cm – the outlet extends 3 cm below the base and connects to the waste pipe of corresponding diameter, eliminating the need for atypical fittings and reductions outside the standard range. A diameter of 4 cm is typical for bathroom drains and is commonly accounted for.
Stainless steel 304 – both the frame and the bed resist water, steam, and bathroom cleaners, do not corrode, and the surface only needs to be wiped dry. Stainless steel does not absorb, so no water stains or soap film remain on the surface.

Contents of the package:

1x floor drain

Drainage with edge outlet addresses situations where the waste pipe does not exit where the centre of the drain should be, which is common during bathroom renovations. The set tile continues the pattern of the surrounding floor, allowing for seamless walking and cleaning over the drain just like the rest of the surface, with no sharp transition. The stainless steel design accounts for constant moisture and steam, maintaining its appearance even after prolonged daily use in the shower. Length 50 cm offers a generous catchment area without creating a wide strip of different material in the floor. Thus, only a thin border around the set tile remains visible, which does not disrupt the floor.
