Manual Hydraulic Hose Press 35 MPa with 7 Dies 10 to 31 mm for Hydraulic Hoses up to 1 inch R2 Dimensions 33 x 40 x 27 cm Blue

Manual Hydraulic Hose Press 35 MPa with 7 Dies 10 to 31 mm for Hydraulic Hoses up to 1 inch R2 Dimensions 33 x 40 x 27 cm Blue

Easily crimp hydraulic hoses with the manual press at 35 MPa. The set of 7 dies from 10 to 31 mm can handle hoses up to 1 inch with R2 braiding in the workshop or at home. Full description
In stock
Delivery €1.59
30-day return policy
€1,218.73
Safe shopping Safe shopping
Overview
Manual Hydraulic Hose Press 35 MPa with 7 Dies 10 to 31 mm for Hydraulic Hoses up to 1 inch R2 Dimensions 33 x 40 x 27 cm Blue

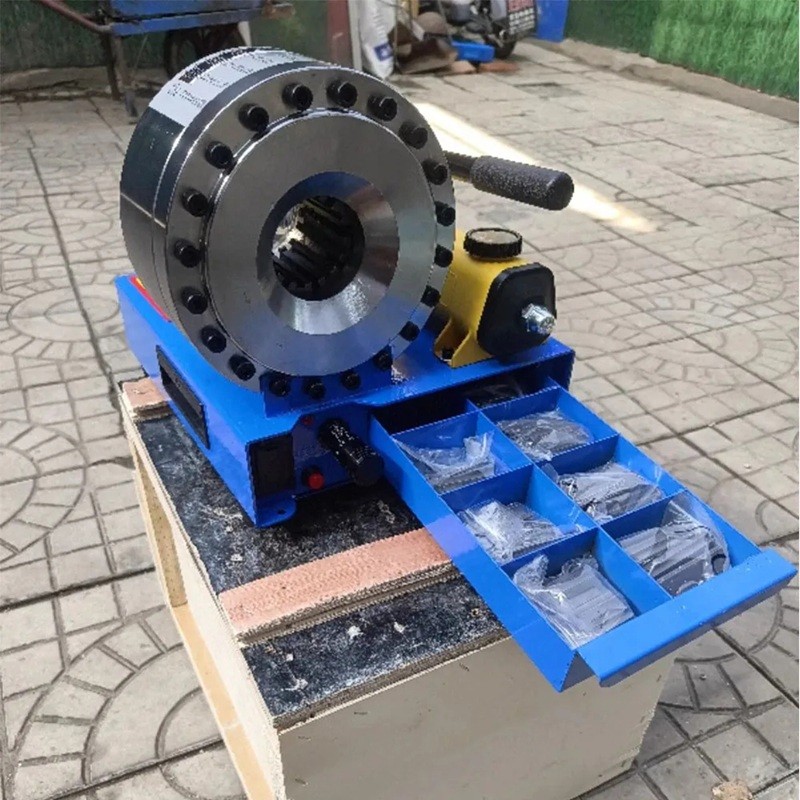

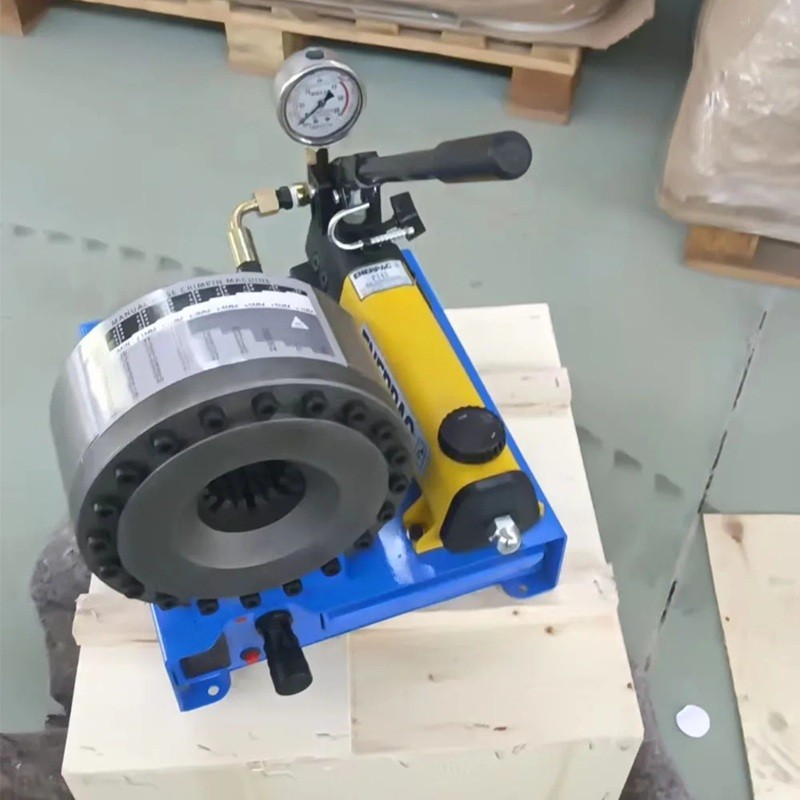

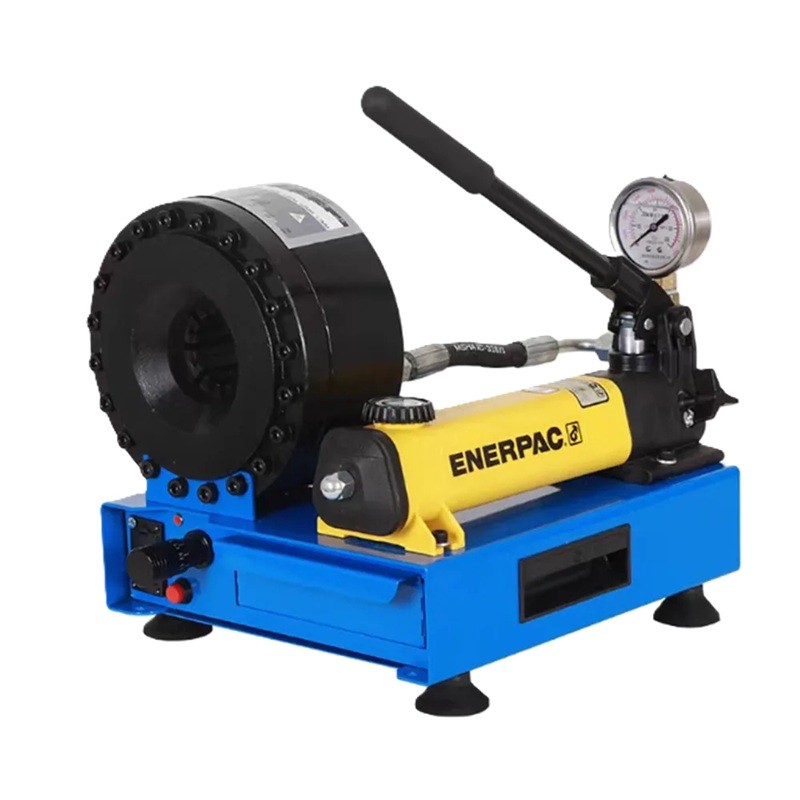

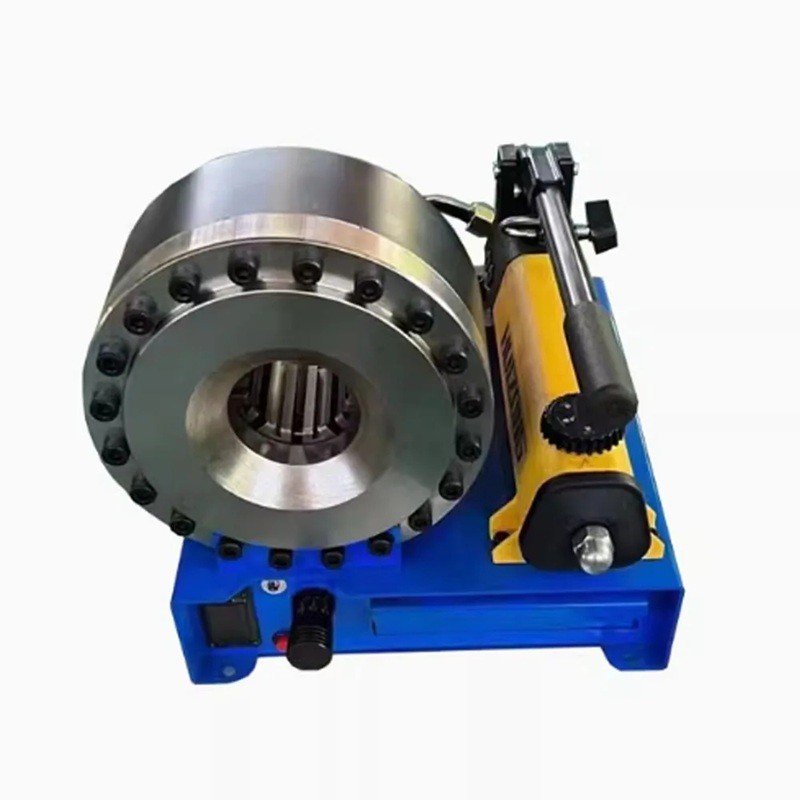

The manual hydraulic hose press is designed for quick and reliable crimping of end fittings on hydraulic hoses. Thanks to the operating pressure of 35 MPa and manual operation, you can crimp without the need for electricity, making it suitable for both workshop and home use. The set includes 7 crimping dies with openings of 10, 12, 16, 19, 23, 27, and 31 mm, allowing you to cover a wide range of hose diameters. The press is intended for hydraulic hoses up to 1 inch with two steel braids (R2). Compact dimensions of 33 x 40 x 27 cm make it easy to place on a workbench and transport. You can quickly fit the correct die and insert the hose.

The maximum opening without a die is 50 mm and with a die fitted is 40 mm, allowing for comfortable insertion of the hose and fittings. The crimping range covers the outer layer up to 32 mm and the inner layer up to 25 mm. Included is a manometer for monitoring pressure during crimping, so you can keep the process under control. The manual hydraulic pump allows for precise force application and easy control of the entire process. The press is suitable for repairs and production of hydraulic hoses in agriculture, construction, and garages, and wherever a reliable connection is needed.

Key features:

  • Operating pressure 35 MPa — solid and reliable crimping of fittings.
  • Set of 7 dies 10 to 31 mm — covering a wide range of hose diameters.
  • For hoses up to 1 inch with 2 braids R2 — suitable for standard hydraulic hoses.
  • Maximum opening 50 mm without die — comfortable hose insertion.
  • Crimping range up to 32 mm outer and 25 mm inner layer — precise crimping.
  • Manual operation without electricity — usable in the field and without a socket.
  • Manometer for pressure monitoring — overview of the crimping process.
  • Compact dimensions 33 x 40 x 27 cm — easy placement on a workbench.

Package contents:

  • 1x hydraulic hose press
  • 1x manual hydraulic pump
  • 7x crimping dies

The manual hydraulic hose press is a practical tool for anyone who needs to reliably crimp hydraulic hose fittings. With a pressure of 35 MPa and a set of 7 dies, it can handle common hose diameters up to 1 inch. The manual operation allows for work even where electricity is not available, which is especially appreciated by mobile services. Compact dimensions and a manometer facilitate precise and controlled work. It is a useful piece of equipment for workshops, garages, and agricultural and construction operations that wish to produce and repair hoses independently.
