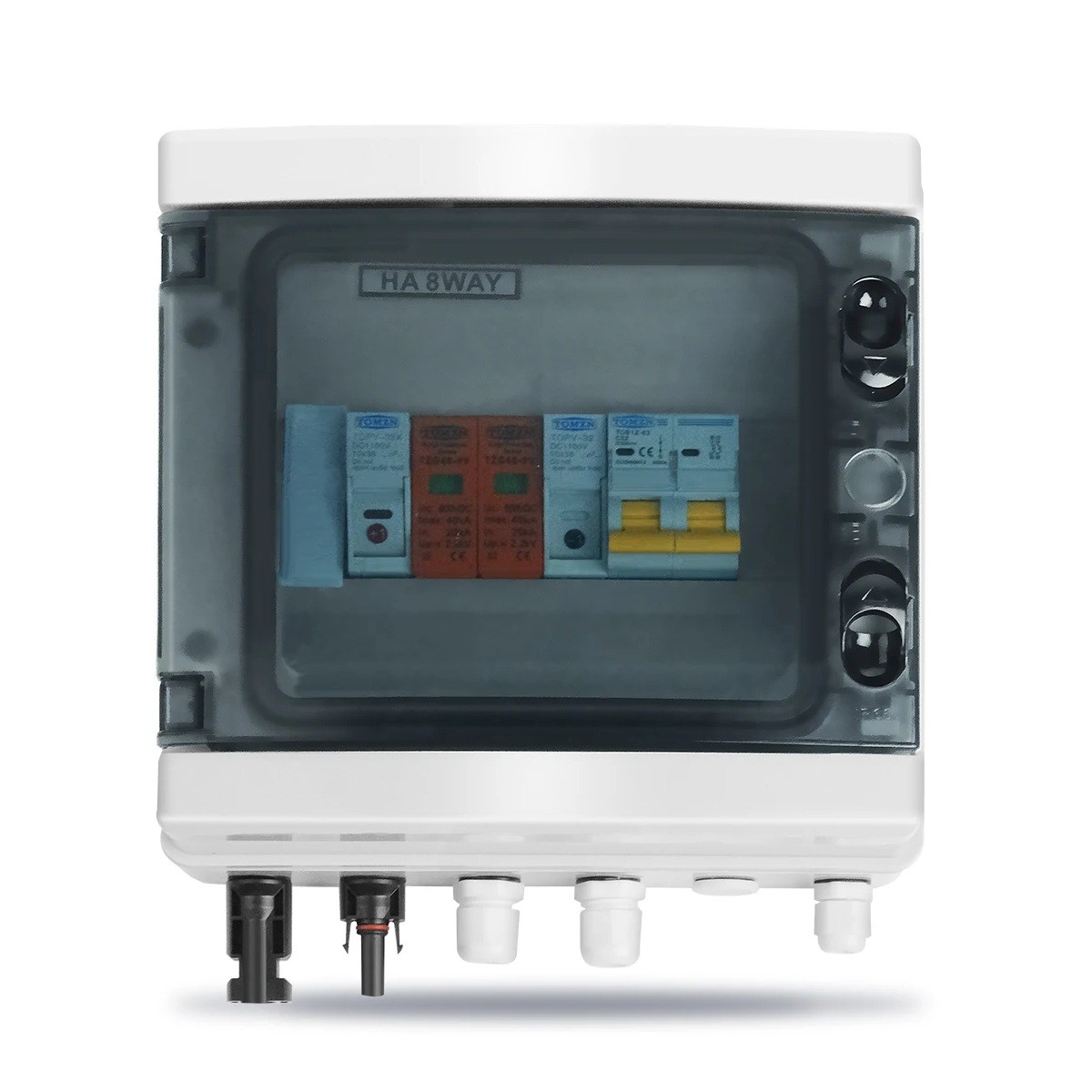

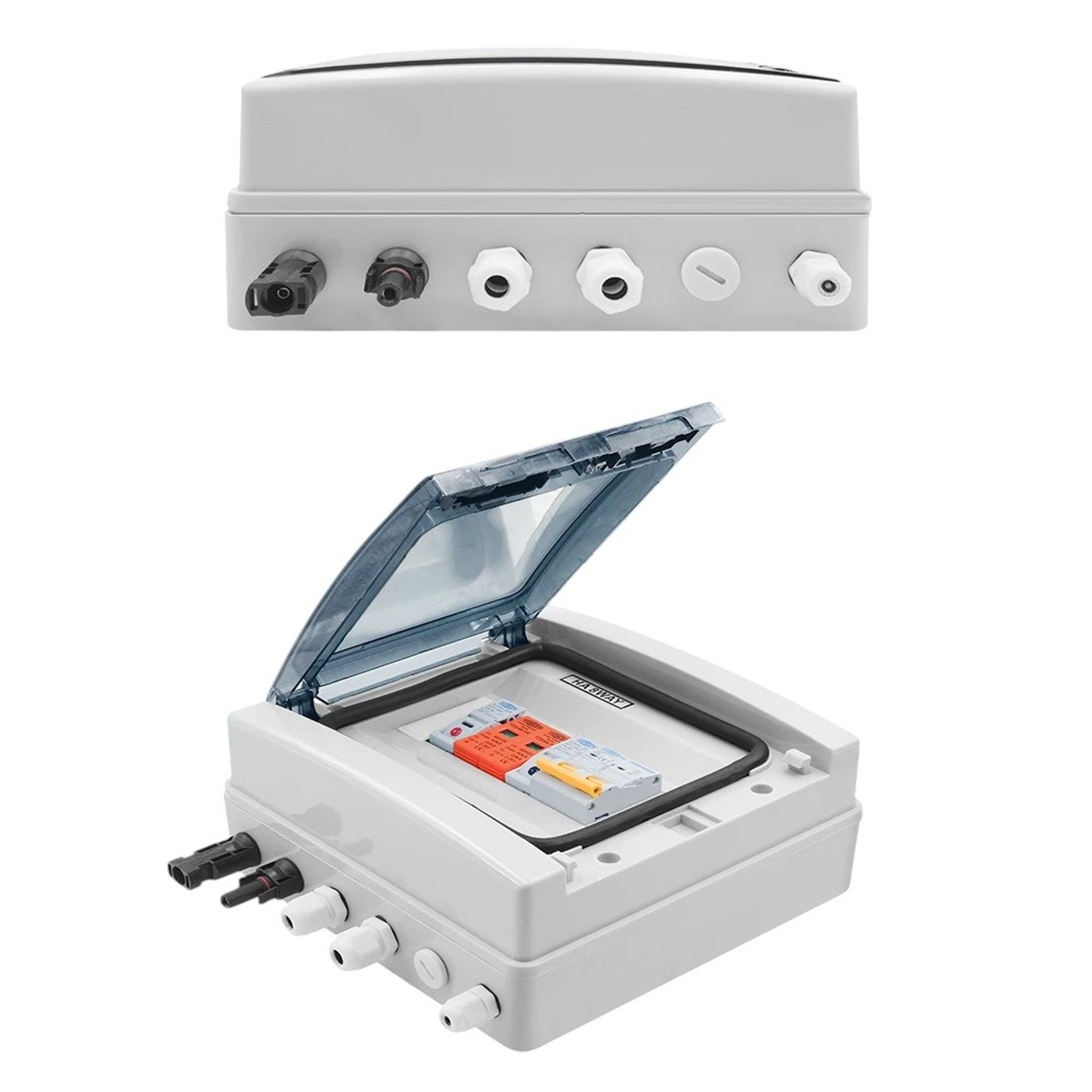

Solar Combiner Box for PV Panels IP65 240 x 210 x 100 mm DC 600 V SPD Fuse and Circuit Breaker 50 A DC Waterproof Protection Box 1 Input 1 Output Outdoor Use
This solar photovoltaic combiner box represents a reliable solution for connecting one solar input to one output while ensuring protection against overvoltage, overload, and lightning strikes. The durable plastic construction with an IP65 rating allows for year-round use even in demanding conditions. The main safety feature is the 50 A DC circuit breaker, which protects the circuit from overload. Important protection is also provided by the SPD 600 V fuse, which safeguards the photovoltaic system against overvoltage caused by surges or storms.
The device is designed for systems up to 600 V DC, ensuring broad compatibility with both domestic and smaller professional installations. The dimensions of 240 x 210 x 100 mm provide ample space for comfortable cable management and servicing. Although the device does not include temperature regulation, it is designed to withstand temperatures of up to 105 °C, ensuring stable operation. Advantages include 50 A DC circuit breaker, SPD 600 V fuse, IP65 rating, compact design, and easy connection with 1 input and 1 output.
- IP65 rating – durable solution for outdoor use.
- Integrated SPD 600 V fuse as overvoltage protection.
- 50 A DC circuit breaker for safe disconnection during overload.

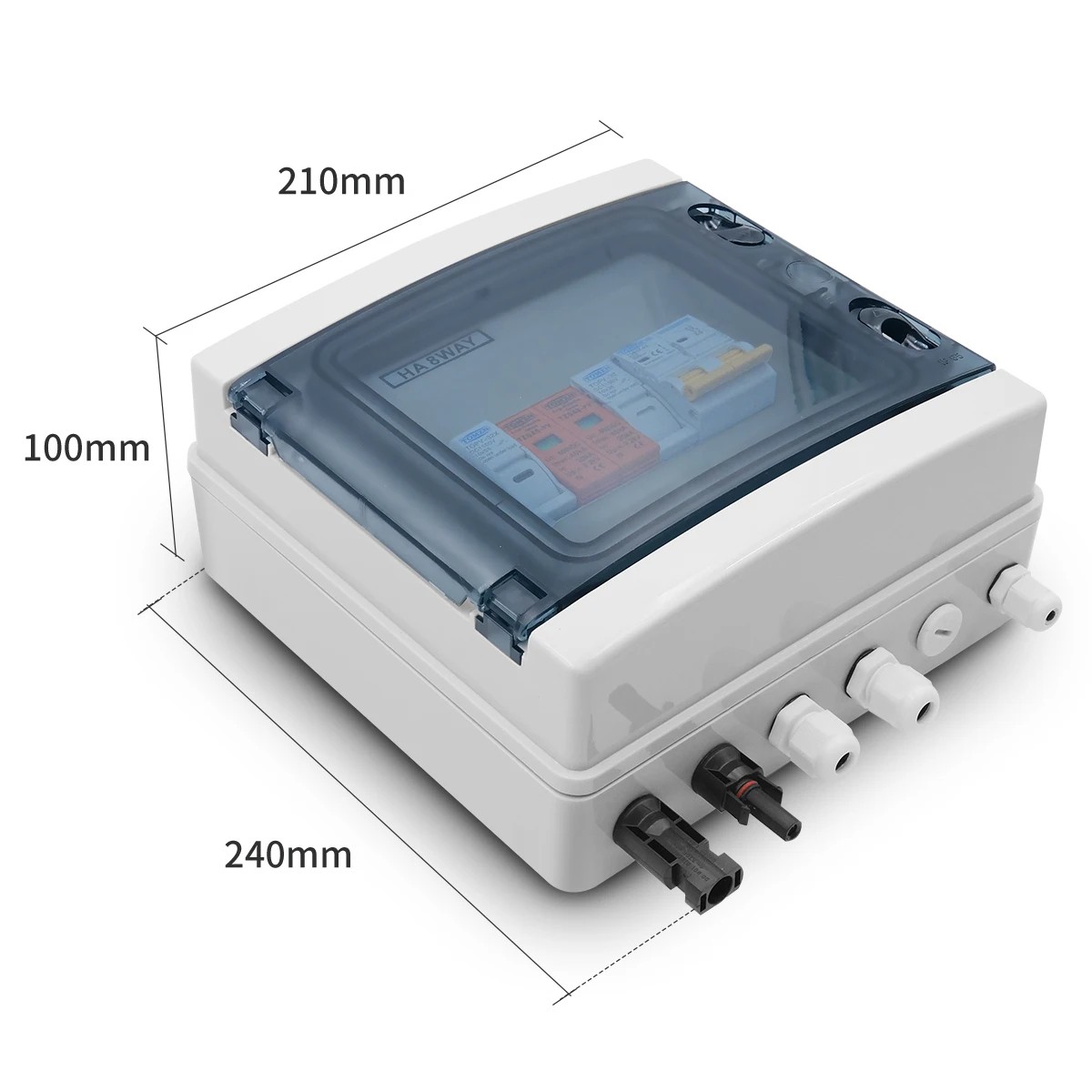

- Dimensions 240 x 210 x 100 mm facilitate installation and cable management.
- Compatibility with PV systems up to 600 V DC.
- Durable plastic construction with long lifespan.
- No temperature regulation, with leakage protection.
- Suitable for both domestic and professional PV systems.
- Stable operation even in demanding outdoor conditions.
- Package contents: 1 pcs set – PV combiner box + SPD 600 V fuse + 50 A DC circuit breaker

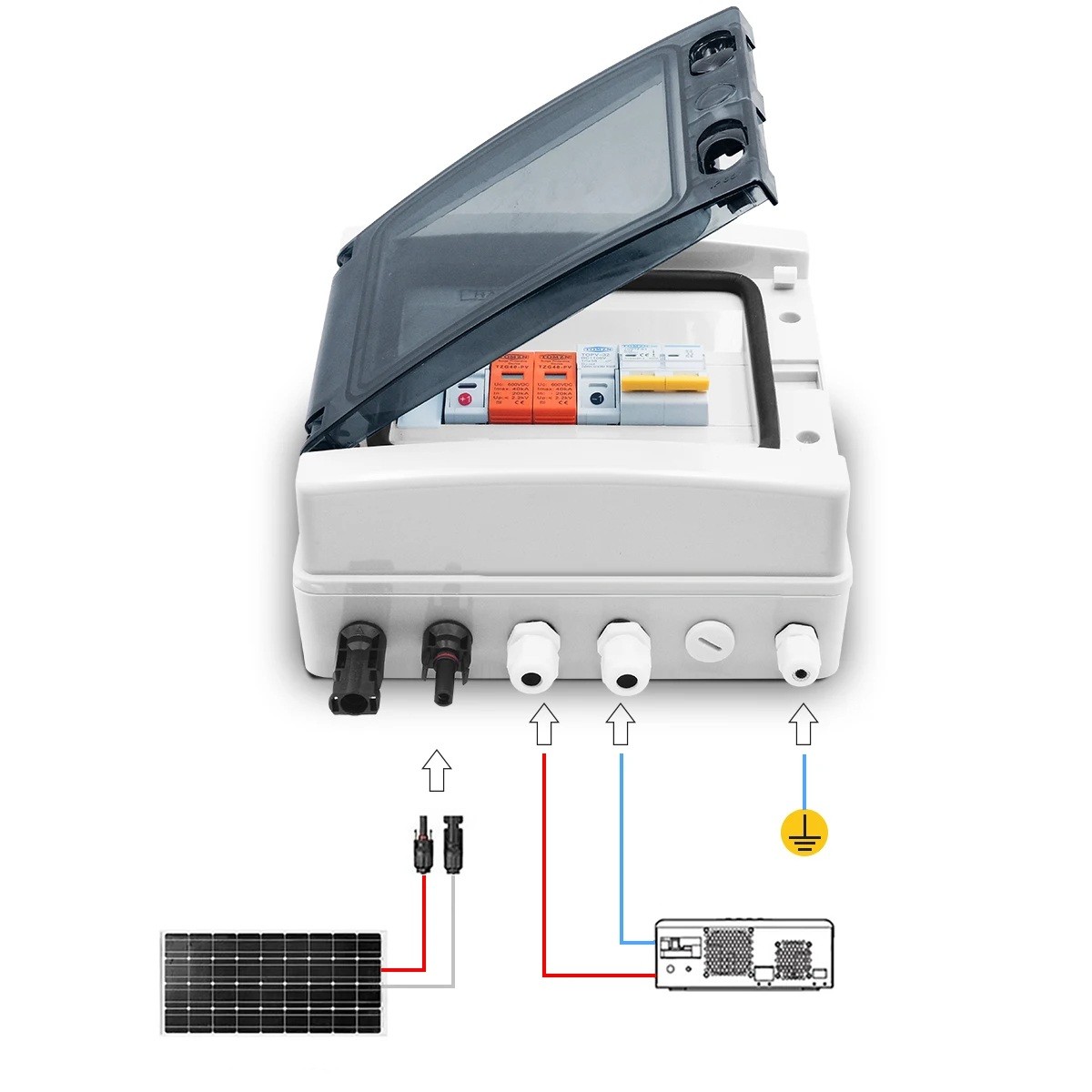

This solar PV combiner box provides a complete solution for the safe connection of panels and the protection of the entire system. With an IP65 rating, it withstands harsh weather, while protective elements such as 50 A DC circuit breaker and SPD 600 V fuse minimise the risks of overload or overvoltage. The compact dimensions significantly ease installation and servicing while ensuring clear cable management. This model is ideal for installations requiring a high degree of safety, durability, and stable long-term operation.
