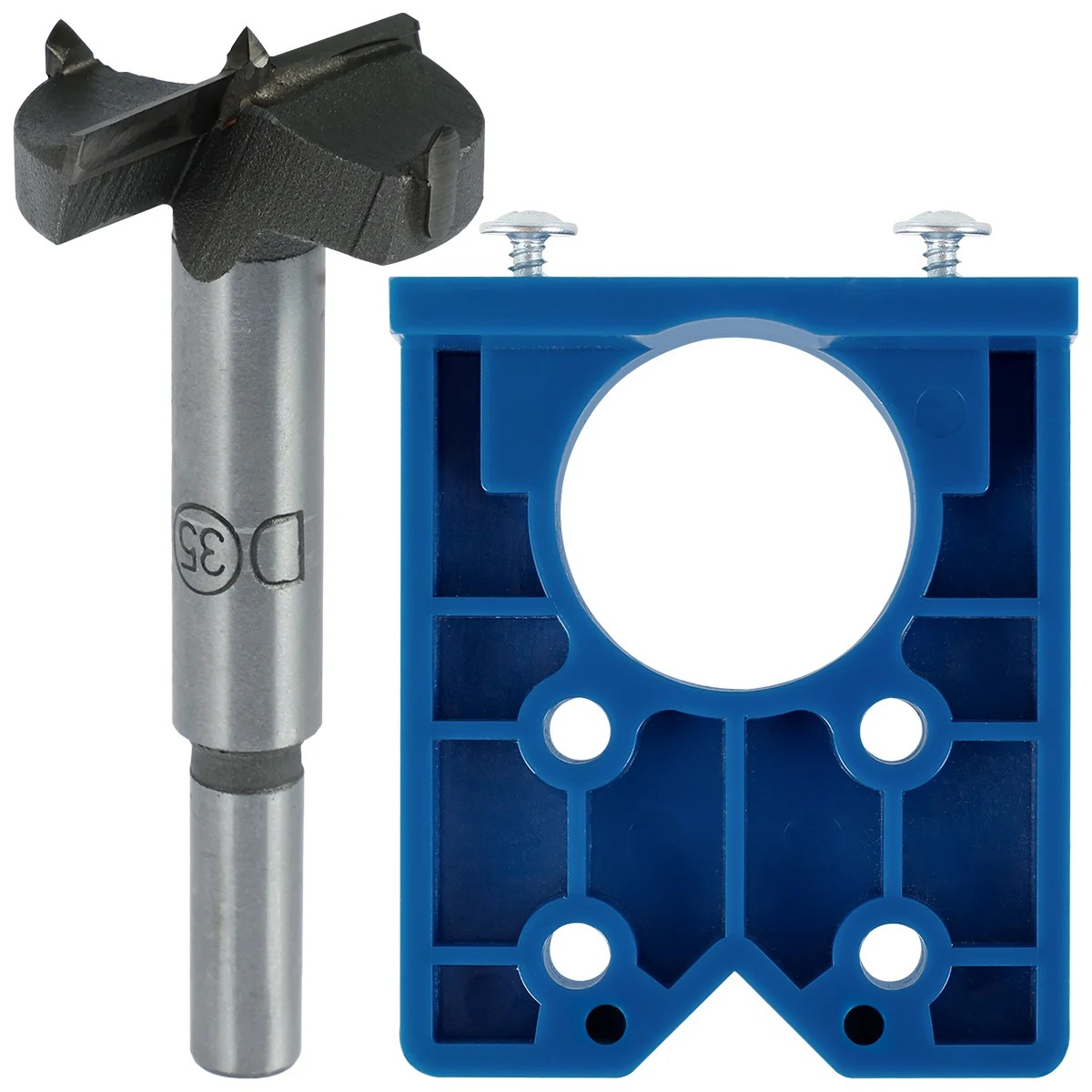

Drilling Guide Set for Concealed Hinges 35 mm with Precision Drill and Allen Key
The drilling guide serves to securely guide the drill bit and accurately determine the centre of the hole. Thanks to its stable construction, it holds firmly in place and minimises the risk of shifting during drilling. The result is a perfectly coaxial hole that ensures proper seating of the hinge and its long lifespan.

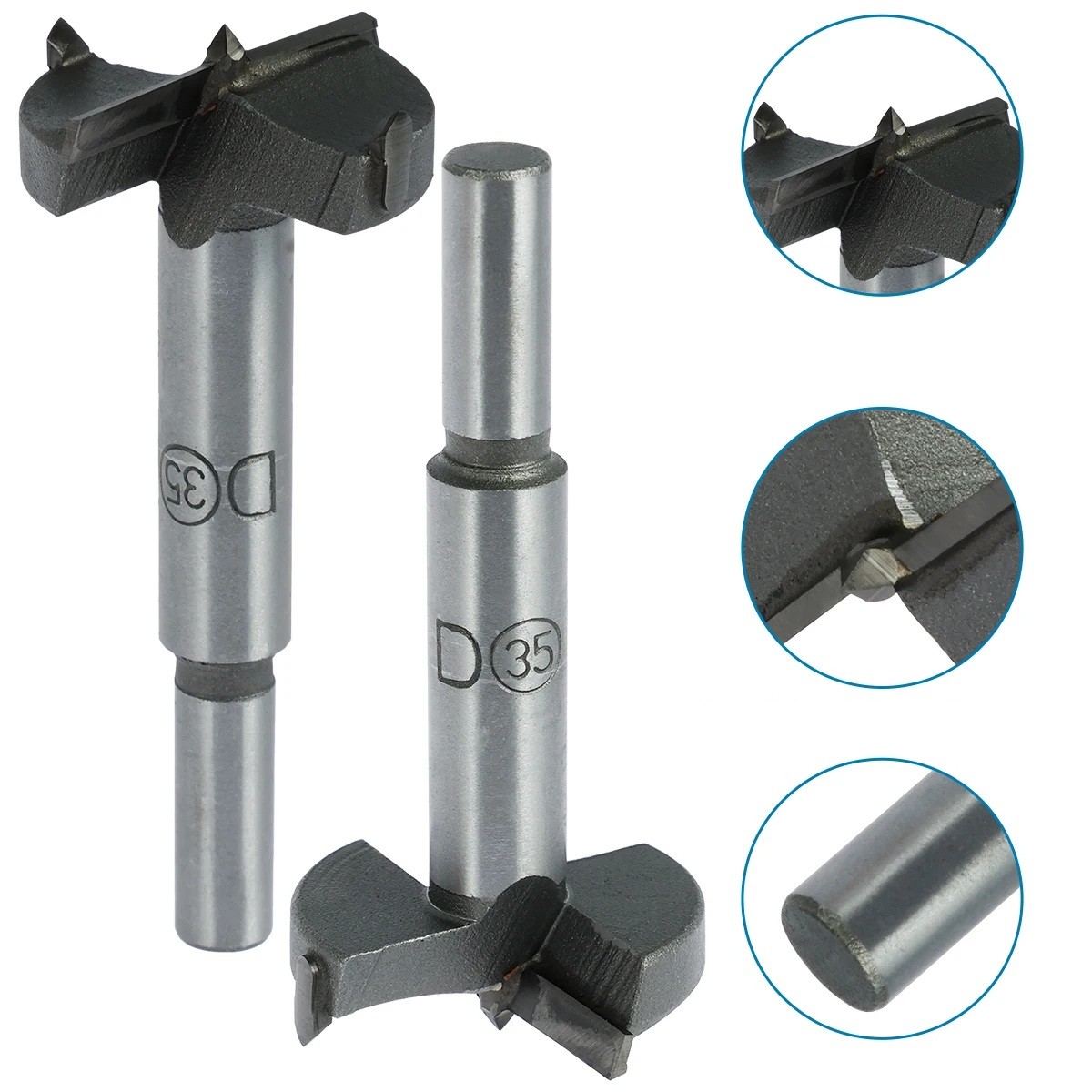

The special drill bit with three cutting edges allows for quick and smooth drilling. The sharp edges ensure a clean cut without burrs and damage to the surface of the board. The stop construction of the drill bit helps maintain the correct drilling depth, which is crucial for flawless assembly of furniture fittings.
The guide is equipped with clearly shaped guidance for precise placement on the edge of the board. This allows for repeated drilling of holes at the same distance, achieving a professional result even in mass production or home modifications. Using the included Allen key, the drill bit can be easily tightened and adjusted.

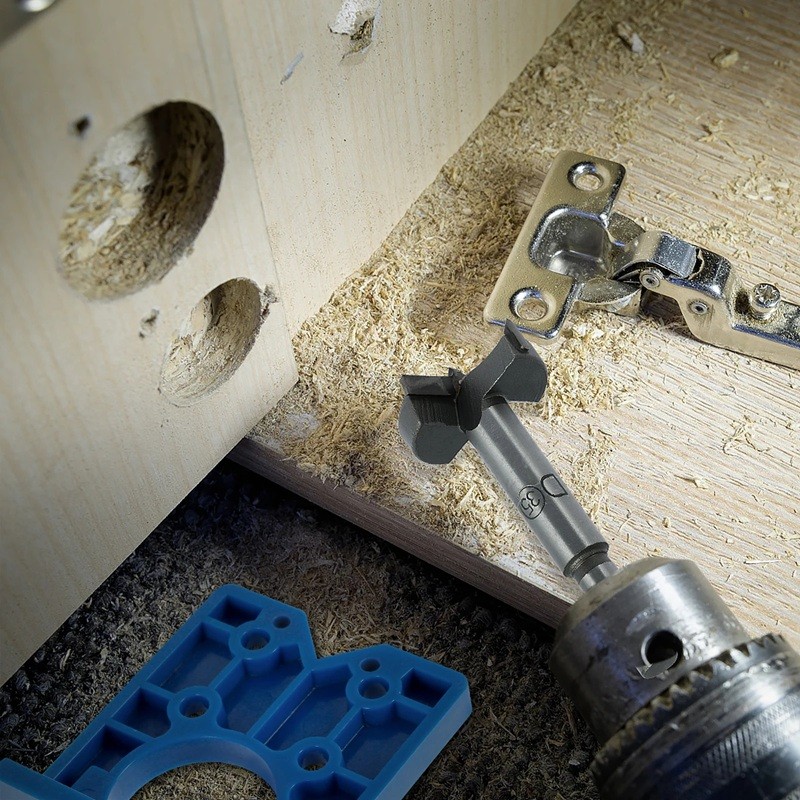

Usage is simple and can be handled by even less experienced users. First, mark the position of the hole, then place the drilling guide, secure it in the desired position, and proceed with drilling. The guide ensures that the drill bit remains precisely centred and the hole will not be misaligned.

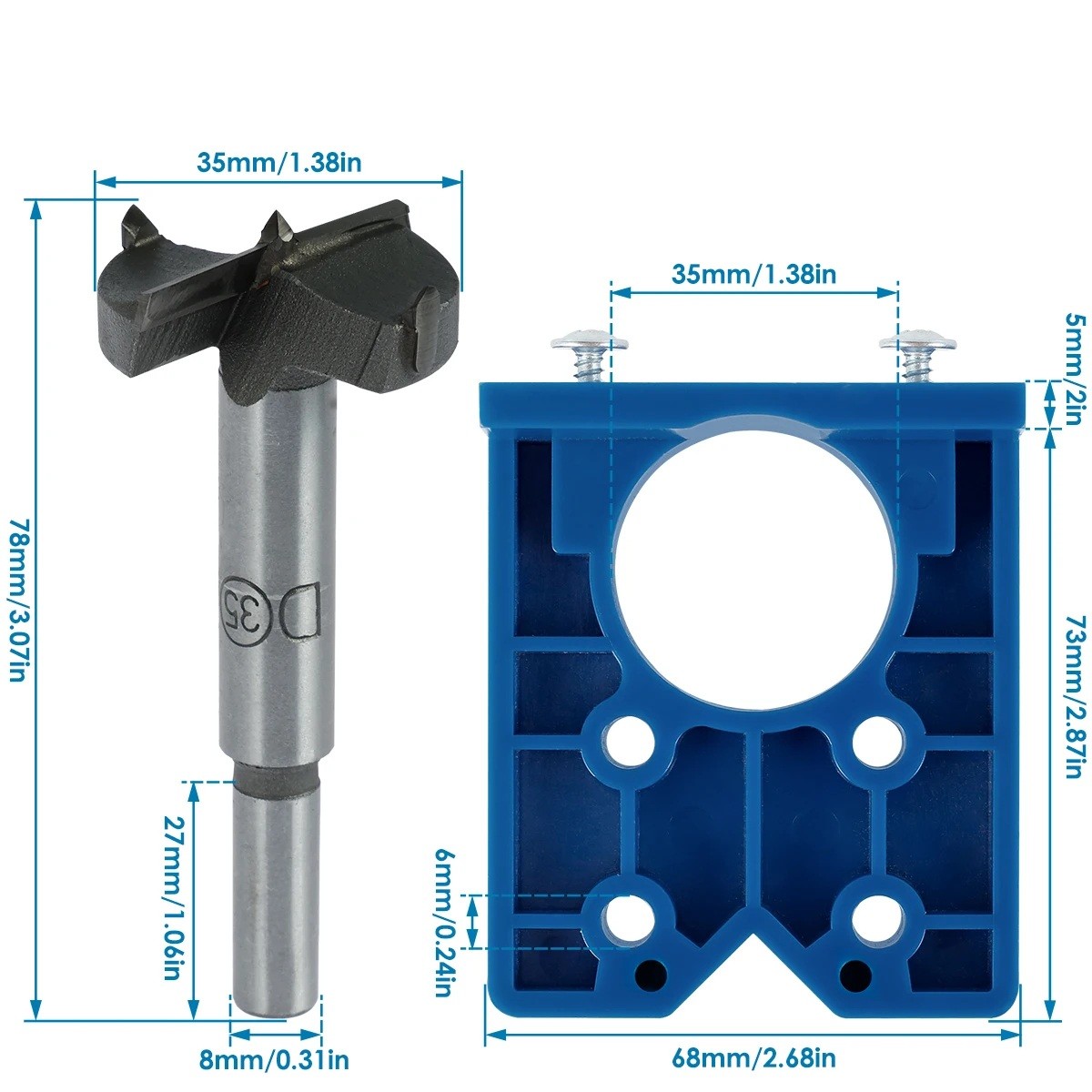

Technical Information:
- Drilled hole diameter: 35 mm
- Total length of the drill bit: 78 mm
- Drill bit shank diameter: 8 mm
- Designed for mounting concealed furniture hinges
Instructions for Use:
- Mark the centre of the hole on the doors or board.
- Place the drilling guide at the desired location.
- Ensure that the guide sits firmly on the surface.
- Insert the drill bit into the drill chuck.
- With steady pressure, drill the hole to the desired depth.
- After drilling, check the hole and proceed with hinge installation.
Package Contents:
This drilling guide set is designed for precise and safe drilling of holes for concealed furniture hinges with a diameter of 35 mm. It is the ideal choice for installing kitchen doors, cabinets, dressers, and other furniture where high precision and a clean result without material tearing are required.
