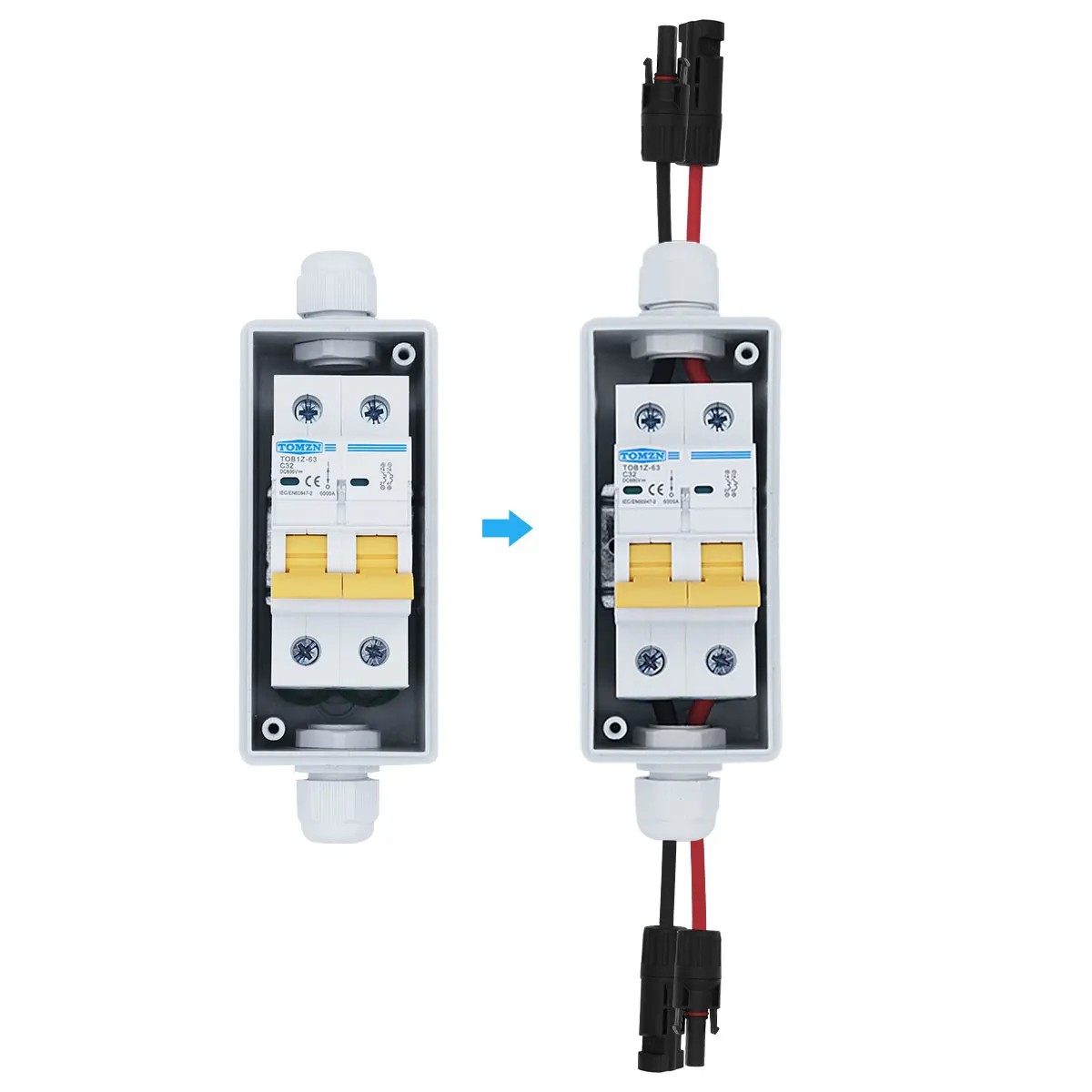

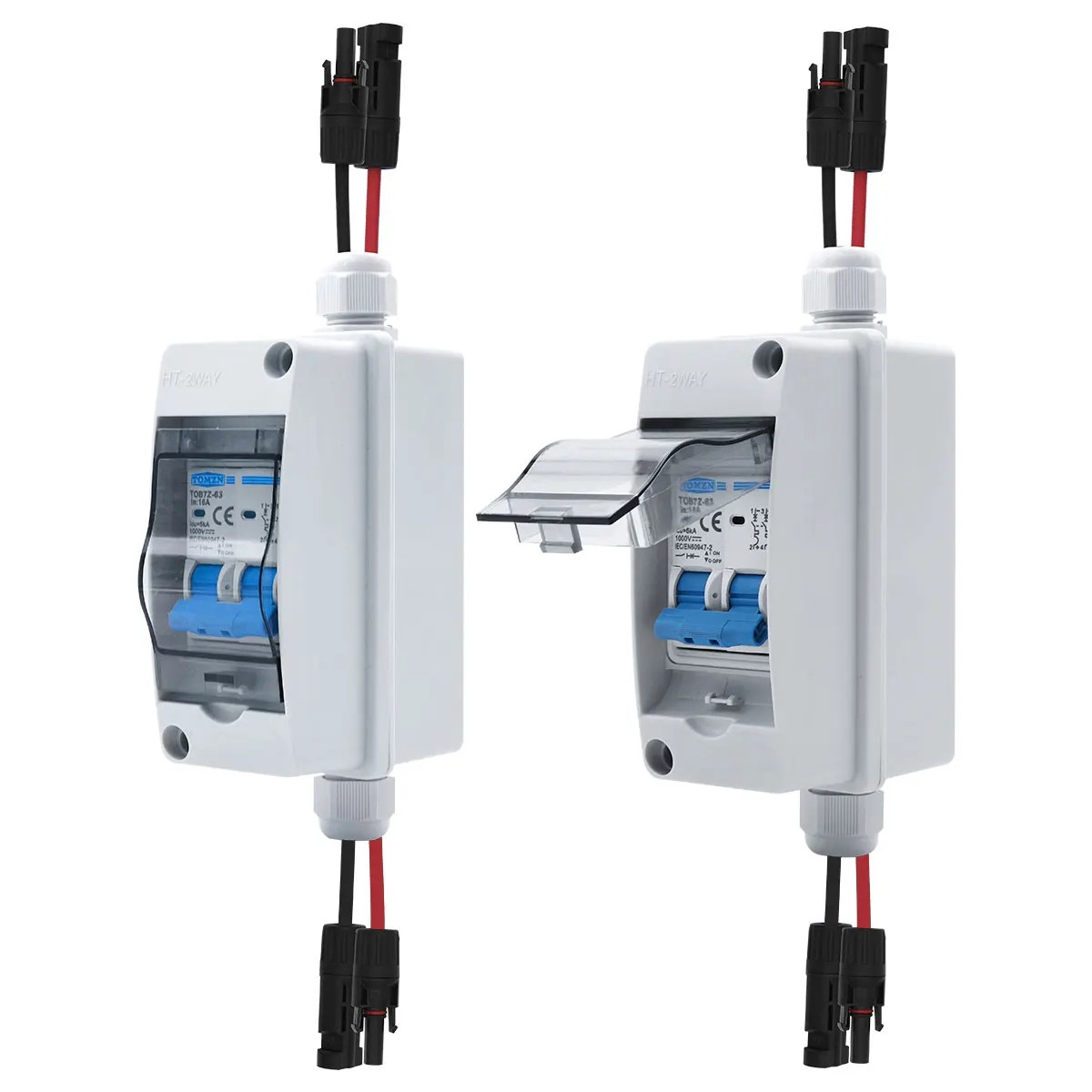

Solar Photovoltaic Box IP65 2P 1000 V 16 A HT-2WAY 1 Input 1 Output Waterproof Connection Box with Circuit Breaker and 27 cm Cable for Outdoor Installations
The solar photovoltaic box is designed for safe and long-term use in outdoor conditions. Thanks to the high ingress protection rating of IP65, it provides reliable protection against water, dust, snow, and other weather influences. The box includes a 2P 16 A circuit breaker, which allows both L and N wires to be disconnected, ensuring maximum safety for the entire system. Connection is facilitated by the supplied 27 cm long cable, allowing for quick installation without the need for additional components. The box is particularly suitable for photovoltaic systems where safe protection, distribution, and separation of direct current voltage up to 1000 V is required.
Constructed from durable plastic, it ensures long service life and resistance to mechanical damage. This photovoltaic box is equipped with leakage protection, and its design ensures high stability even in demanding outdoor conditions. Thanks to the adaptable HT-2WAY circuit breaker, the box can be easily integrated into a wide range of photovoltaic systems. It is suitable for both domestic installations and smaller professional systems where safety and durability are required. High voltage load up to 1000 V, waterproof IP65, circuit breaker 2P 16 A, ability to disconnect L and N, and including 27 cm cable are key features of this device.
- Ingress protection rating IP65 – resistance to rain, snow, dust, and outdoor conditions.
- HT-2WAY 2P 16 A circuit breaker with the ability to disconnect both L and N wires.
- Suitable for direct current systems up to 1000 V.
- Durable plastic construction with a long service life.
- Leakage protection and safe operation without temperature regulation.
- Includes a 27 cm wire for easy installation.

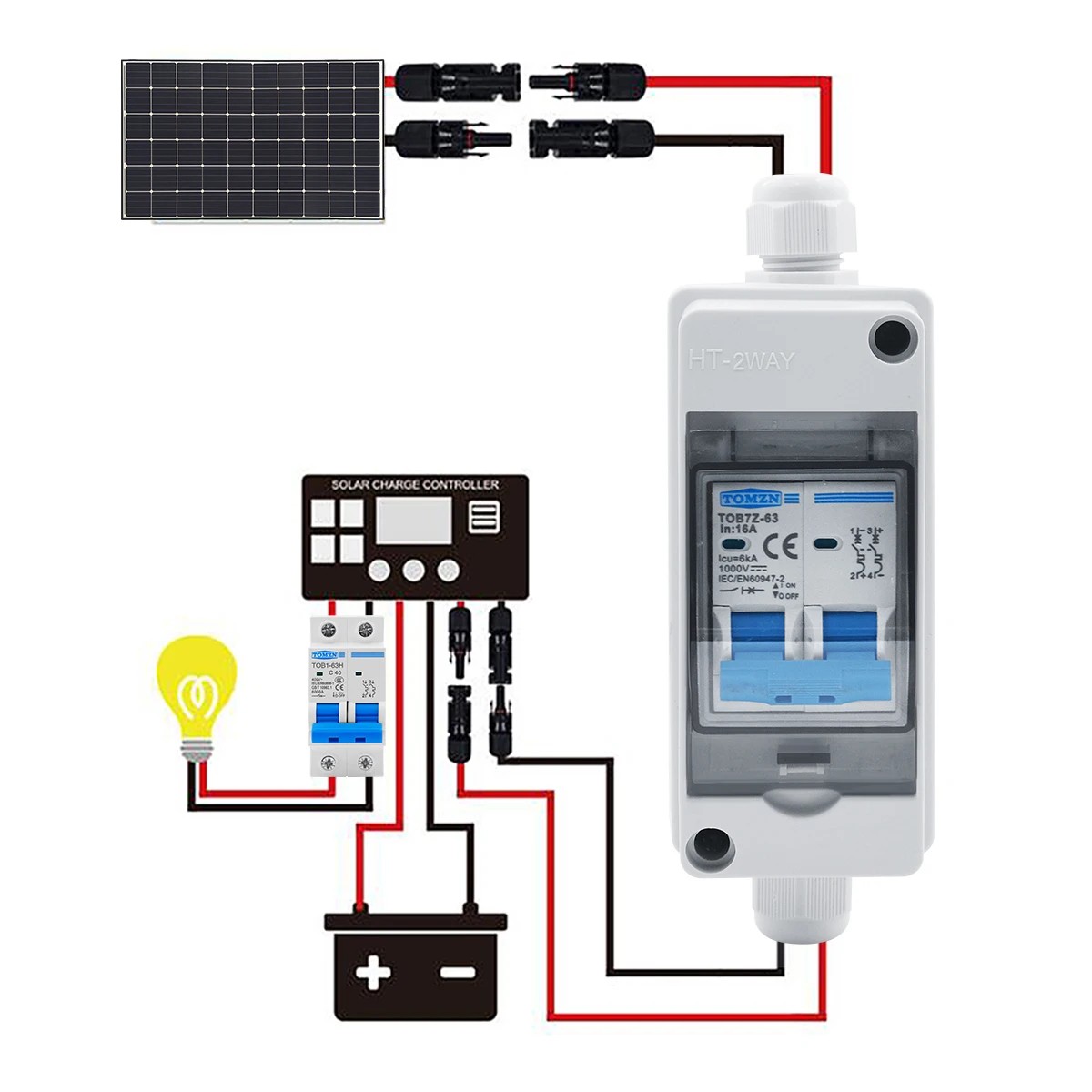

- 1 input and 1 output for simple connection to the photovoltaic system.
- Ideal choice for outdoor use – resistant to wind, rain, and UV radiation.
- Stable design for wall or other surface mounting.
- Suitable for both domestic and smaller professional solar systems.

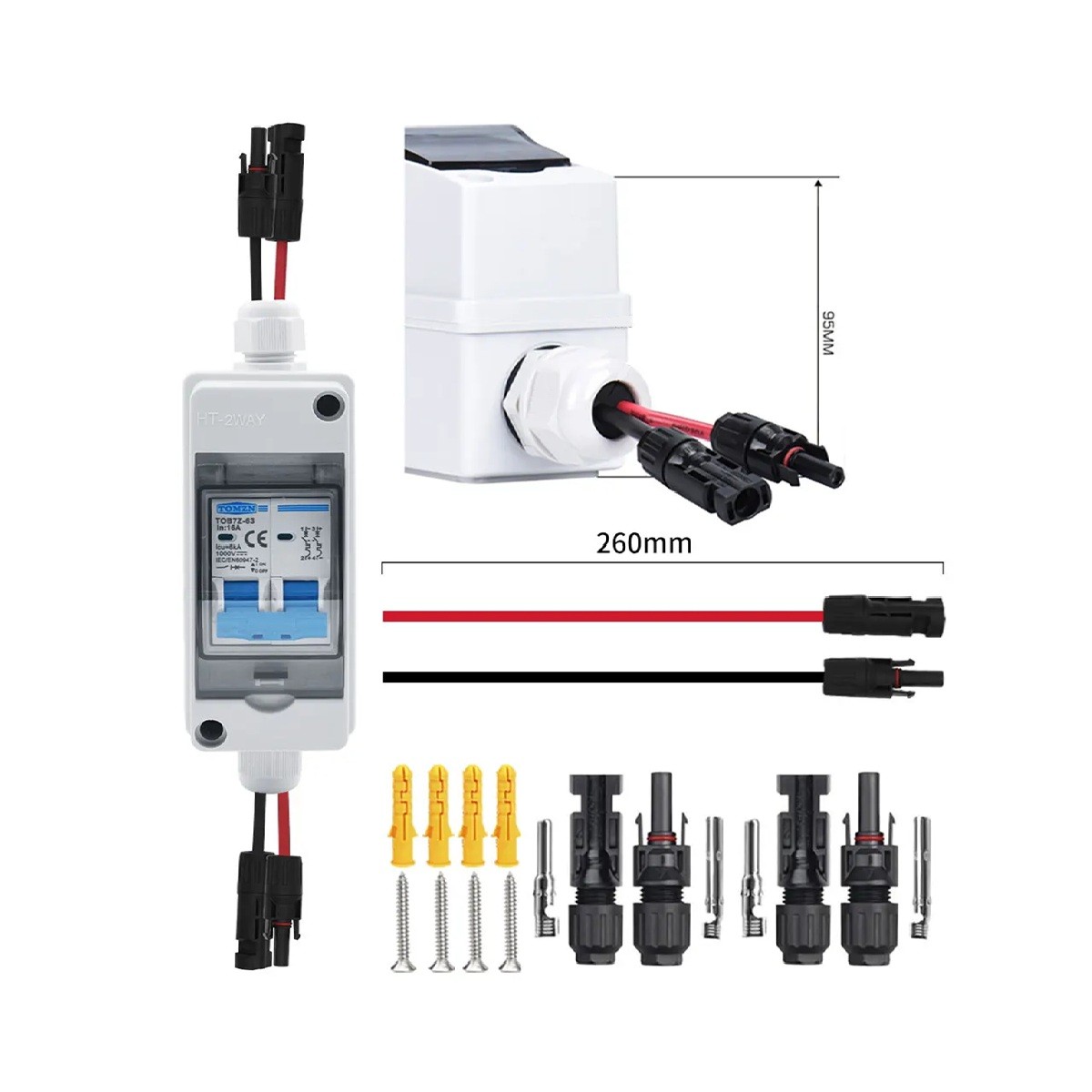

- Contents: 1 pcs set – photovoltaic box HT-2WAY + circuit breaker + 27 cm cable
This solar photovoltaic box is an excellent choice for anyone seeking a safe and durable solution for distributing direct current voltage in solar installations. With its quality construction and IP65 protection, it provides long-term reliability and trouble-free operation. It includes a powerful circuit breaker with the ability to disconnect both wires, significantly increasing the safety of the entire system. Thanks to easy installation, the box is suitable for experienced installers as well as home users. If you need a reliable outdoor connection element for photovoltaics, this model provides everything necessary.
