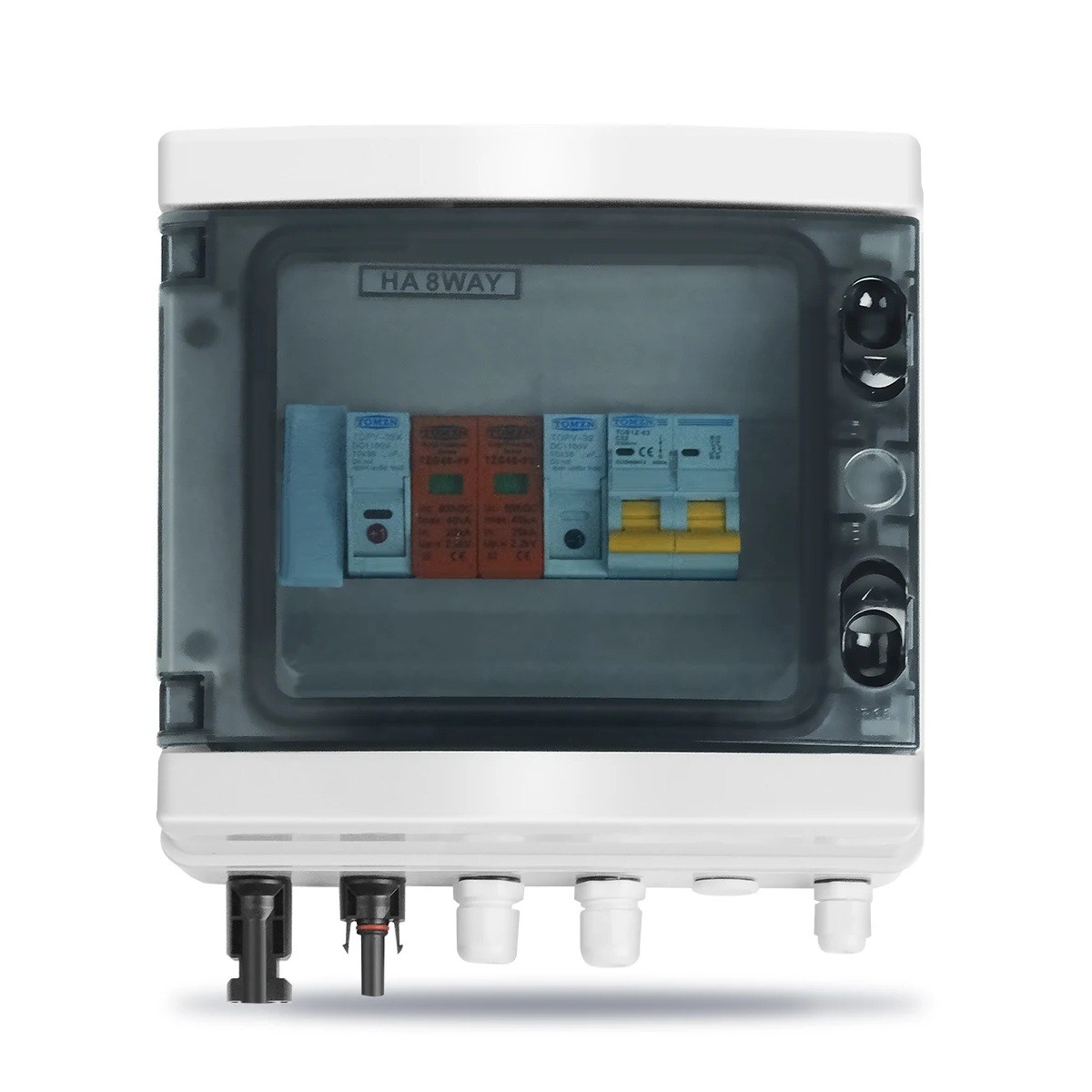

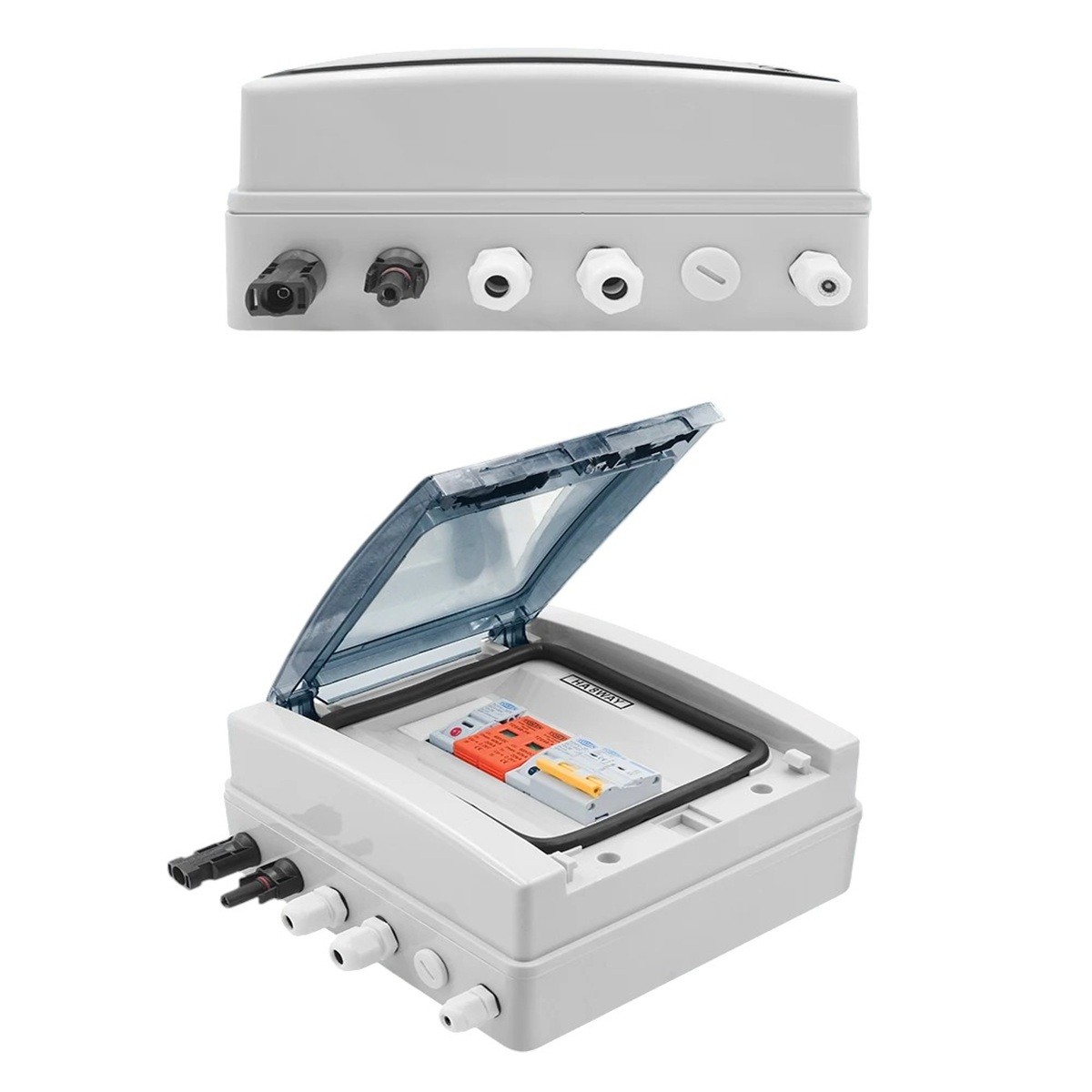

Solar Combiner for PV Panels IP65 240 x 210 x 100 mm DC 600 V SPD Fuse and Circuit Breaker 20 A DC Waterproof Protection Box 1 Input 1 Output Against Surge
The solar photovoltaic combiner for PV panels is designed for the safe connection of one solar input to one stable output with a high level of protection against overload, surge, and lightning strikes. It offers a complete combination of protective elements that ensure safe and stable operation even under demanding conditions. The construction is made from solid and high-quality plastic, and its rating of IP65 provides reliable resistance to rain, snow, dust, and other outdoor influences. A key element of protection is the 20 A DC circuit breaker, which ensures the safe disconnection of the direct current circuit in case of overload. The device also includes a fuse and integrated SPD 600 V, which protects the PV system from surges caused by storms or fluctuations in the grid.
The device is designed for use in solar installations with a maximum direct current voltage of 600 V DC, making it a universal and compatible component for most domestic and smaller professional photovoltaic systems. The dimensions of 240 x 210 x 100 mm allow for easy installation on walls or technical panels while providing ample space for safe cable management. The box does not include temperature regulation but is constructed to withstand thermal loads of up to 105 °C. Protection against leakage and a robust construction ensure stable operation and a long lifespan of the device. Key advantages include 20 A DC circuit breaker, SPD 600 V, professionally designed fuse, IP65 rating, and simple 1 input and 1 output for safe connection of PV panels.
- IP65 rating – resistance to water, dust, snow, and outdoor influences.
- Fuse holder with integrated fuse for line protection.
- Circuit breaker 20 A DC for safe disconnection of the direct current circuit.
- Integrated SPD 600 V protects against surges and lightning strikes.

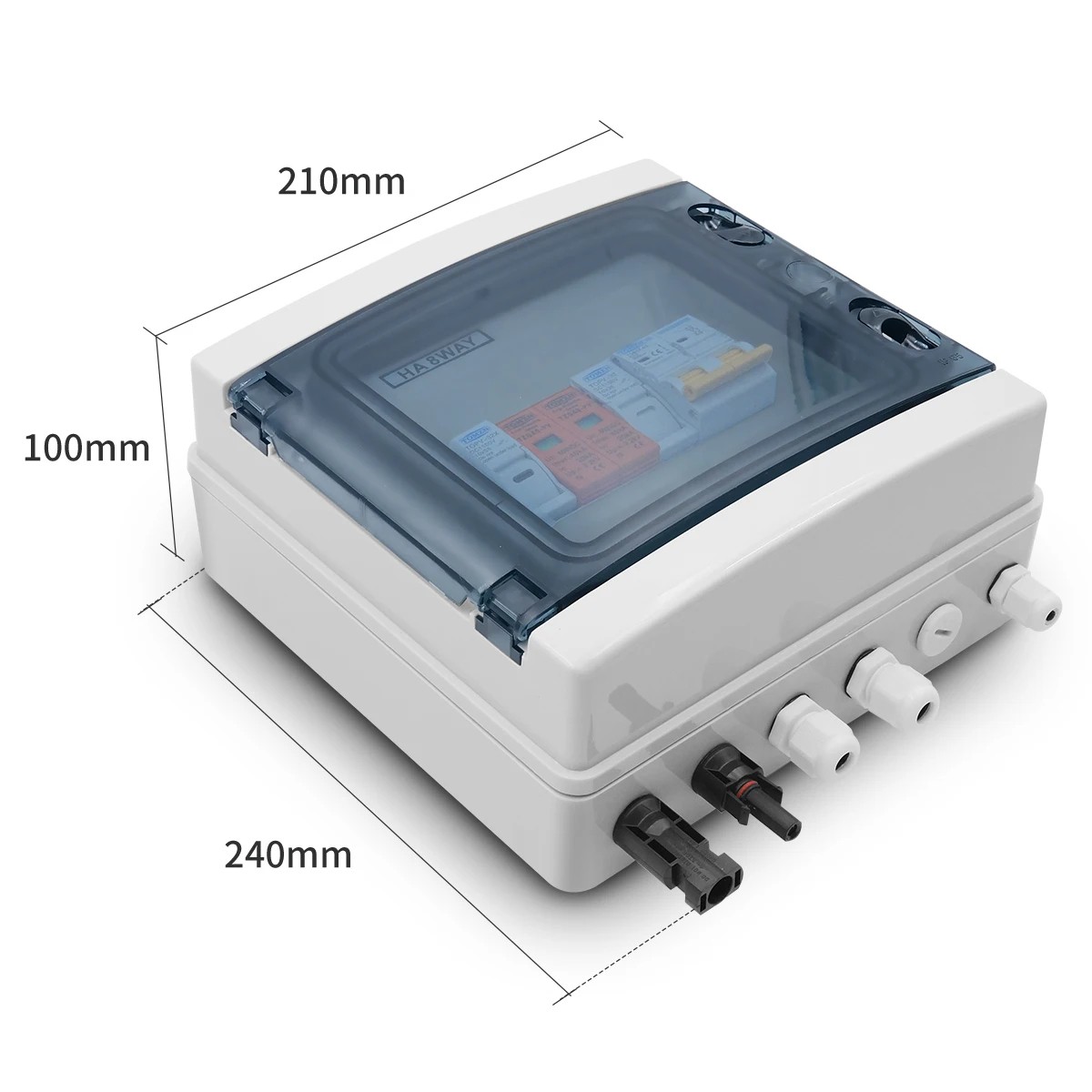

- Dimensions 240 x 210 x 100 mm for easy installation.
- Designed for PV systems up to 600 V DC.
- No temperature regulation, with leakage protection.
- Sturdy and highly durable plastic construction.
- Suitable for domestic and smaller professional solar installations.
- Stable design for outdoor installations.

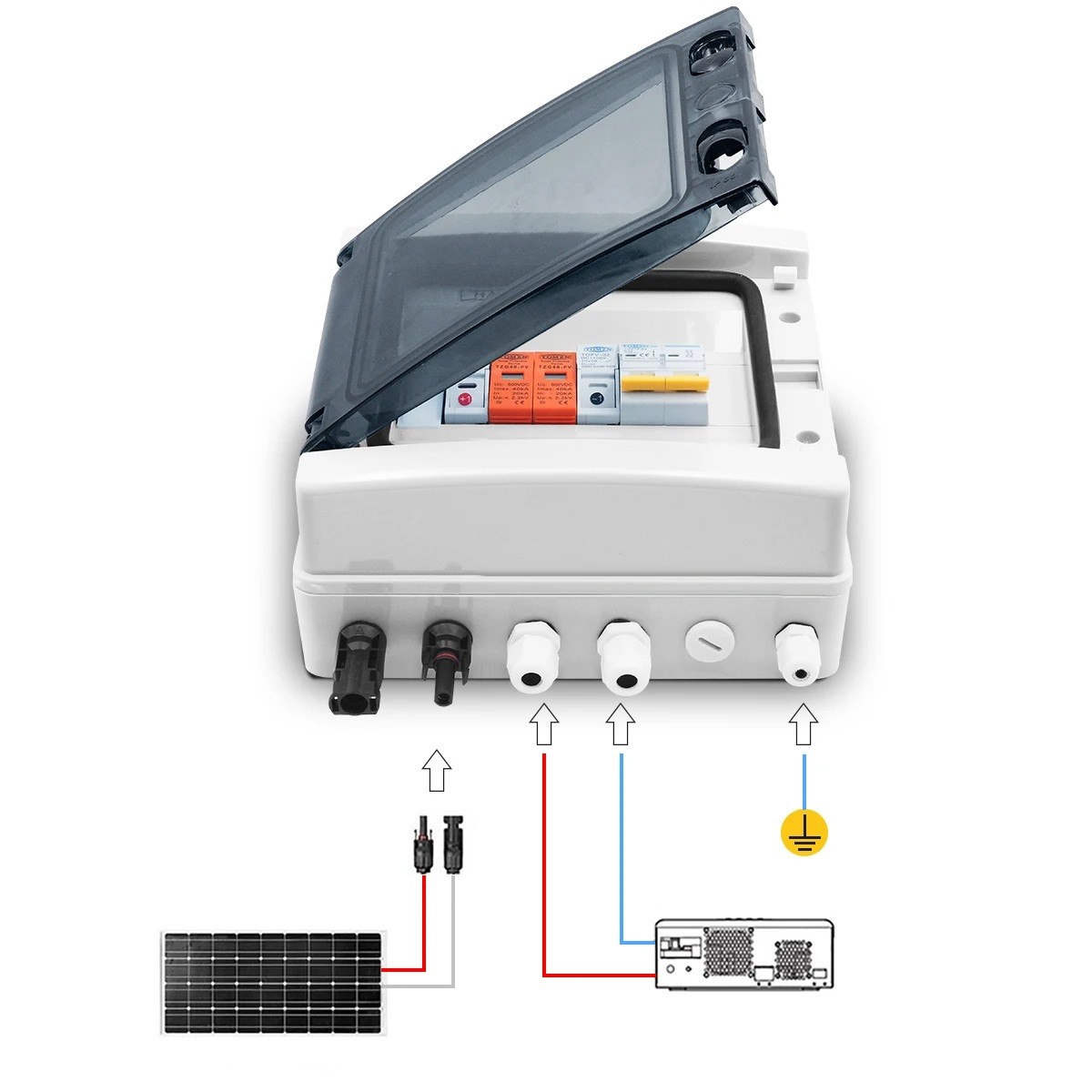

- Package contents: 1 pcs set – PV panel combiner + fuse + circuit breaker 20 A DC + SPD 600 V
This photovoltaic combiner is an ideal choice for those who require a safe connection of PV panels while ensuring a high level of protection for the entire system. The integrated protective elements ensure a long lifespan for the solar installation by protecting against overload or surges. The robust construction with an IP65 rating allows for use even in demanding outdoor conditions, guaranteeing reliable operation throughout the year. Compact dimensions allow for quick assembly, easy maintenance, and stable cable management. Protective elements such as the 20 A DC circuit breaker and SPD 600 V provide assurance that the system will operate safely even in extreme situations. This model meets all modern requirements for reliability, performance, and safety in photovoltaic installations.
