Solar Combiner Box for PV Panels IP65 240 x 210 x 100 mm DC 600 V SPD Fuse and Circuit Breaker 32 A DC Waterproof Protection Box 1 Input 1 Output Outdoor Use

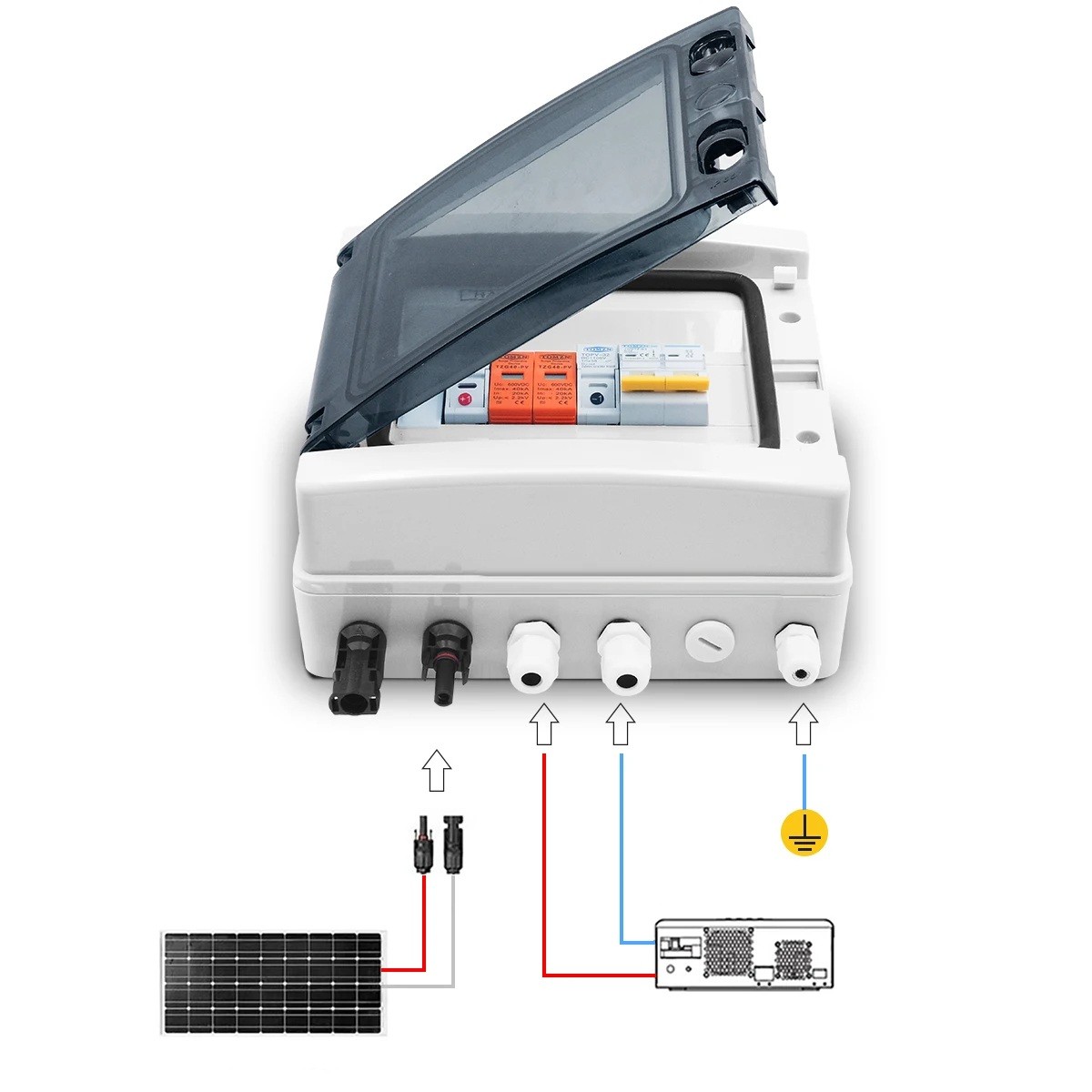

This solar photovoltaic combiner box is designed for the safe connection of one PV input to one stable output, providing complete protection against overload, surge, and lightning strike. The unit includes all key protective elements that are essential for modern photovoltaic systems. Its robust construction with an IP65 rating protects the device from water, dust, snow, and other outdoor influences. An important feature is the 32 A DC circuit breaker, which prevents overload of the direct current circuit. Another crucial protective element is the SPD fuse 600 V, which protects the PV system from surges and the effects of nearby lightning strikes.
The combiner box is suitable for systems with a maximum voltage of 600 V DC, making it compatible with most residential and smaller commercial photovoltaic installations. The dimensions of 240 x 210 x 100 mm allow for clear cable management and safe installation. The device is designed to withstand temperatures of up to 105 °C, ensuring stable operation. Advantages include the 32 A DC circuit breaker, SPD fuse 600 V, IP65 rating, easy connection with 1 input and 1 output, and durable plastic construction.
- IP65 rating – protection against water, dust, snow, and outdoor conditions.
- Integrated SPD fuse 600 V for protection against surges and lightning strikes.
- Circuit breaker 32 A DC for safe disconnection of the direct current circuit in case of overload.

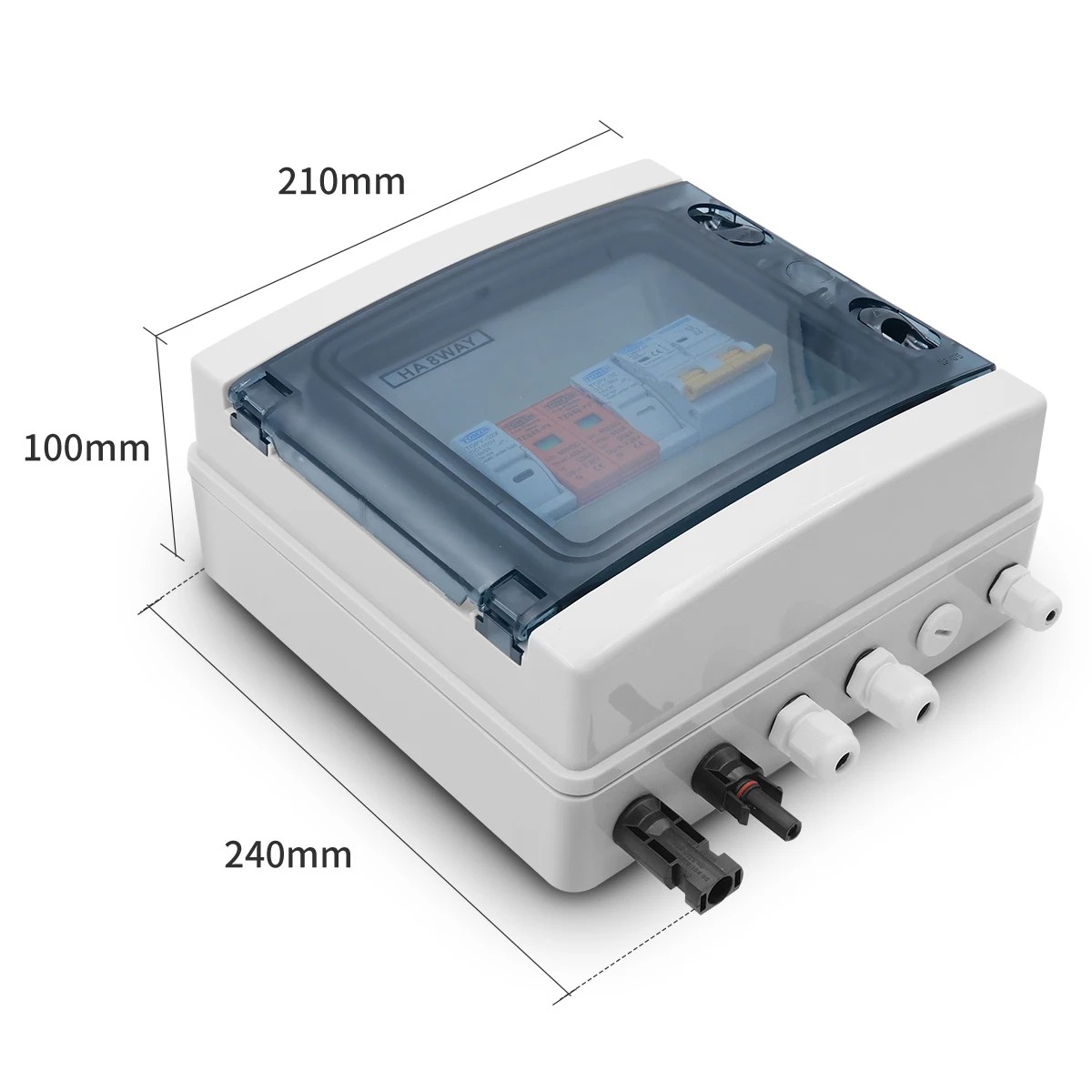

- Dimensions 240 x 210 x 100 mm for easy installation and clear cable management.
- Designed for systems up to 600 V DC.
- Durable plastic construction.
- No temperature regulation, with leakage protection.
- Suitable for both residential and professional PV installations.
- Stable for outdoor use.
- Package contents: 1 pcs set – PV combiner box + SPD fuse 600 V + circuit breaker 32 A DC
This photovoltaic combiner box provides a complete solution for the safe connection of solar panels while protecting the entire system from surges and overloads. The robust construction with an IP65 rating ensures long life and stable operation even in demanding outdoor conditions. Compact dimensions offer easy installation and clear cable management, significantly easing the work for installers. Protective elements such as the 32 A DC circuit breaker and SPD fuse 600 V ensure a high level of safety even in extreme situations. This model is an ideal choice for all modern photovoltaic installations that require reliability, stability, and long life.
