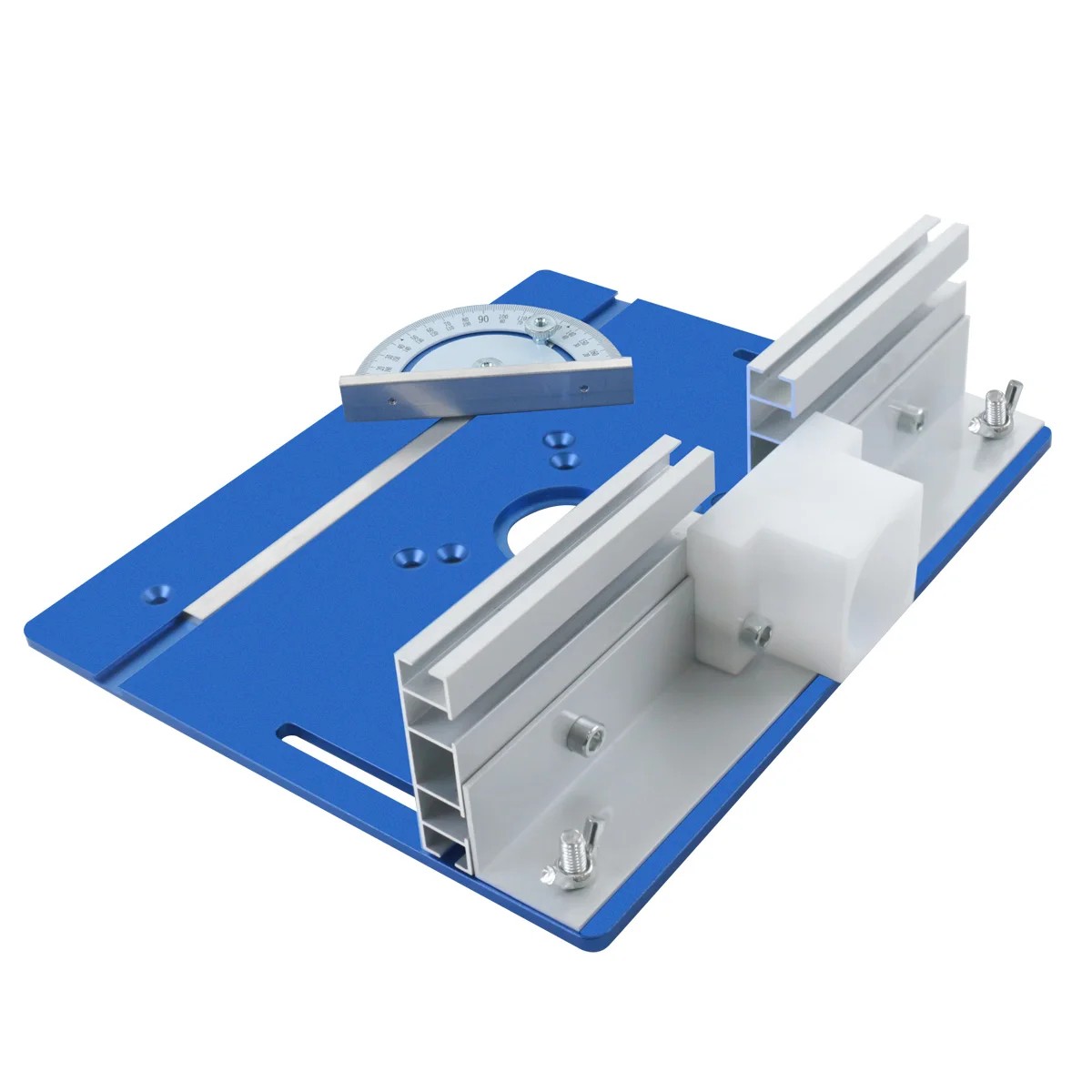

Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC

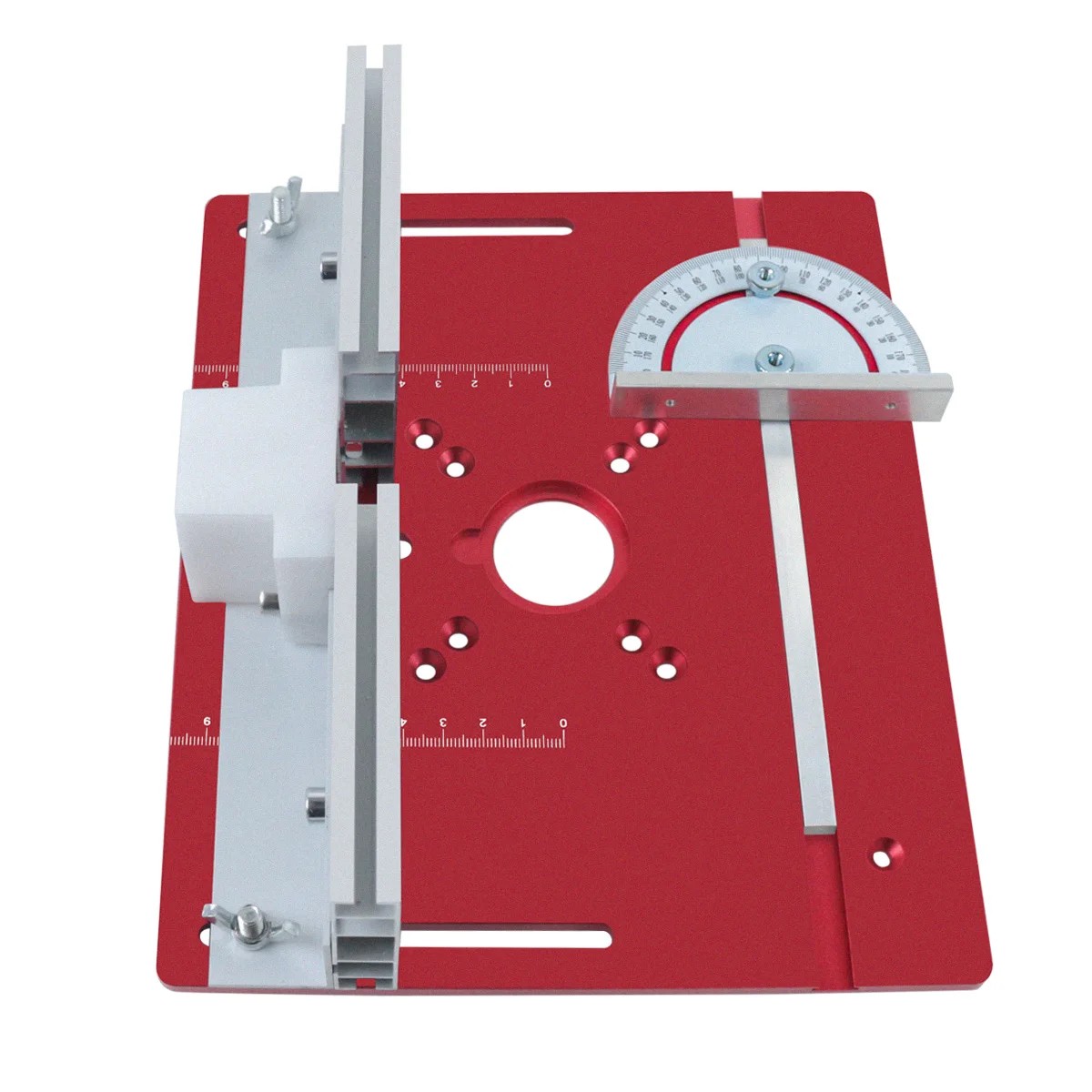

Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC red
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 1
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 2
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 3
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 4
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 5
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 6
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 7
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 8
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 9
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 10
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 11
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 12
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 13
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 14
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 15
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 16
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 17
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 18
Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC 19

Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC

Complete solution for precise workpiece guidance and convenient adjustment of the router in the table for cleaner and repeatable results. Full description
In stock
Colour:
€115.68
Overview

Set for Milling Table 240 x 200 x 5 mm Insert Plate with Guide and Protractor Router Lift Height Adjustment 51 mm CNC

This milling table set is designed for anyone looking to enhance precision, comfort, and safety when working with a router in a table setup. In one assembly, you receive an insert plate with material guidance as well as a lifting mechanism for smooth height adjustment of the router without lengthy setups. Thanks to its sturdy construction, stability during operation is improved and unwanted vibrations are reduced, resulting in a cleaner surface and more accurate repetition of the same settings. The set is suitable for grooving, edge beveling, profiling, and joint making, where precise depth and workpiece guidance are important. You will appreciate it in your home workshop as well as during frequent work, saving time and increasing control over the results.

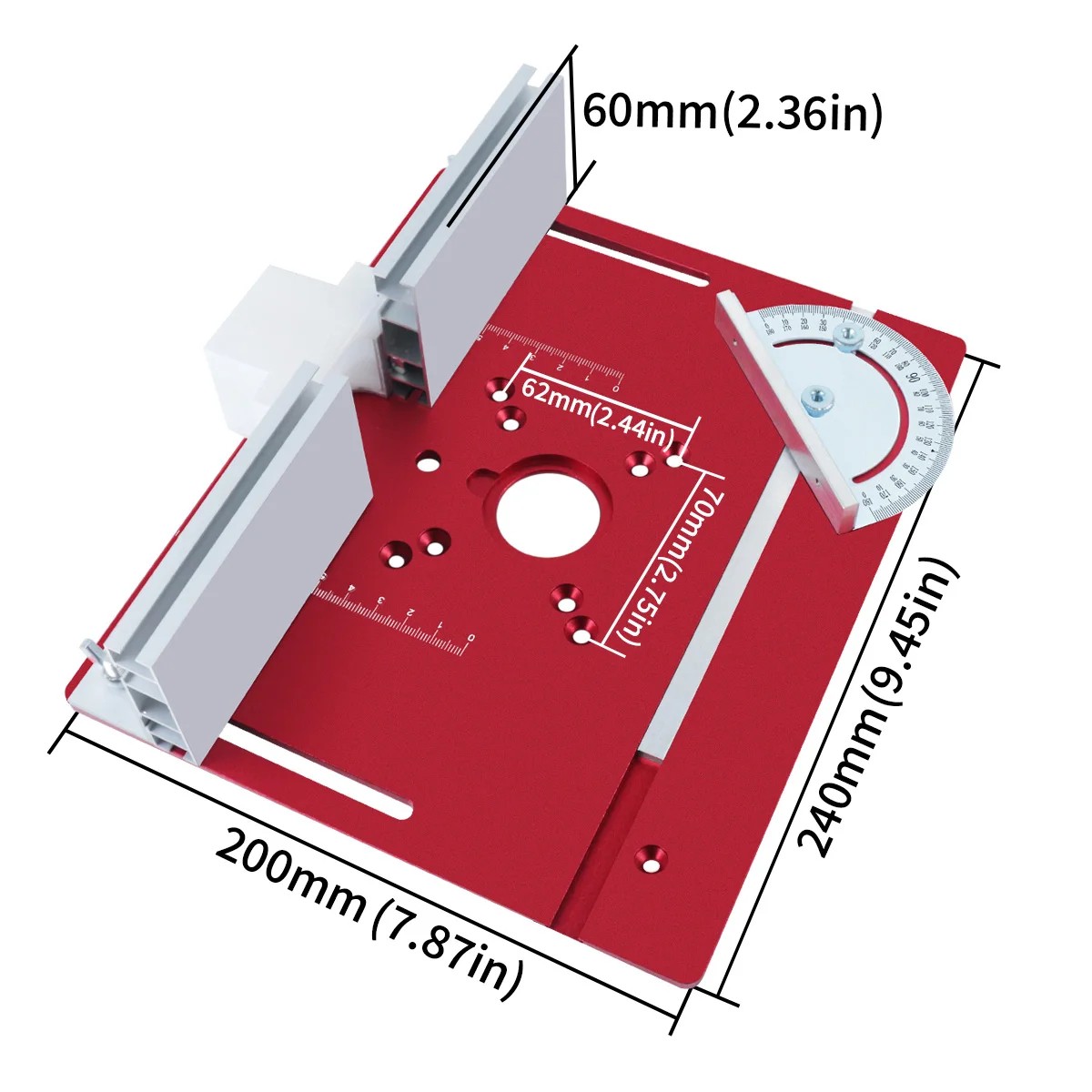

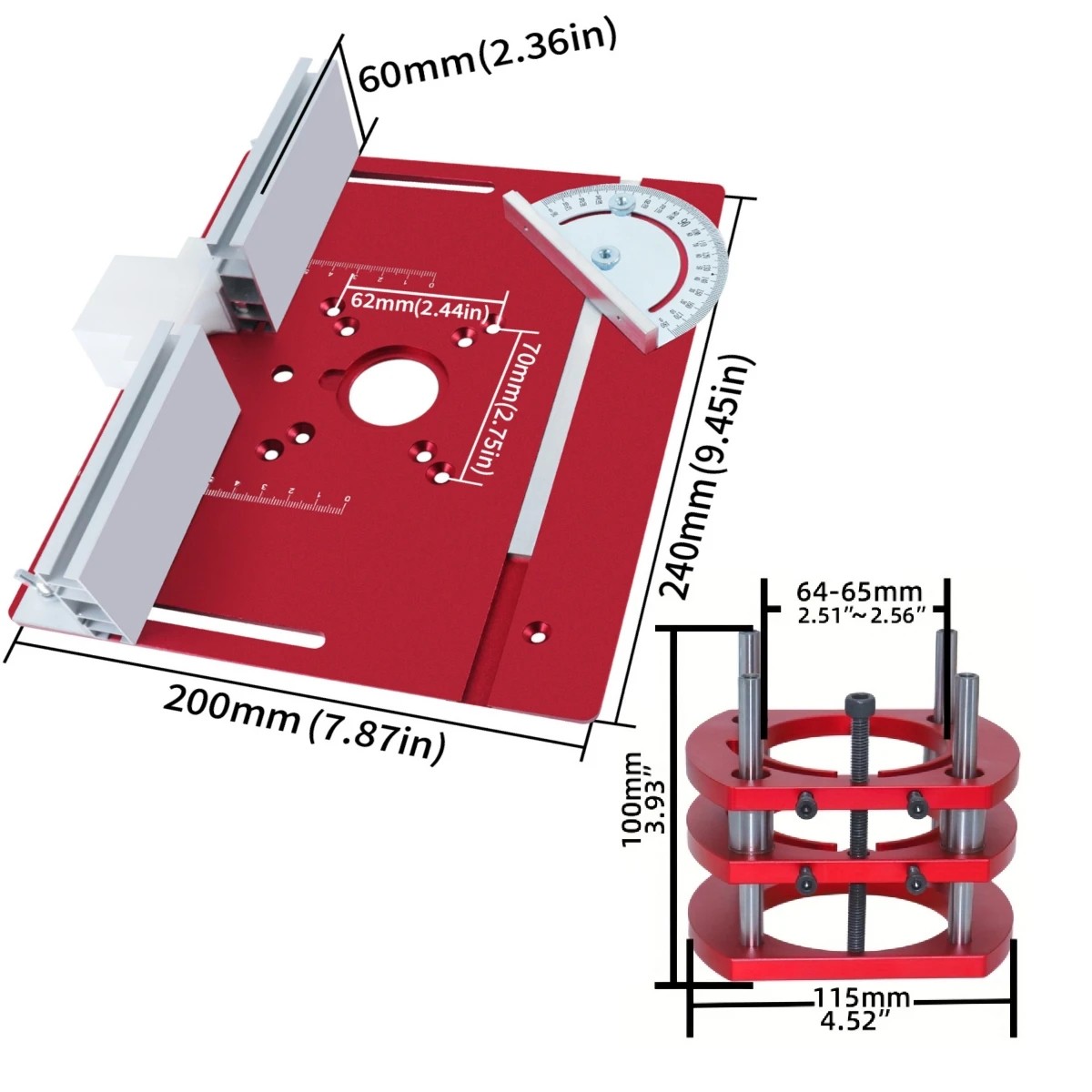

The insert plate measures 240 x 200 x 5 mm and is ready for installation into a worktop or milling table. The mounting holes with a pitch of 62 x 70 mm facilitate the attachment of compatible machines and accessories. The lifting mechanism allows fine adjustment and has a maximum lift of 51 mm, so you can comfortably fine-tune the milling height even during repeated operations. The construction is designed for motors with a diameter of 64–65 mm, which is a common size for many routers. The material is specified as aluminium alloy, contributing to precision and long life during regular workshop use.

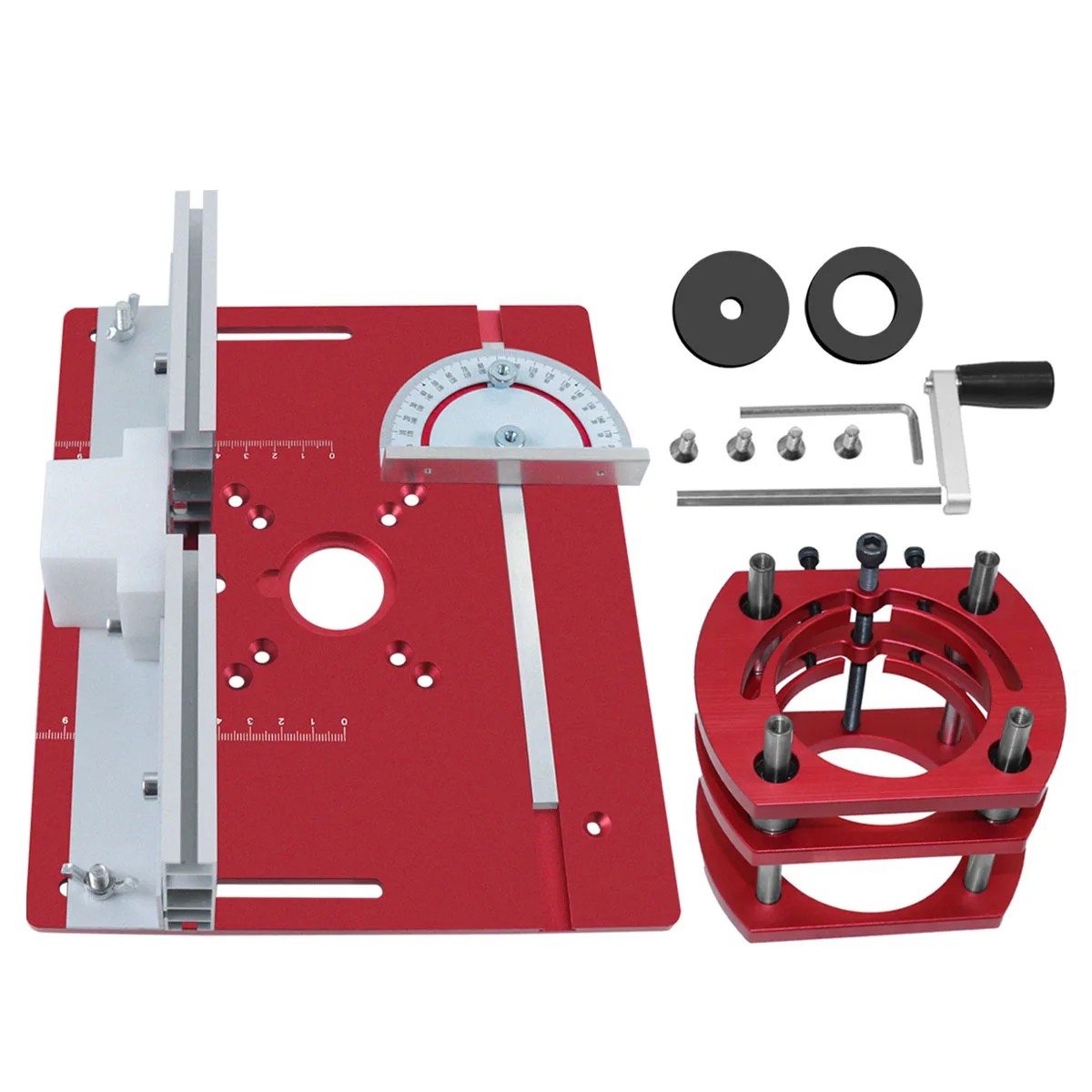

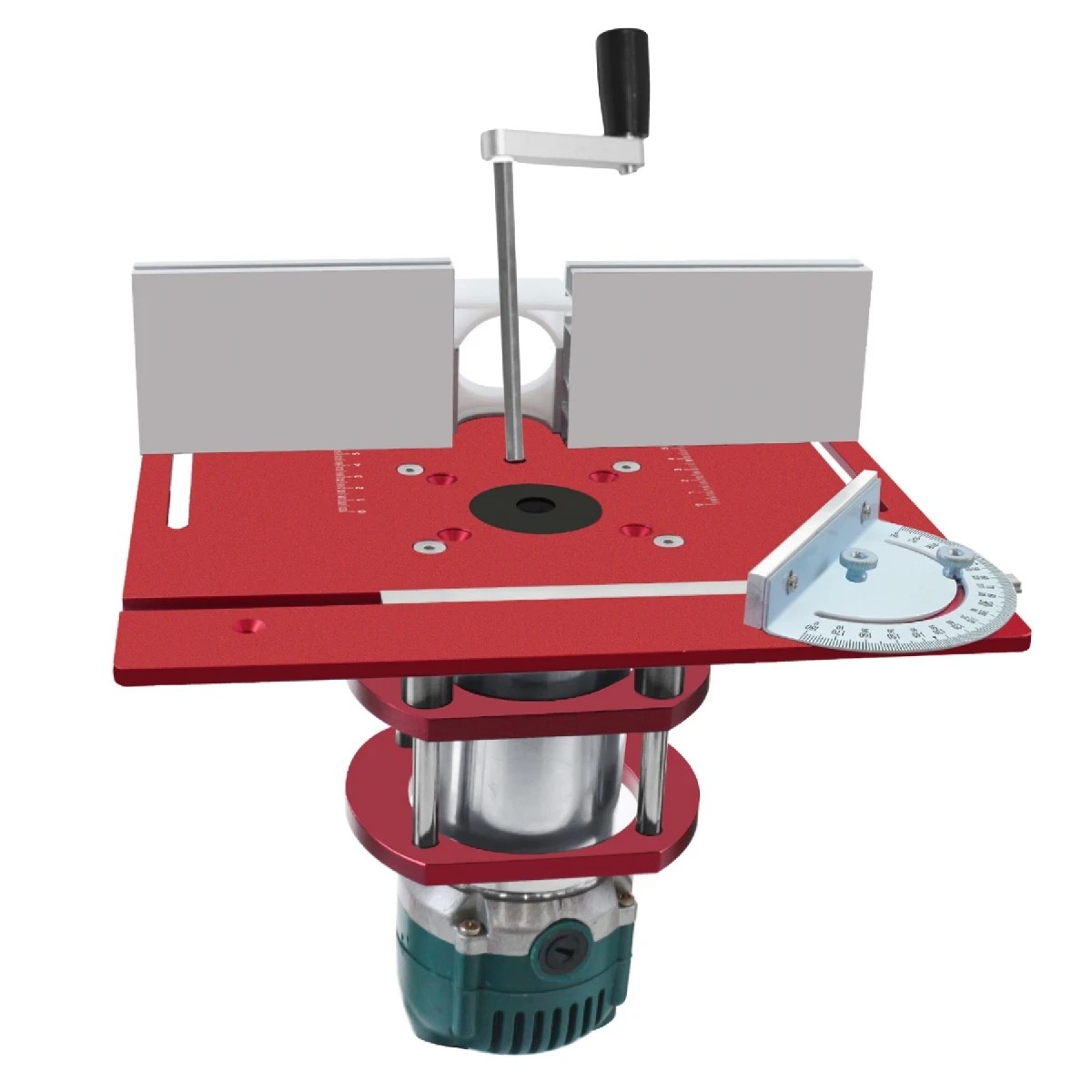

  • Complete assembly for milling table for stable mounting and precise work

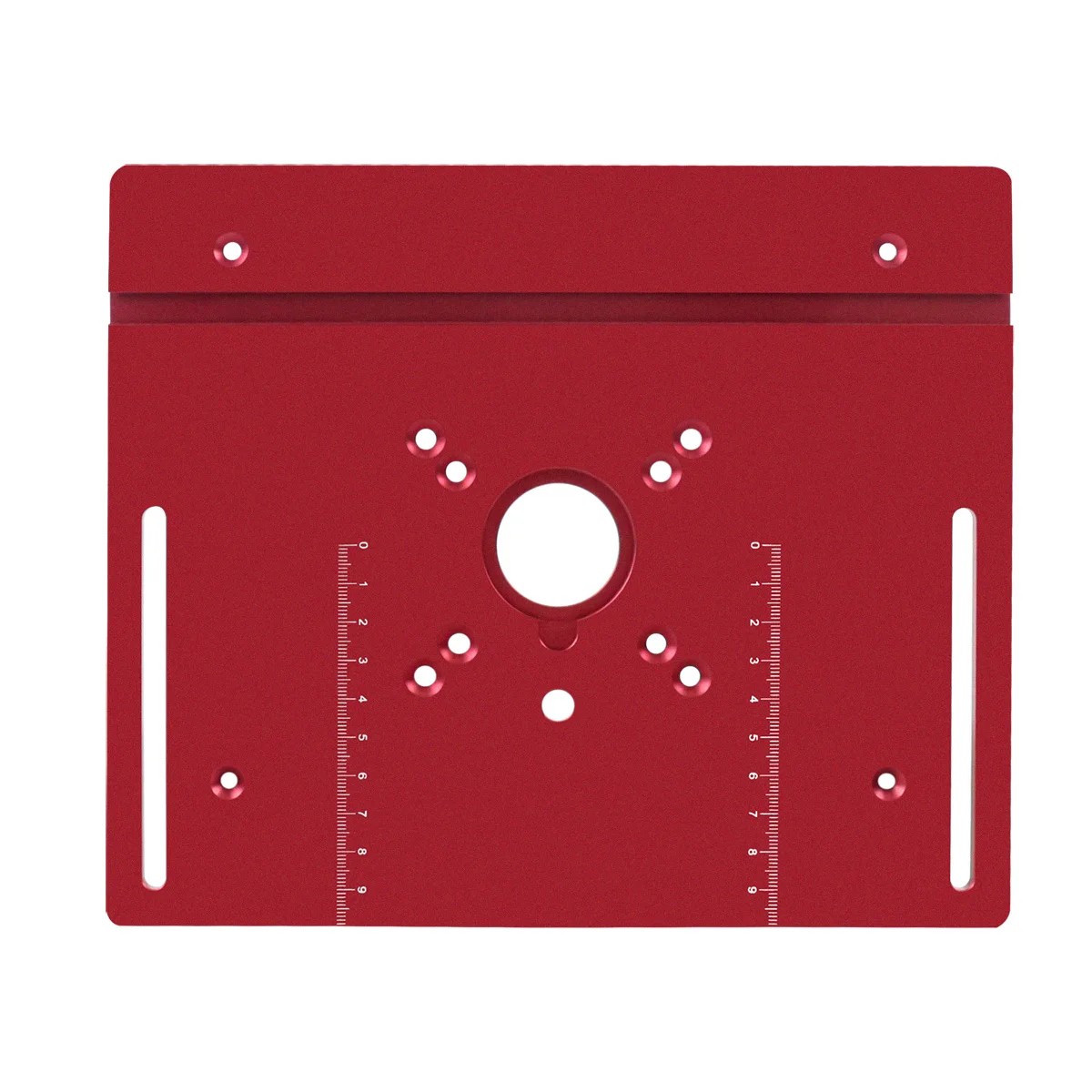

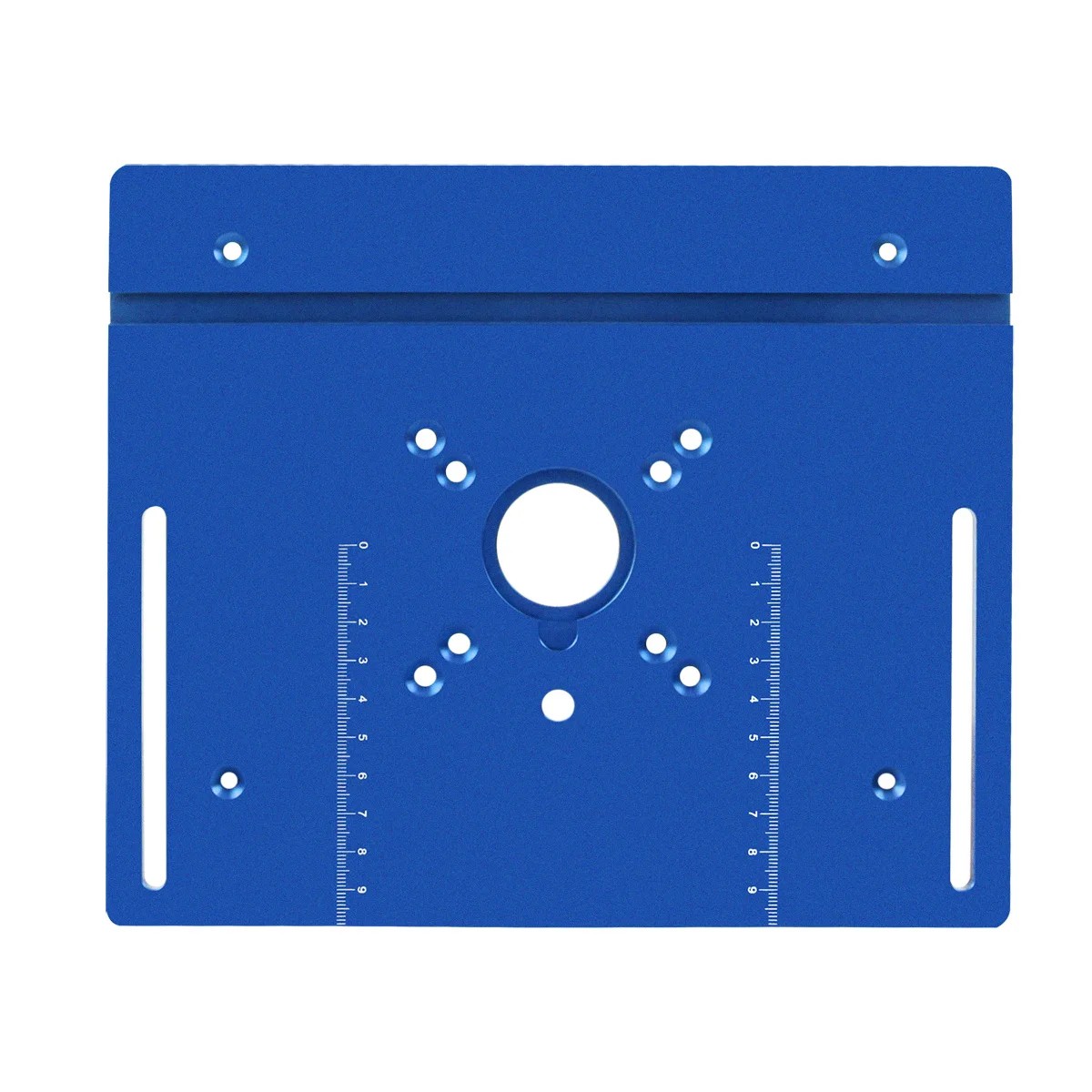

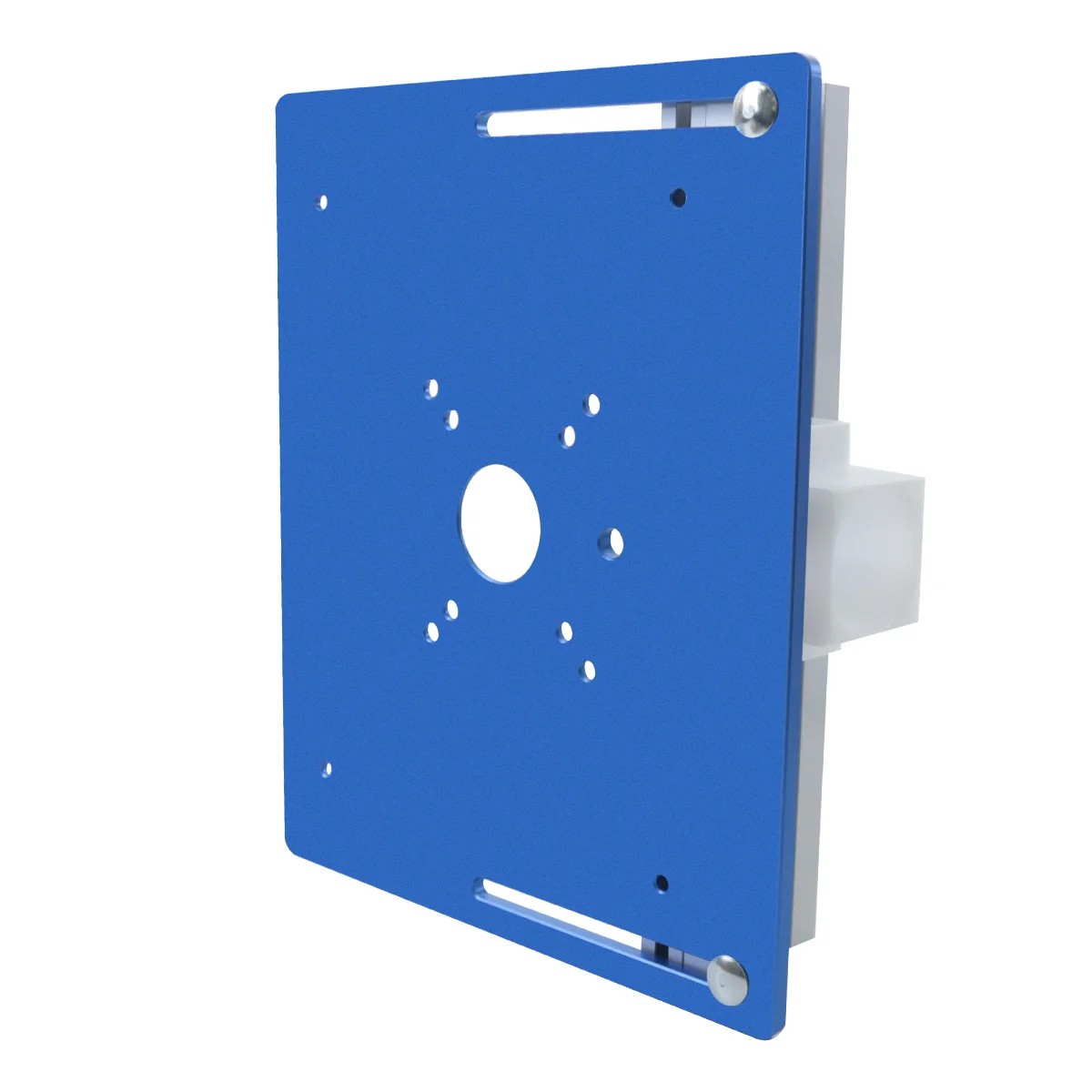

  • Insert plate 240 x 200 x 5 mm suitable for recessing into the work surface

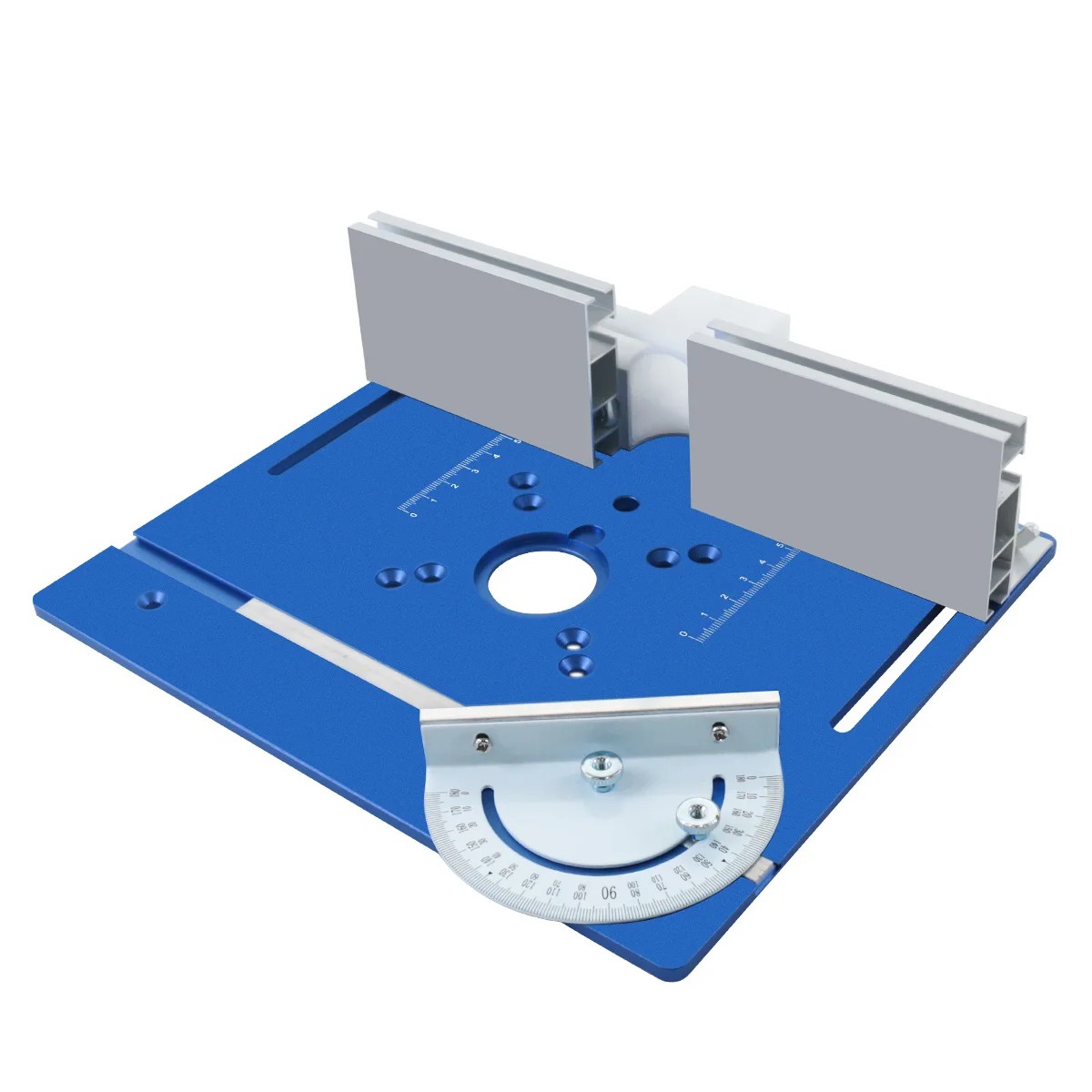

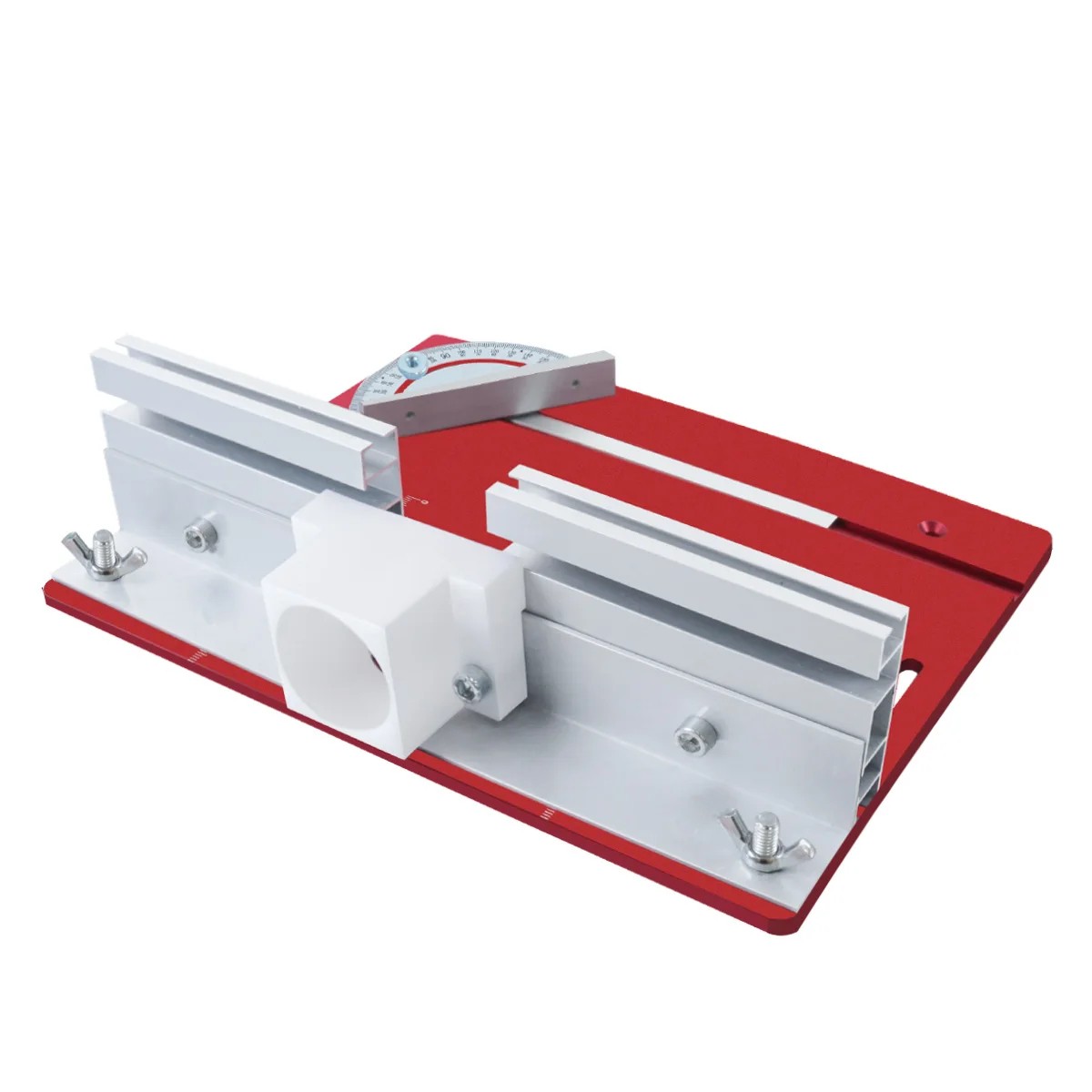

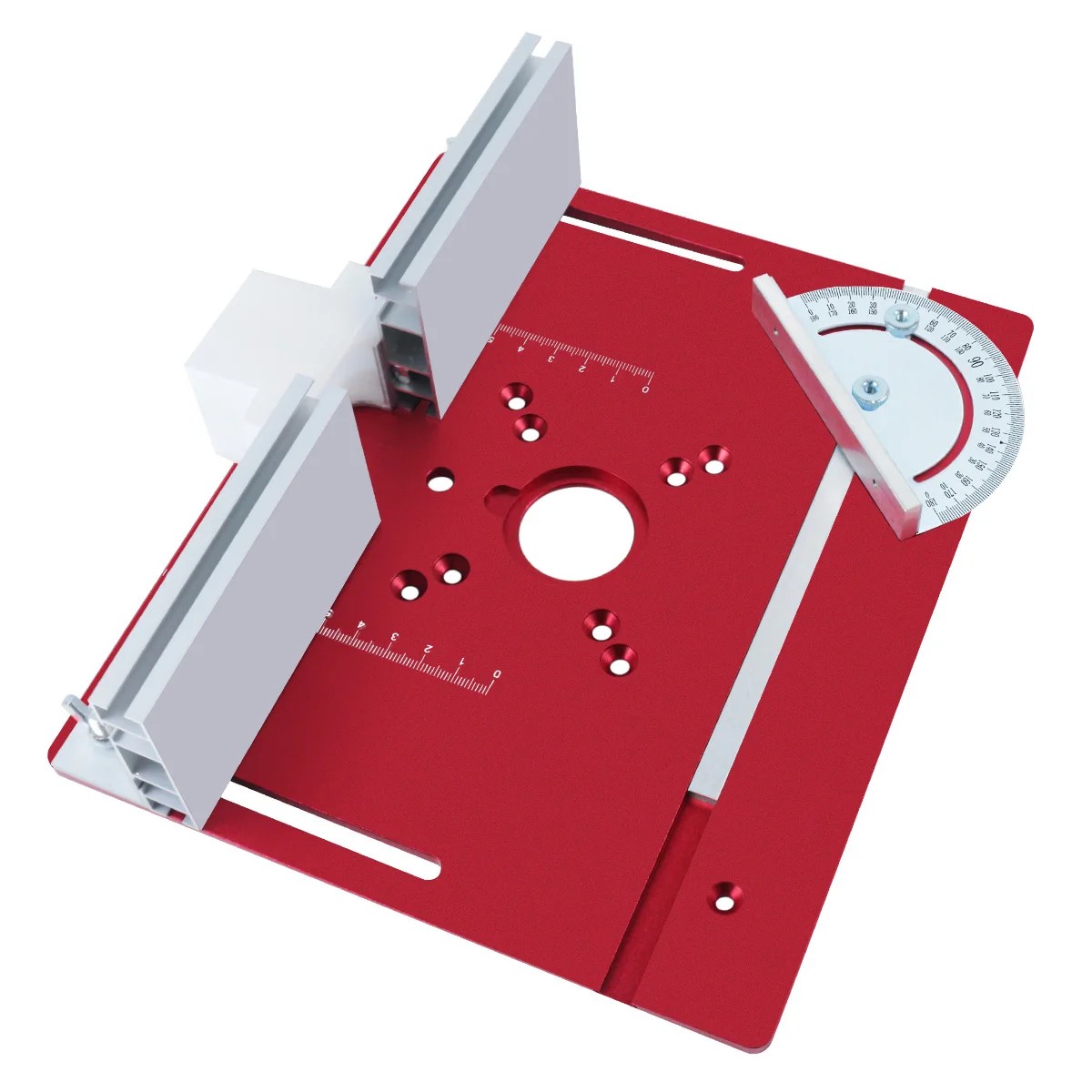

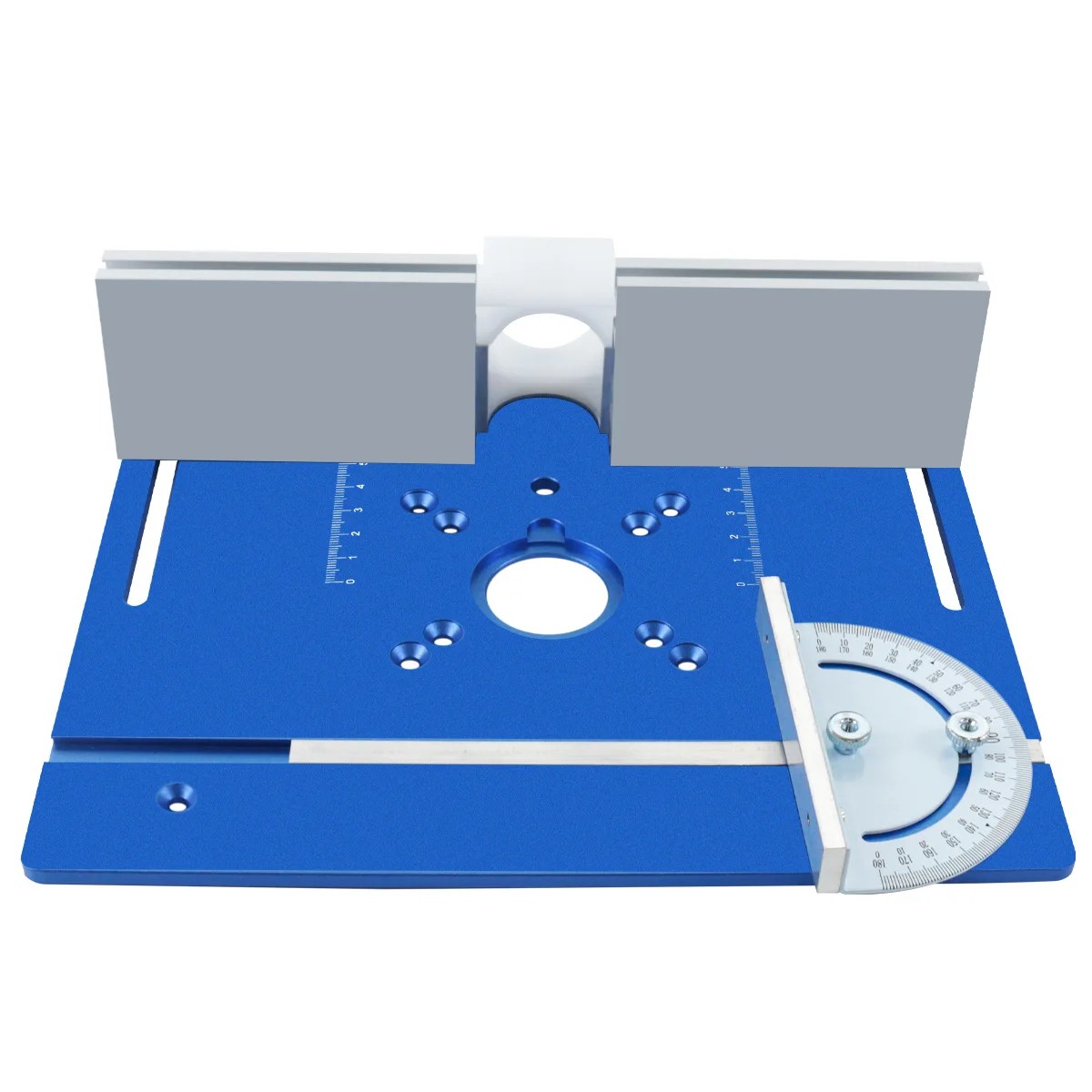

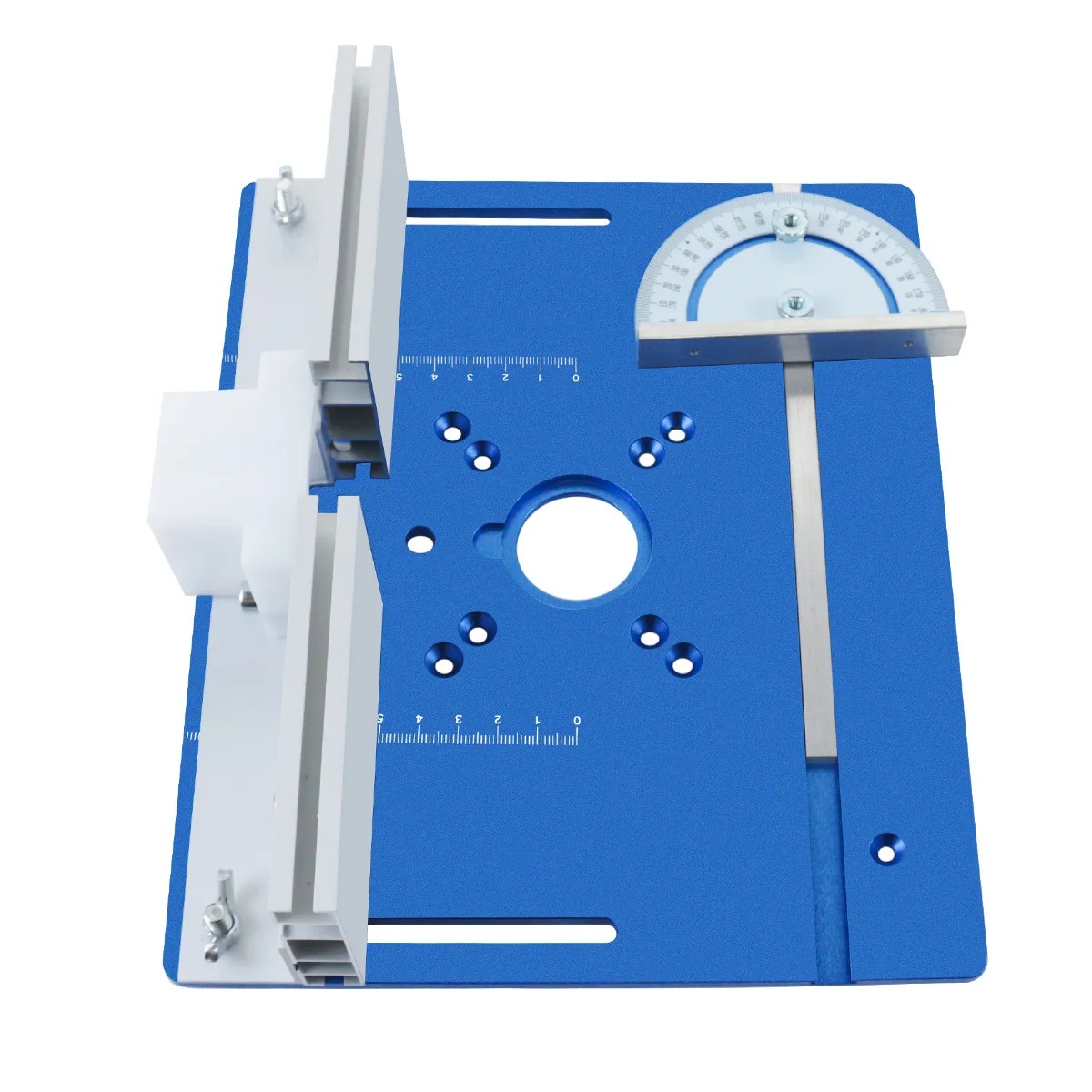

  • Guide with protractor for precise material guidance and setting control

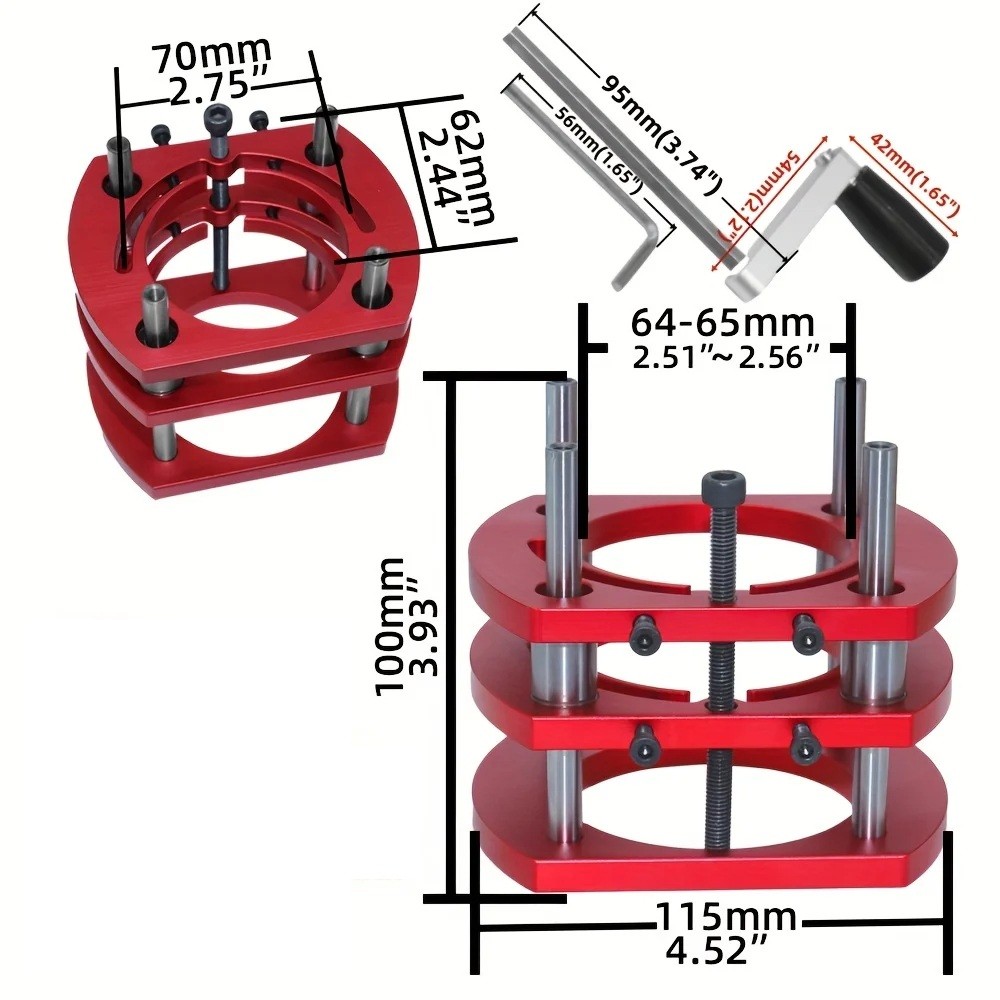

  • Hole pitch 62 x 70 mm for easier fastening and installation

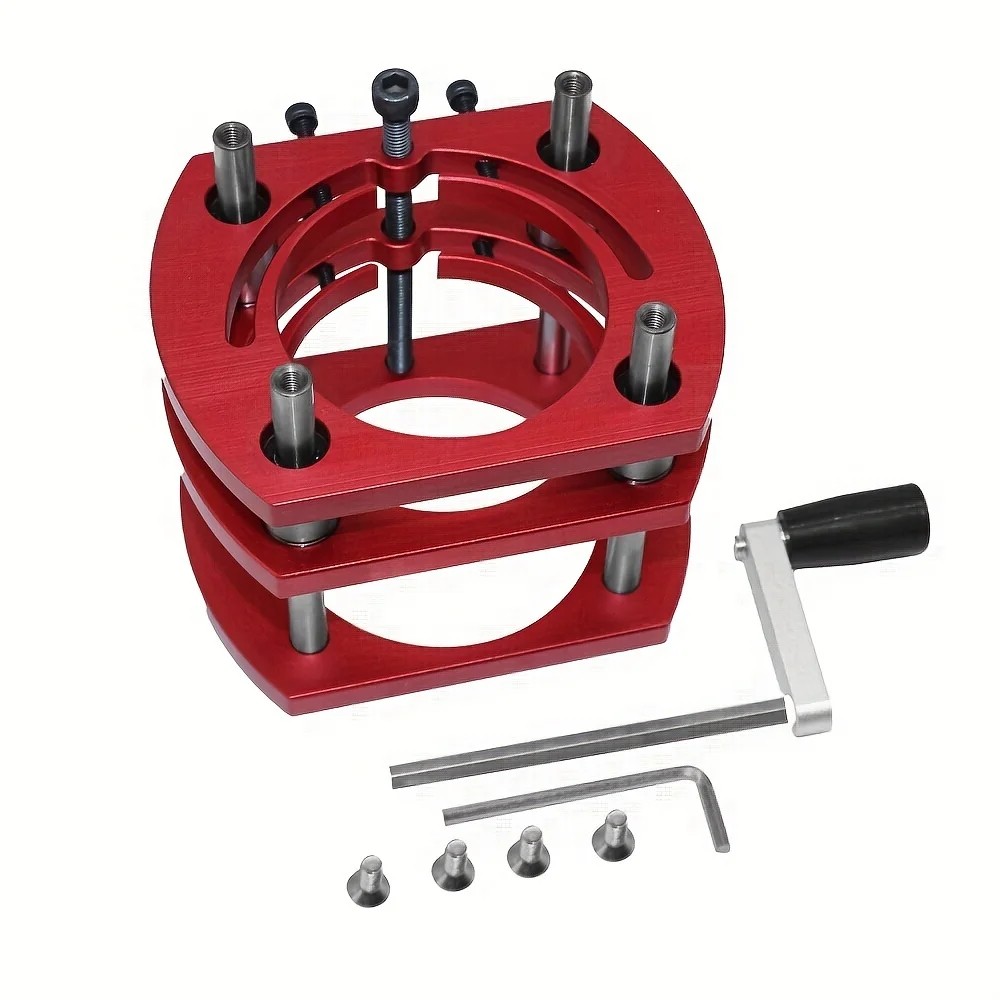

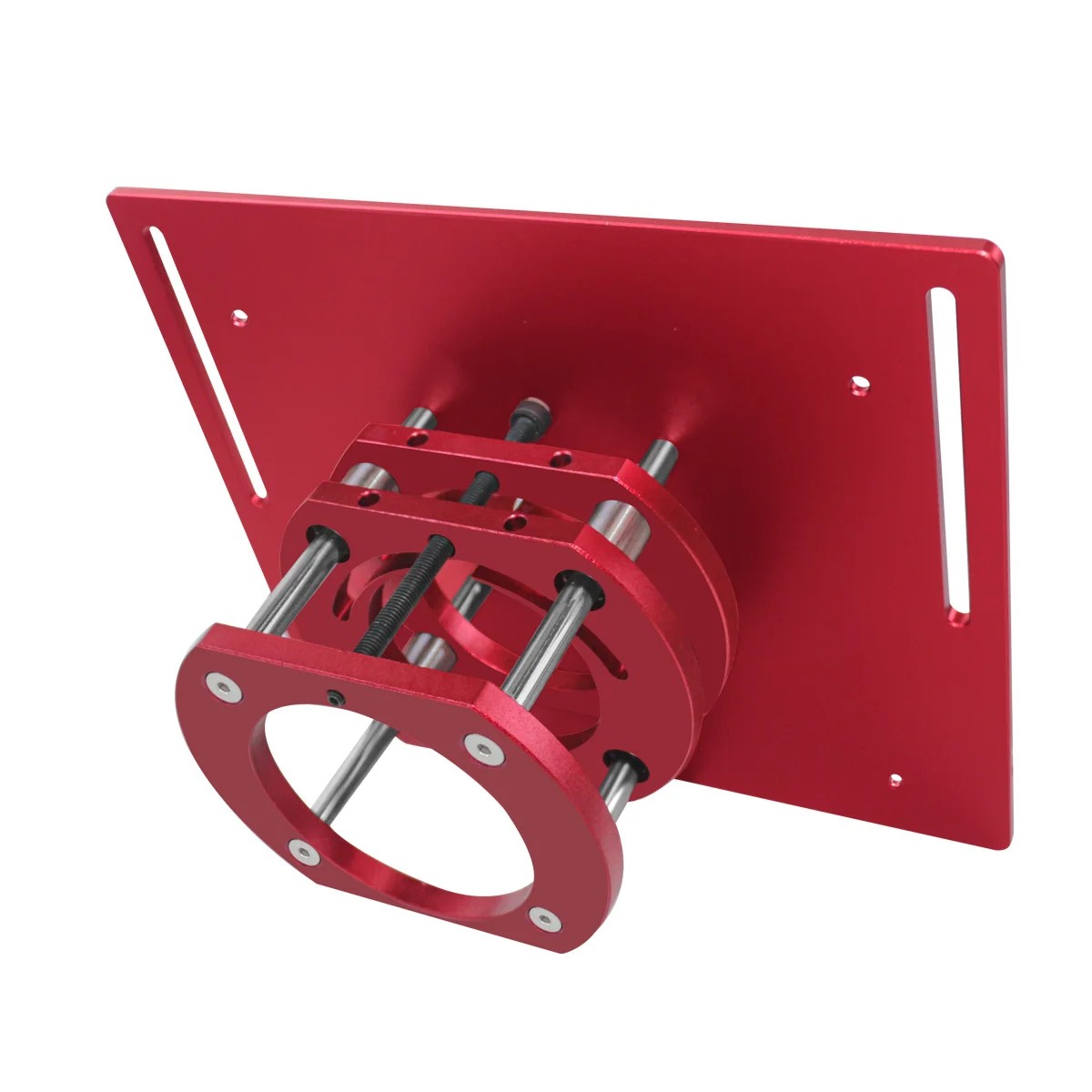

  • Lifting mechanism with a lift of 51 mm for smooth height adjustment of the router
  • Compatibility with motor diameter 64–65 mm according to specified parameters
  • Faster depth adjustment for repeated work
  • Suitable for grooves, edges, profiles, and precise joints in machining

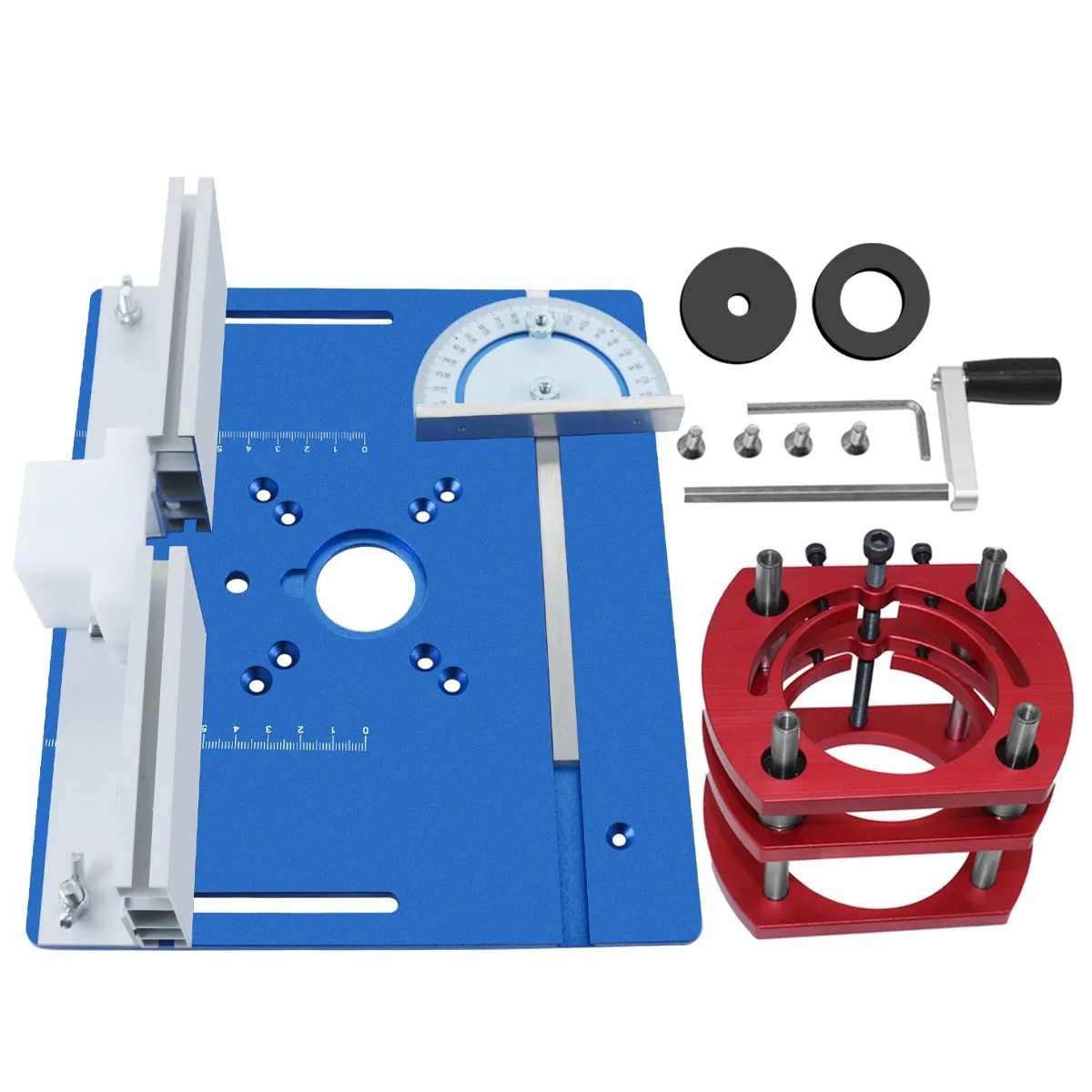

  • Package contents: 1x set

Recommended installation procedure: first, mark the hole in the table according to the size of the plate and prepare the recess so that the plate is flush with the surface. Then, secure the insert plate into the table and check that it is level and free of play. Next, mount the router and adjust the lifting mechanism so that the movement is smooth and without jamming. When working, use the guide for repeatable feed and the protractor for precise angular adjustments as needed. Before each use, check the tightness of the joints and perform a test cut on a scrap piece of material to ensure the settings match the desired depth and result.
